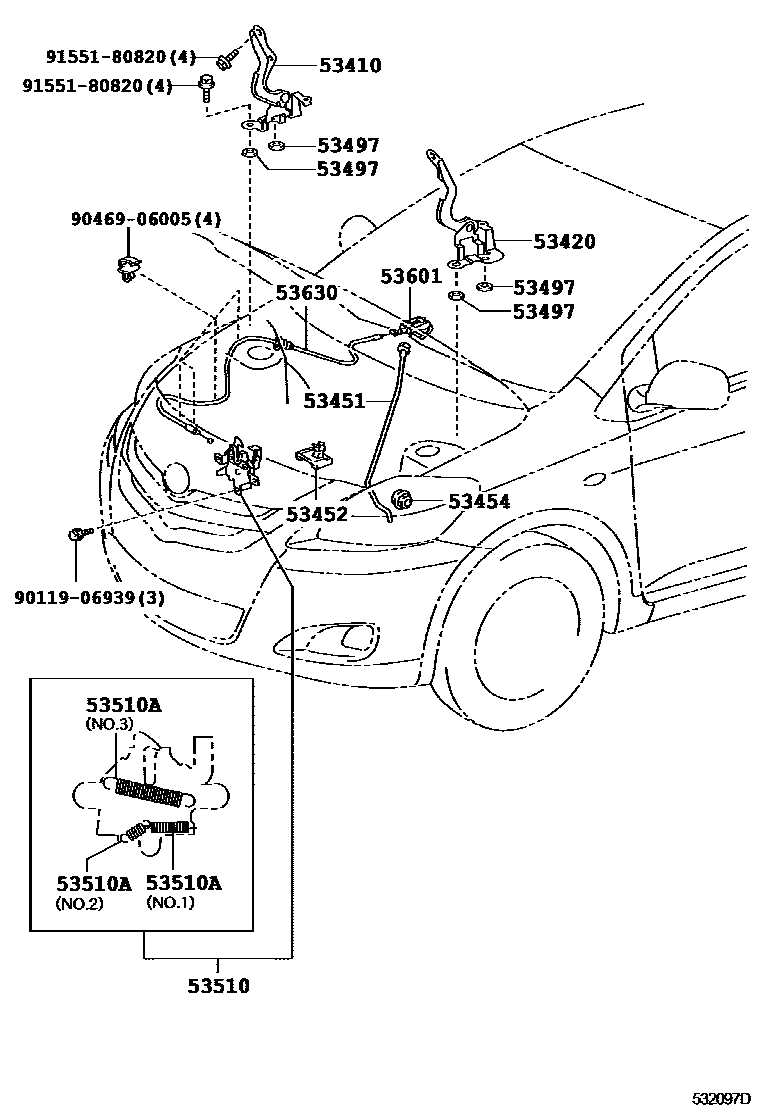

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-52240iNCP9#200601-200808

53420HINGE ASSY, HOOD, LH

main53420-52240iNCP9#200808-201607

53451ROD, HOOD SUPPORT

main53440-52150iNCP9#200601-200808

53452HOLDER, HOOD STAY

main53452-52010iNCP9#200601-200808

53454CLIP, HOOD SUPPORT ROD

main53454-52040iNCP9#200808

53497PAD, HOOD HINGE, NO.1

main53497-10020×4iNCP9#200601-200808

T=1.5

main53497-42010×4iNCP9#200601-200808

T=0.5

53510LOCK ASSY, HOOD

main53510-52350iNCP9#..RHD200601-200808

main53510-52360iNCP9#..LHD200808-201307

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iNCP9#200601-200808

WD=0.9,CW=21,NO.1

main90506-12063iNCP9#200808

WD=1.2,CW=8.5,NO.2

main90506-16077iNCP9#200808

WD=1.6,CW=12,NO.3

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B3iNCP9#200601-200808

DK.GRAY,TRIM1#

main53601-52010-C0iNCP9#201011-201607

BLACK,TRIM1#

main53601-52010-E3iNCP9#201011-201607

ASH BROWN,TRIM4#

main53601-52010-E4iNCP9#200601-200808

GREGE,TRIM4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52110iNCP9#200601-200808

9011906939

main90119-06939

9046906005

main90469-06005

9155180820

main91551-80820

13 parts on this diagram · 2 diagrams in section
