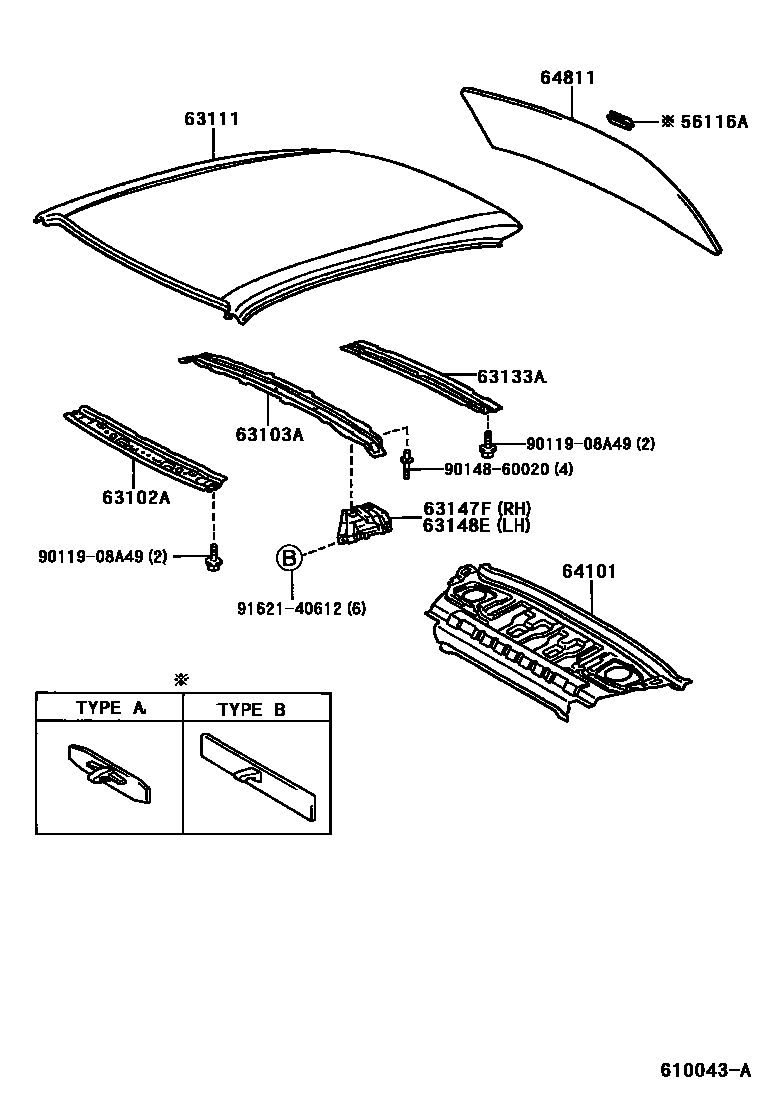

ROOF PANEL & BACK WINDOW GLASS

56116ASPACER, WINDSHIELD GLASS

main56115-33040×2iEL5#199810

TYPE A:REFER TO ILLUSTRATION

main56116-16050×2iEL5#199409-199512

main56116-16060×2iEL5#199512-199810

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63132-16080iEL5#199409

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-16010iEL5#199409

63111PANEL, ROOF

main63111-16270iEL5#199409

63133AFRAME, BACK WINDOW, UPPER

main63133-16060iEL5#199409

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-16030iEL5#199409

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63148-16030iEL5#199409

64101PANEL SUB-ASSY, UPPER BACK

main64101-16191iEL5#..LHD..GEN199712

W(FOLDING REAR SEAT)

main64101-16200iEL5#199409

64811GLASS, BACK WINDOW

main64811-16360iEL5#199409-199608

*TEM,T=3.5,CLEAR

main64811-16390iEL5#199409-199608

*EHT,T=3.5,CLEAR

main64811-16460iEL5#199409-199508

*TEM,T=3.5,BLUE

main64811-16470iEL5#199409-199508

*EHTT,T=3.5,BLUE

main64811-16530iEL5#199508-199608

*TEM,T=3.5,GREEN

main64811-16531iEL5#199608

*TT,T=3.5,GREEN

main64811-16540iEL5#199508-199608

*EHT,T=3.5,GREEN

main64811-16541iEL5#199608

*EHTT,T=3.5,GREEN

9011908A49

main90119-08A49

9014860020

main90148-60020

9162140612

main91621-40612

12 parts on this diagram · 1 diagram in section
