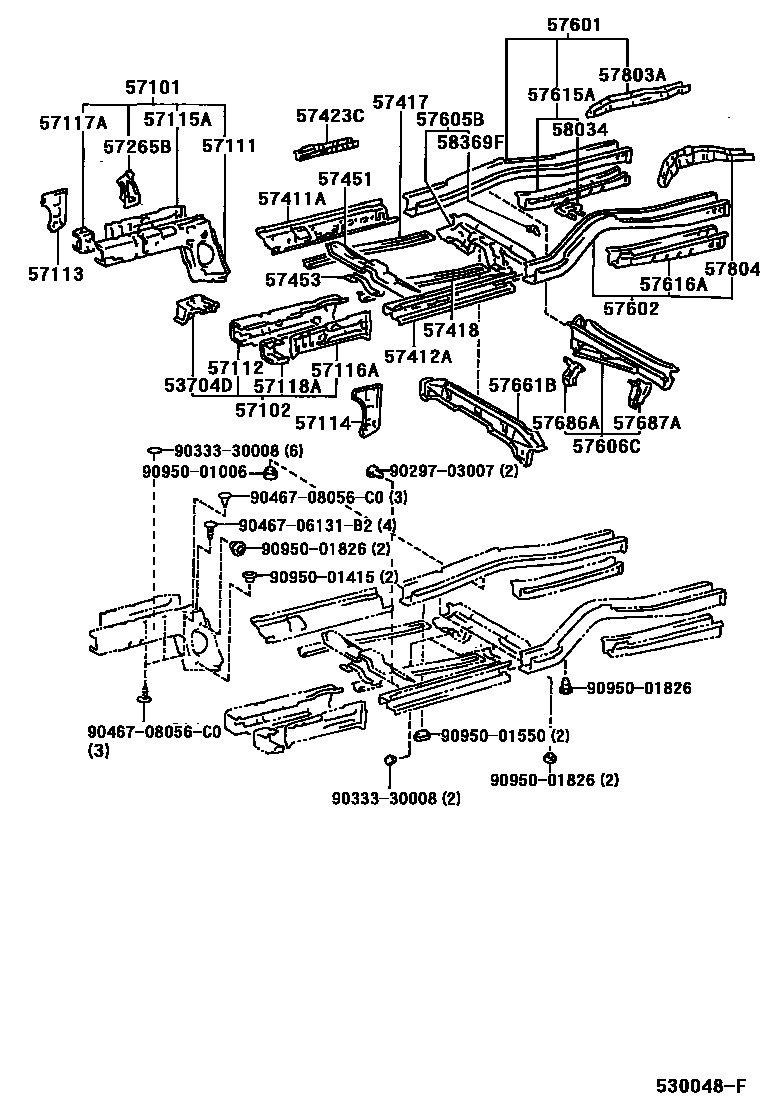

FLOOR SIDE MEMBER
53704DSUPPORT SUB-ASSY, BATTERY, LH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117AREINFORCEMENT, FRONT BUMPER MOUNTING
57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH
57265BBRACKET, ENGINE MOUNTING, RH
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57423CREINFORCEMENT, FRONT FLOOR UNDER, INNER
57451MEMBER, FRONT FLOOR CROSS
57453MEMBER, FRONT FLOOR CROSS, NO.3
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
57661BMEMBER, REAR FLOOR CROSS, FRONT
57686ABRACKET, FUEL TANK MOUNTING, REAR RH
57687ABRACKET, FUEL TANK MOUNTING, REAR LH
57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH
57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH
58034BRACKET SUB-ASSY, EXHAUST PIPE SUPPORT, REAR
58369FBRACKET, FUEL TUBE, NO.3
9029703007
main90297-03007
9033330008
main90333-30008
9046706131B2
main90467-06131B2
9046708056C0
main90467-08056C0
9095001006
main90950-01006
9095001415
main90950-01415
9095001550
main90950-01550
9095001826
main90950-01826
40 parts on this diagram · 1 diagram in section
