HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

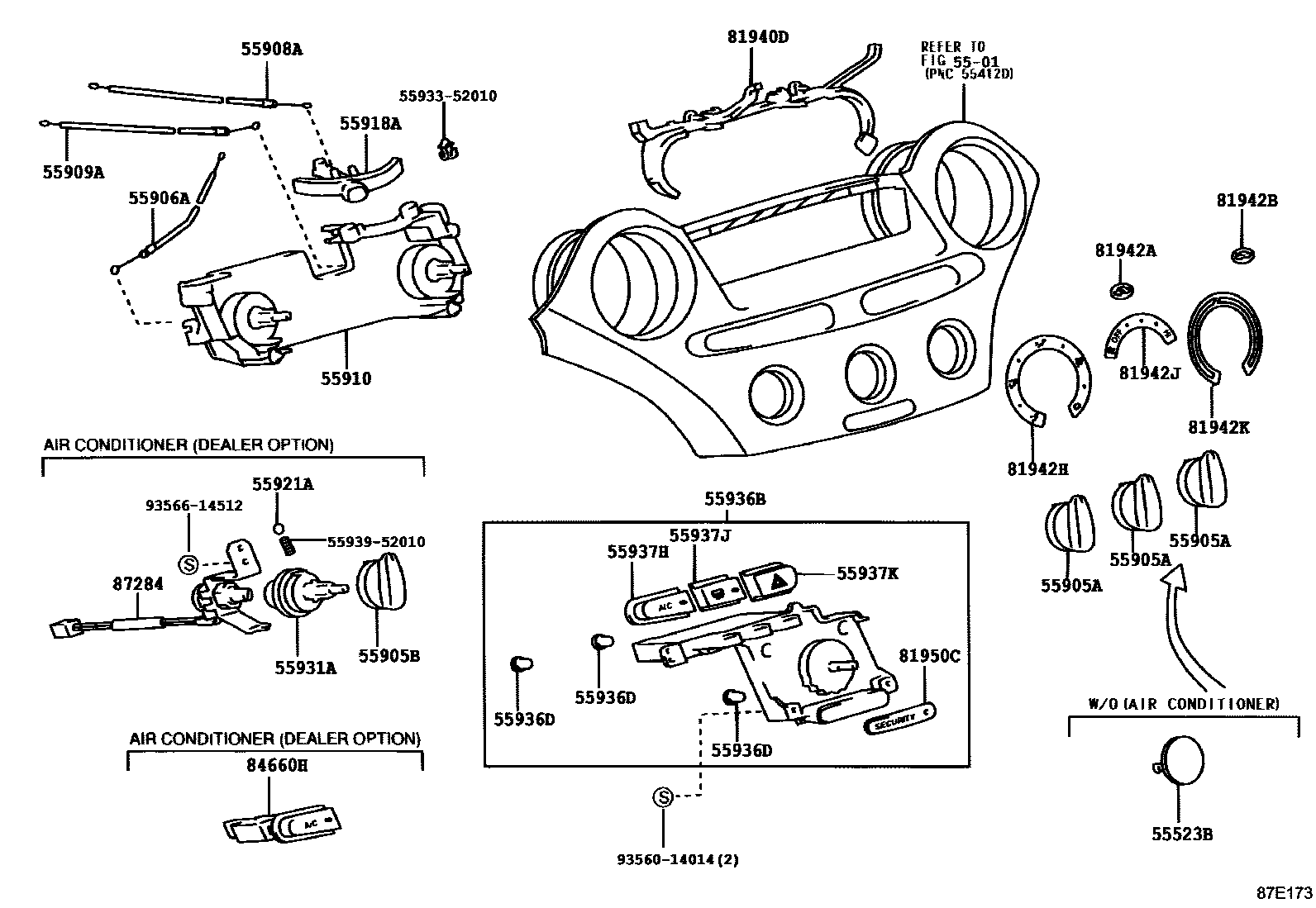

Parts diagram
5501INSTRUMENT PANEL & GLOVE COMPARTMENT
→ Go to FIG 55-01
55523BCOVER, HEATER CONTROL OPENING
main55523-52010i200208-200212
main55523-52010-B0i199908-200208
SHADOW GRAY,TRIM1#
main55523-52010-B1i199908-200208
AMETHYST,TRIM9#
main55523-52010-B2i200212-200512
DK.GRAY,TRIM1#
main55523-52030-B0i200212-200512
DK.GRAY,TRIM1#
main55523-52030-E0i200208-200512
SANDAL WOOD,TRIM4#
main55523-52040i200208-200212
55905AKNOB, HEATER CONTROL
main55905-52010×2i199908-200208
W(AIR CONDITIONER)
main55905-52030×3i200208-200512
SILVER PAINTED
main55905-52080×2i200208-200512
W(HEATER)
main55905-52090×3i200208-200512
W(HEATER),SILVER PAINTED
55905BKNOB, HEATER CONTROL, NO.2
main55905-52010i200208-200512
DEALER OPTION
main55905-52080i200208-200404
main55905-52090i200208-200512
DEALER OPTION,SILVER PAINTED
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
main55906-52010i199908-200208
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
main55908-52010i200208
main55908-52020i199908-200208
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
main55909-52010i199908-200208
main55909-52020i199908-200208
55910CONTROL ASSY, HEATER OR BOOST VENTILATOR
main55910-52010i199908-200208
W(HEATER)
main55910-52020i200208
W(AIR CONDITIONER)
main55910-52030i200208
W(HEATER)
main55910-52040i200208
W(AIR CONDITIONER)
main55910-52060i199908-200208
main55910-52070i200208
55918ALEVER, AIR INLET DAMPER CONTROL
main55918-52010i199908-200112
main55918-52060i200112-200208
main55918-52070i200208
55921ARETAINER, HEATER CONTROL
main55921-52010i199908-200208
55931ASHAFT, HEATER CONTROL LEVER
main55931-52010i199908-200208
55936BSWITCH, CENTER CLUSTER MODULE
main84010-52020i199908-200208
W(AIR CONDITIONER & REAR WINDOW DEFOGGER)
main84010-52040i200208
W(REAR WINDOW DEFOGGER)
main84010-52060i200208
W(AIR CONDITIONER)
main84010-52080i200208
main84010-52100i199908-200208
W(AIR CONDITIONER & ENGINE IMMOBILIZER & REAR WINDOW DEFOGGER)
main84010-52120i199908-200208
W(ENGINE IMMOBILIZER SYSTEM & REAR WINDOW DEFOGGER)
main84010-52130i200208
W(AIR CONDITIONER & ENGINE IMMOBILIZER)
main84010-52140i200208
W(ENGINE IMMOBILIZER SYSTEM)
main84010-52210i200208
W(ENGINE IMMOBILIZER SYSTEM)
main84010-52220i200208
W(AIR CONDITIONER & ENGINE IMMOBILIZER)
main84010-52230i199908-200208
W(ENGINE IMMOBILIZER SYSTEM & REAR WINDOW DEFOGGER)
main84010-52240i199908-200208
W(AIR CONDITIONER & ENGINE IMMOBILIZER & REAR WINDOW DEFOGGER)
main84010-52370i200208
main84010-52380i200208
W(REAR WINDOW DEFOGGER)
main84010-52390i200208
W(AIR CONDITIONER)
main84010-52400i200208
W(AIR CONDITIONER & REAR WINDOW DEFOGGER)
main84010-52410i200208
W(ENGINE IMMOBILIZER SYSTEM)
main84010-52420i200208
W(ENGINE IMMOBILIZER SYSTEM & REAR WINDOW DEFOGGER)
main84010-52430i200208
W(AIR CONDITIONER & ENGINE IMMOBILIZER)
main84010-52440i200208
W(AIR CONDITIONER & ENGINE IMMOBILIZER & REAR WINDOW DEFOGGER)
55936DBLUB, CENTER CLUSTER MODULE SWITCH
main84999-10490i199908-200208
14V 0.84W
main84999-10530×2i200208
14V 1.8W
main90010-01047i199908-200112
14V,1.4W
55937HKNOB, CENTER CLUSTER MODULE, NO.5
main55937-52010i200208
W(AIR CONDITIONER)
main55937-52020i200208
main55937-52260i200208
W(AIR CONDITIONER)
main55937-52300i200208
55937JKNOB, CENTER CLUSTER MODULE, NO.6
main55937-52030i200208
W(REAR WINDOW DEFOGGER)
main55937-52050i199908-200208
main55937-52290i200208
W(AIR CONDITIONER)
main55937-52310i200208
55937KKNOB, CENTER CLUSTER MODULE, NO.7
main55937-52060i199908-200208
main55937-52270i200208
81940DLENS ASSY, HEATER CONTROL
main81940-52020i199908-200208
main81940-52080i200208
81942ASHEET, HEATER CONTROL NAME, NO.1
main81942-52010-B0i199908-200208
SHADOW GRAY,TRIM1#
main81942-52010-B1i199908-200208
AMETHYST,TRIM9#
main81942-52010-B2i200212-200512
DK.GRAY,TRIM1#
main81942-52010-E0i200208-200512
SANDAL WOOD,TRIM4#
81942BSHEET, HEATER CONTROL NAME, NO.2
main81942-52020-B0i199908-200208
SHADOW GRAY,TRIM1#
main81942-52020-B1i199908-200208
AMETHYST,TRIM9#
main81942-52020-B2i200212-200512
DK.GRAY,TRIM1#
main81942-52020-E0i200208-200512
SANDAL WOOD,TRIM4#
81942HSHEET, HEATER CONTROL NAME, NO.3
main81942-52030-B0i199908-200108
W(HEATER),SHADOW GRAY,TRIM1#
main81942-52030-B1i199908-200108
W(HEATER),AMETHYST,TRIM9#
main81942-52070-B0i200208-200212
SHADOW GRAY,TRIM1#
main81942-52070-B1i199908-200208
AMETHYST,TRIM9#
main81942-52070-B2i200212-200512
DK.GRAY,TRIM1#
main81942-52070-E0i200208-200512
SANDAL WOOD,TRIM4#
main81942-52080-B0i200108-200208
W(HEATER),SHADOW GRAY,TRIM1#
main81942-52080-B1i200108-200208
W(HEATER),AMETHYST,TRIM9#
main81942-52080-B2i200212-200512
W(HEATER),DK.GRAY,TRIM1#
main81942-52080-E0i200208-200512
W(HEATER),SANDAL WOOD,TRIM4#
81942JSHEET, HEATER CONTROL NAME, NO.4
main81942-52040-B0i199908-200208
SHADOW GRAY,TRIM1#
main81942-52040-B1i199908-200208
AMETHYST,TRIM9#
main81942-52040-B2i200212-200512
DK.GRAY,TRIM1#
main81942-52040-E0i200208-200512
SANDAL WOOD,TRIM4#
81942KSHEET, HEATER CONTROL NAME, NO.5
main81942-52050-B0i200208-200212
W(HEATER),SHADOW GRAY,TRIM1#
main81942-52050-B1i199908-200208
W(HEATER),AMETHYST,TRIM9#
main81942-52050-B2i200212-200512
W(HEATER),DK.GRAY,TRIM1#
main81942-52050-E0i200208-200512
W(HEATER),SANDAL WOOD,TRIM4#
main81942-52060-B0i200208-200212
SHADOW GRAY,TRIM1#
main81942-52060-B1i199908-200208
AMETHYST,TRIM9#
main81942-52060-B2i200212-200512
DK.GRAY,TRIM1#
main81942-52060-E0i200208-200512
SANDAL WOOD,TRIM4#
81950CLENS ASSY, CENTER CLUSTER MODULE INDICATOR
main81950-52020i199908-200208
W(ENGINE IMMOBILIZER SYSTEM)
main81950-52030i199908-200208
main81950-52040i200208
main81950-52080i200208
W(ENGINE IMMOBILIZER SYSTEM)
main81950-52090i200208
84660HSWITCH ASSY, COOLER CONTROL
main84660-52010i200208-200512
DEALER OPTION
main84660-52020i200208-200512
DEALER OPTION
87284RESISTOR SUB-ASSY, VARIABLE
main88032-52010i199908-200208
main88032-52020i199908-200208
5593352010GUIDE, LEVER, NO.2
main55933-52010
5593952010ORNAMENT, HEATER CONTROL
main55939-52010
9356014014
main93560-14014
9356614512
main93566-14512

29 parts on this diagram · 8 diagrams in section
