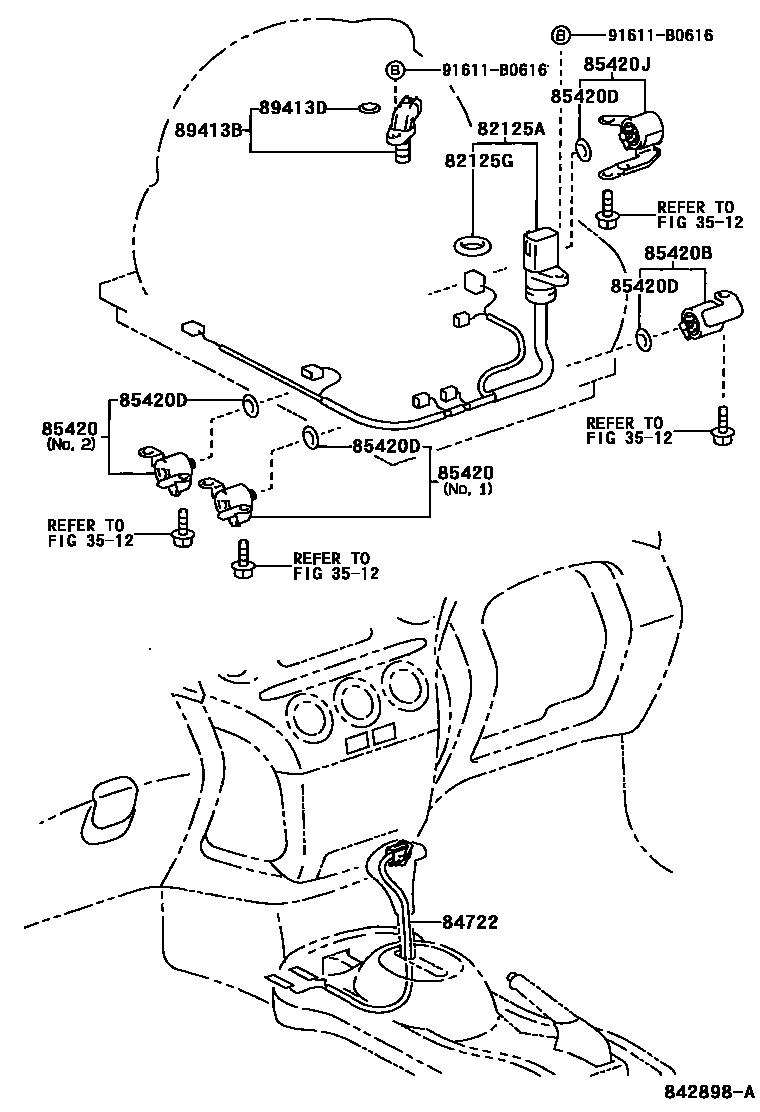

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

82125AWIRE, TRANSMISSION

main82125-20270iNCP12..ATM199908-200208

main82125-52020iNCP11..ATM199908-200208

main82125-52110iNCP12..ATM200508-200512

82125GRING, O(FOR TRANSMISSION WIRE)

main90301-21009iNCP1#..ATM199908-200208

84722SWITCH, TRANSMISSION CONTROL

main84722-52010-B0iNCP1#..RHD..ATM199908-200208

BLUE GLAY,TRIM1#

main84722-52010-B1iNCP1#..RHD..ATM199908-200208

MD. CHARCOAL,TRIM9#

main84722-52020-B0iNCP1#..LHD..ATM199908-200208

BLUE GLAY,TRIM1#

main84722-52020-B1iNCP1#..LHD..ATM199908-200208

MD. CHARCOAL,TRIM9#

main84722-52040-B0iNCP11..ATM..GCC200208-200212

BLUE GRAY,TRIM1#

main84722-52040-B3iNCP1#..LHD..ATM200212-200512

DK.GRAY,TRIM1#

main84722-52040-E0iNCP1#..LHD..ATM200208-200512

SANDAL WOOD,TRIM4#

main84722-52070-B2iNCP1#..RHD..ATM200212-200512

DK.GRAY,TRIM1#

main84722-52070-B4iNCP12..ATM..ARL200208-200212

BLUE GRAY,TRIM1#

main84722-52070-E0iNCP1#..RHD..ATM200208-200512

SANDAL WOOD,TRIM4#

85420SOLENOID ASSY, TRANSMISSION

main35250-52020×2iNCP11..ATM200112-200208

main85420-52010×2iNCP11..ATM199908-200112

NO.1 & NO.2 DENSO

main85420-52020×2iNCP11..ATM199908-200112

NO.1 & NO.2 AISIN

85420BSOLENOID ASSY, TRANSMISSION

main35250-52050iNCP11..ATM200112-200208

main85420-52030iNCP11..ATM199908-200112

DENSO

main85420-52040iNCP11..ATM199908-200112

AISIN

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×4iNCP11..ATM199908-200208

85420JSOLENOID ASSY, TRANSMISSION

main35250-52060iNCP11..ATM200112-200208

DENSO

main35250-52070iNCP11..ATM200208

AISIN

main85420-52050iNCP11..ATM199908-200112

TOYOTA

main85420-52060iNCP11..ATM199908-200112

AISIN

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-32010iNCP1#..ATM199908-200208

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iNCP1#..ATM199908-200208

91611B0616

main91611-B0616

11 parts on this diagram · 2 diagrams in section
