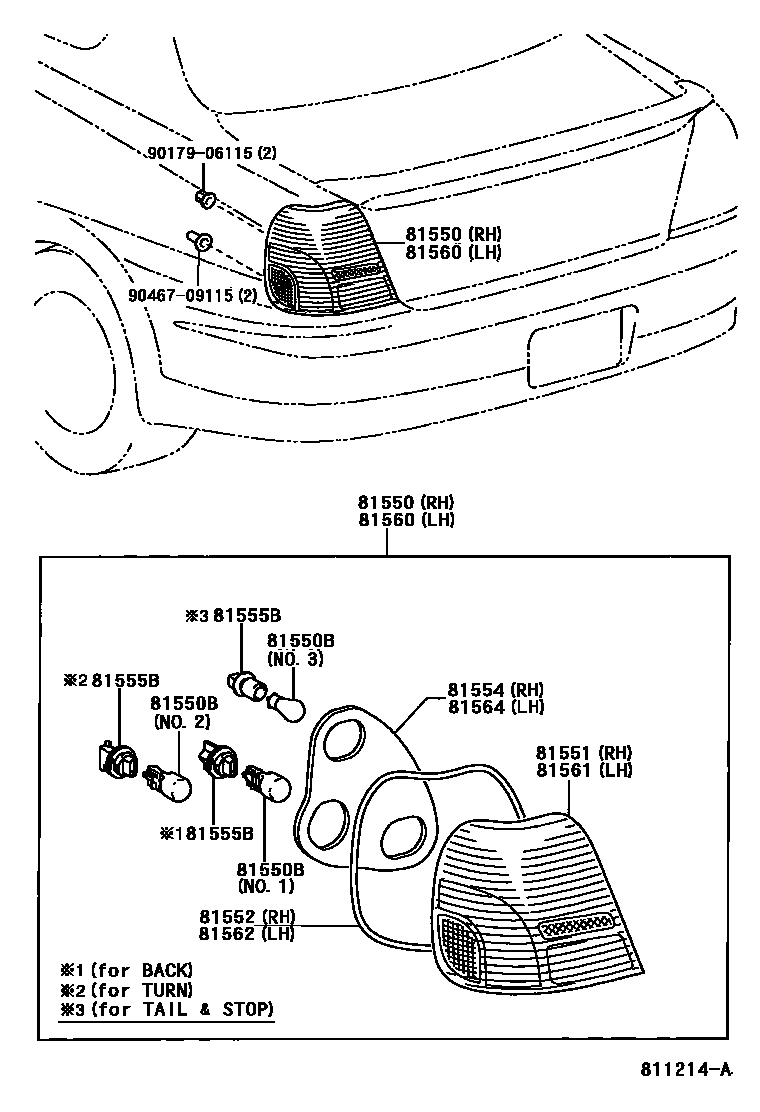

REAR COMBINATION LAMP
81550LAMP ASSY, REAR COMBINATION, RH
ALGERIA OR IVORY COAST SPEC
81550BBULB(FOR REAR COMBINATION LAMP)
12V 21/5W,NO.3
12V 21W,ALGERIA OR IVORY COAST SPEC,NO.1,2; 12V 21W,NO.1; 12V 21W,NO.1,2
12V 21/5W,NO.3
12V 21W,AMBER,NO.2
81551LENS, REAR COMBINATION LAMP, RH
ALGERIA OR IVORY COAST SPEC
81552GASKET, REAR COMBINATION LAMP LENS, RH
81554GASKET, REAR COMBINATION LAMP BODY, RH
81555BSOCKET PLUG, NO.1
FOR BACK; FOR BACK & TURN
FOR TAIL & STOP
FOR TURN
FOR TURN & BACK
81560LAMP ASSY, REAR COMBINATION, LH
ALGERIA OR IVORY COAST SPEC
81561LENS, REAR COMBINATION LAMP, LH
ALGERIA OR IVORY COAST SPEC
81562GASKET, REAR COMBINATION LAMP LENS, LH
81564GASKET, REAR COMBINATION LAMP BODY, LH
9017906115
main90179-06115
9046709115
main90467-09115
12 parts on this diagram · 2 diagrams in section
