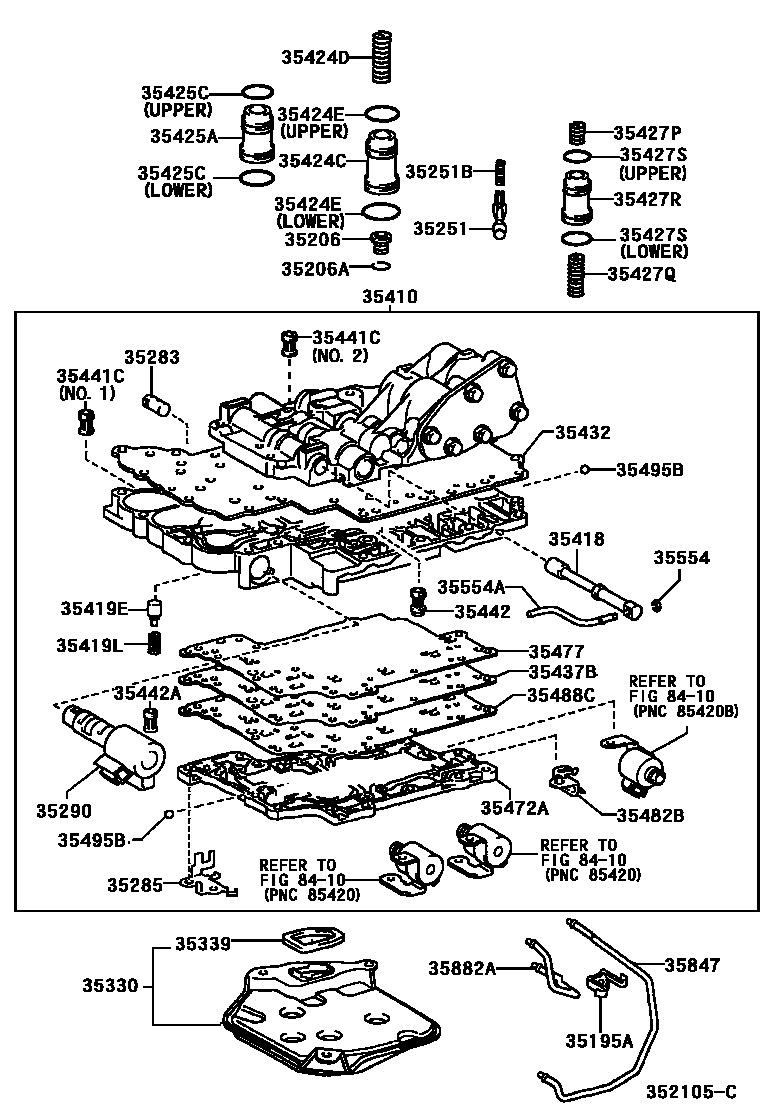

VALVE BODY & OIL STRAINER (ATM)
35195ACLAMP, TRANSAXLE APPLY TUBE, NO.1
35206SPRING SUB-ASSY, C-1 ACCUMULATOR
35206ARING, HOLE SNAP (FOR C-1 ACCUMULATOR SPRING)
35251BODY, CHECK BALL
35251BSPRING, COMPRESSION(FOR CHECK BALL BODY)
35283SLEEVE, LOCK UP CONTROL SOLENOID
35285PLATE, SOLENOID LOCK
35290SOLENOID ASSY, LINE PRESSURE CONTROL
35330STRAINER ASSY, VALVE BODY OIL
35339GASKET, OIL STRAINER
35410BODY ASSY, TRANSMISSION VALVE
35419VALVE, CHECK, NO.1
35419EVALVE, CHECK, NO.3
35419LSPRING, COMPRESSION (FOR CHECK VALVE NO.3)
35424CPISTON, C-1 ACCUMULATOR
MARK=52OC1
MARK=52AC1
35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
35424ERING, O (FOR C-1 ACCUMULATOR PISTON)
UPPER
INNER
OUTER
LOWER
35425APISTON, C-2 ACCUMULATOR
MARK=52OC2
MARK=52AC2
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
UPPER
LOWER
LOWER
UPPER
35427COVER, ACCUMULATOR
35427PSPRING, COMPRESSION, NO.1(FOR B-1 ACCUMULATOR PISTON)
35427QSPRING COMPRESSION, NO.2(FOR B1 ACCUMULATOR PISTON)
35427RPISTON B-1 ACCUMULATOR
35427SRING, O(FOR B-1 ACCUMULATOR PISTON)
UPPER
INNER
OUTER
LOWER
35432PLATE, VALVE BODY, NO.1
35437BPLATE, VALVE BODY COVER
35441CSTRAINER, SOLENOID OIL
NO.1
NO.2
35442STRAINER, THROTTLE MODULATOR OIL
35442ASTRAINER, SOLENOID OIL, NO.2
35472ACOVER, LOWER VALVE BODY
35477GASKET, VALVE BODY COVER
35482BCLAMP, TEMPERATURE SENSOR
35488CGASKET, VALVE BODY COVER, NO.2
35495BBALL, CHECK, NO.1
35554ROD, MANUAL VALVE CONNECTING
35554ARING, E (FOR MANUAL VALVE CONNECTING ROD)
35847TUBE, TRANSMISSION LUBE APPLY
35882ATUBE, DIFFERENTIAL GEAR LUBE APPLY
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
40 parts on this diagram · 10 diagrams in section
