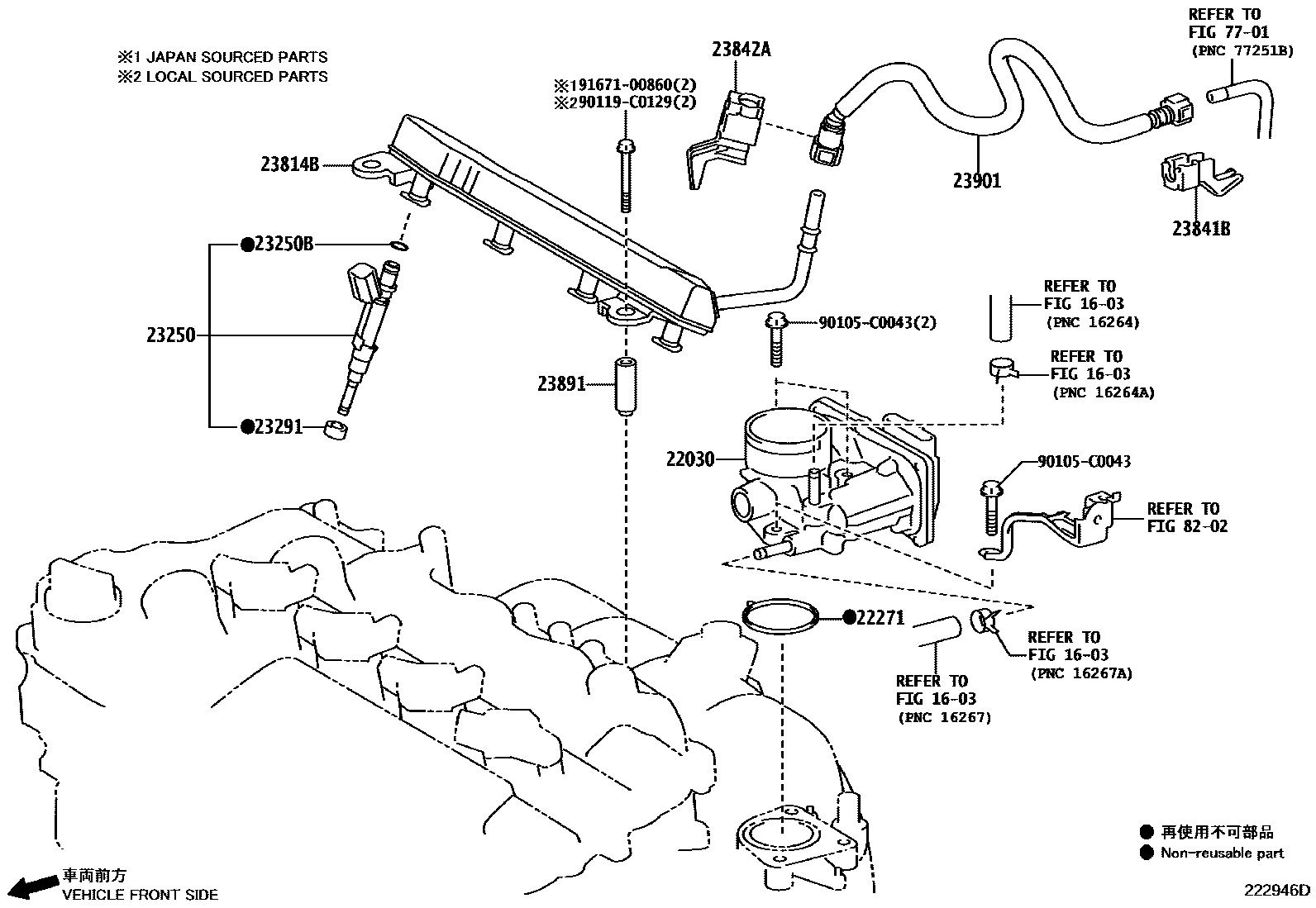

FUEL INJECTION SYSTEM

0001 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0Y030i4NRFE,5NRF..NSP15#201311-201609

main22030-0Y100i5NRF..NSP151201609-202008

22271GASKET, THROTTLE BODY

main22271-0Y010i4NRFE..NSP150201609-202004

23250INJECTOR ASSY, FUEL

main23209-09250×4i4NRFE,5NRF..NSP15#201311-201609

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i4NRFE..NSP150201609-202004

(J)

main90301-C0072×4i5NRF..NSP151201609-202008

(L)

23291INSULATOR, INJECTOR VIBRATION

main23291-0P020×4i4NRFE,5NRF..NSP15#201311-201609

23814BPIPE, FUEL DELIVERY

main23814-0Y050i4NRFE,5NRF..NSP15#201708-201805

main23814-0Y051i4NRFE..NSP150201806-202004

main23814-47050i4NRFE,5NRF..NSP15#201311-201609

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0V020i4NRFE,5NRF..NSP15#201311-201609

main23841-37081i5NRF..NSP151201811-202008

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-0Y020i4NRFE,5NRF..NSP15#201311-201609

23891SPACER, FUEL DELIVERY

main23891-47030×2i4NRFE,5NRF..NSP15#201311-201609

23901TUBE SUB-ASSY, FUEL

main23901-0Y070i4NRFE,5NRF..NSP15#201311-201609

main23901-0Y140i4NRFE..NSP150201609-202004

main23901-0Y280supersedes 23901-0Y270i5NRF..NSP151202008

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8202WIRING & CLAMP

→ Go to FIG 82-02

90105C0043

main90105-C0043

90119C0129

main90119-C0129

9167100860

main91671-00860

16 parts on this diagram · 2 diagrams in section
