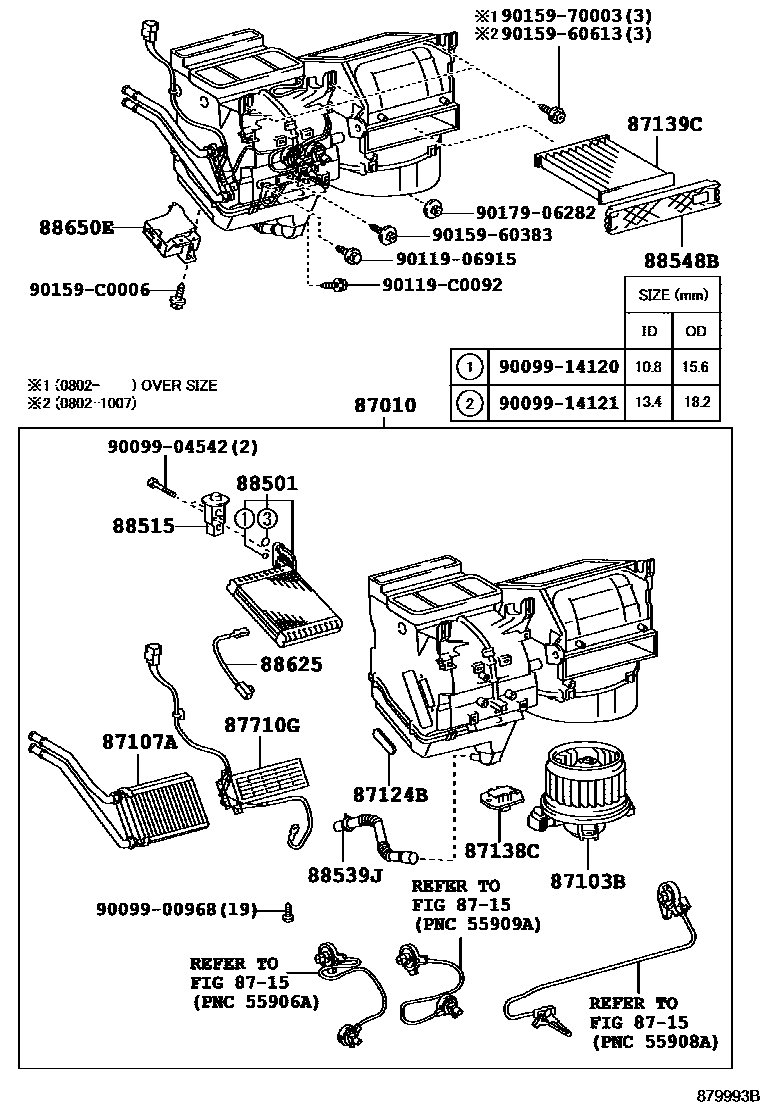

HEATING & AIR CONDITIONING - COOLER UNIT

87010UNIT ASSY, AIR CONDITIONER

main87010-0D460iNCP92,ZSP92200802-200909

main87010-0D461iNCP92,ZSP92200910-201008

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0D170iNCP92,ZSP92200802-201008

main87103-0D171iNCP92,ZSP92201012-201307

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-0D100iNCP92,ZSP92200802-201008

87124BCLAMP, HEATER

main87124-0D020iNCP92,ZSP92200802-201008

87138CRESISTOR, BLOWER

main87138-0D100iNCP92,ZSP92200802-201008

87139CFILTER, CLEAN AIR

main87139-0D030iNCP92,ZSP92200802-201008

main87139-50100iNCP92,ZSP92..GLI,GLXI201008-201307

*DPF

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87710GQUICK HEATER ASSY

main87710-0D010iNCP92,ZSP92200802-201008

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0D150iNCP92,ZSP92200802-200810

main88501-0D151iNCP92,ZSP92200811-201008

main88501-0D152iZSP92..GLS201205-201303

88515VALVE, COOLER EXPANSION

main88515-0D100iNCP92,ZSP92200802-201008

main88515-0D200iNCP92,ZSP92201105-201307

88539JHOSE, DRAIN COOLER

main88539-0D110iNCP92,ZSP92200802-201008

main88539-0D240iZSP92..GLS201102-201303

88548BCASE, AIR FILTER

main88548-0D070iNCP92,ZSP92200802-201008

88625THERMISTOR, COOLER, NO.1

main88625-0D100iNCP92,ZSP92200802-201008

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-0D220iNCP92,ZSP92200802-201008

9009900968

main90099-00968

9009904542

main90099-04542

9009914120

main90099-14120

9009914121

main90099-14121

9011906915

main90119-06915

90119C0092

main90119-C0092

9015960383

main90159-60383

9015960613

main90159-60613

9015970003

main90159-70003

90159C0006

main90159-C0006

9017906282

main90179-06282

25 parts on this diagram · 1 diagram in section
