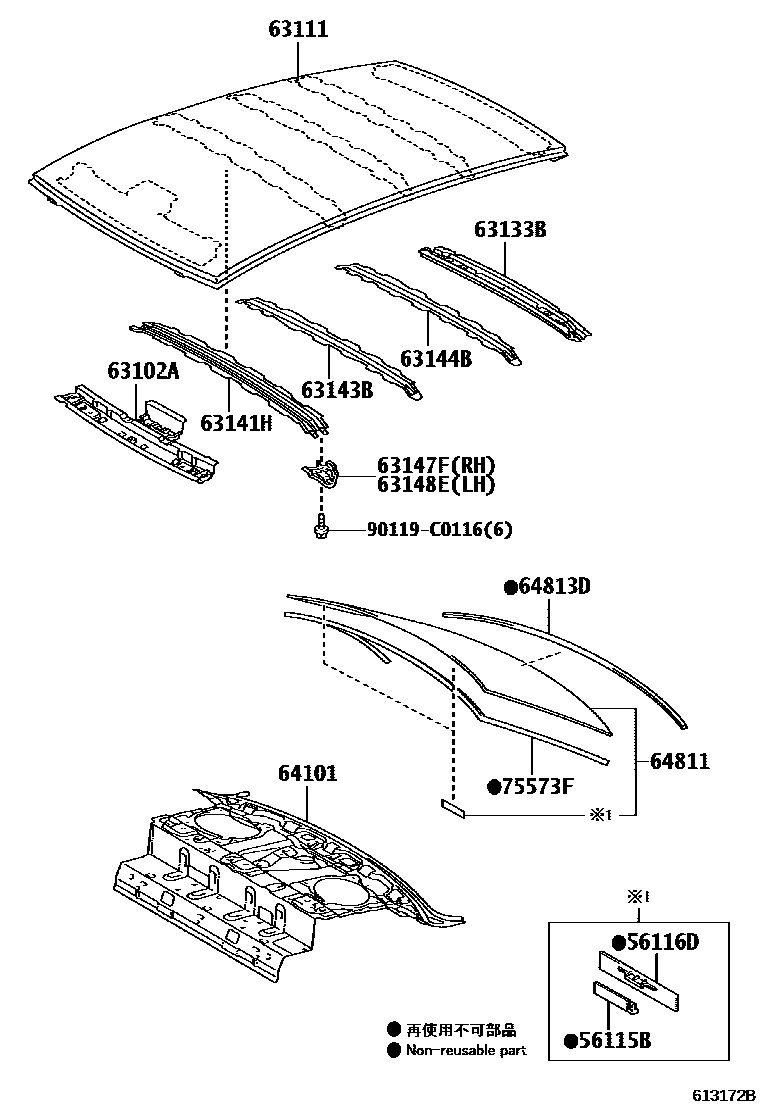

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1MOON ROOF 0003 1MOON ROOF

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30100×2iNCP92,ZSP92..GLI,GLXI201008

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050×2iZSP92..GLS201008-201303

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0D050iNCP92,ZSP92200802-201008

63111PANEL, ROOF

main63111-52250iNCP92;ZSP92..GLS201008-201307

main63111-0D120iZSP92..GLXI200802-201008

MOON ROOF-WITH

63133BFRAME, BACK WINDOW

main63133-0D060iNCP92,ZSP92200802-201008

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-0D090iNCP92,ZSP92200802-201008

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-0D080iNCP92,ZSP92200802-201008

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-0D030iNCP92,ZSP92200802-201008

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-0D030iNCP92,ZSP92200802-201008

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-0D030iNCP92,ZSP92200802-201008

64101PANEL SUB-ASSY, UPPER BACK

main64101-0D080iNCP92,ZSP92200802-201008

64811GLASS, BACK WINDOW

main64801-0D902iNCP92,ZSP92200802-201008

*TEM,T=3.1,GREEN,ASAHI

main64801-0D904iNCP92,ZSP92200810-201008

*TEM,T=3.1,GREEN,FUYAO

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-52080iNCP92,ZSP92200802-201008

75573FMOULDING, BACK WINDOW, OUTSIDE

main75573-0D040iNCP92,ZSP92200802-200911

main75573-0D050iNCP92,ZSP92200912-201008

90119C0116

main90119-C0116

15 parts on this diagram · 3 diagrams in section
