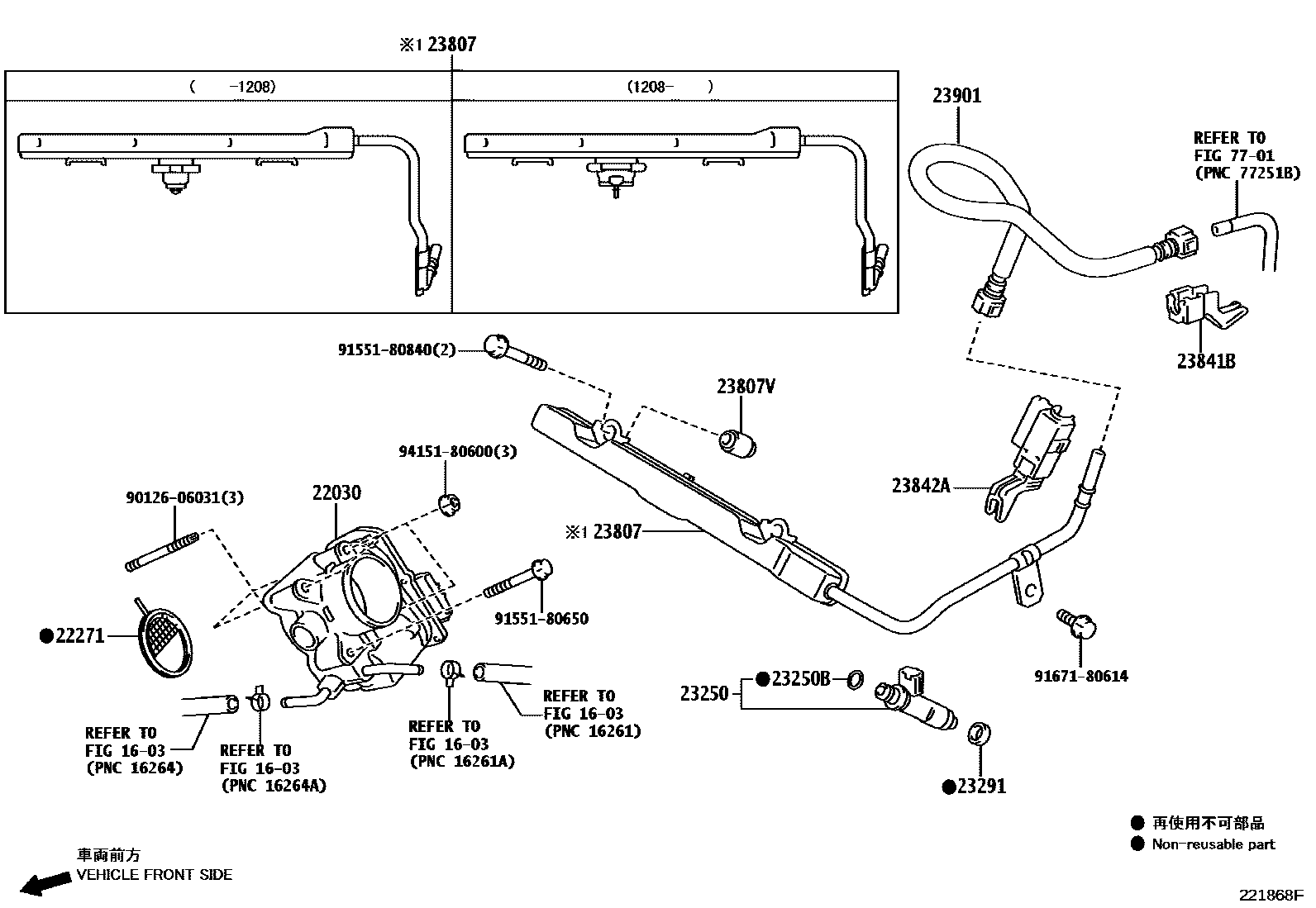

FUEL INJECTION SYSTEM

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-21030i2NZFE..NCP92201008

22271GASKET, THROTTLE BODY

main22271-0T010i1ZRFE..ZSP92200802-201008

(L)

main22271-21060i2NZFE..NCP92201008

main22271-75031i1ZRFE..ZSP92200910-201008

(J)

23250INJECTOR ASSY, FUEL

main23209-09120×4i1ZRFE..ZSP92..GLI,GLXI201008

(L)

main23209-21040×4i2NZFE..NCP92200802-201008

main23209-39145×4i1ZRFE..ZSP92200802-201008

(J)

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i1ZRFE..ZSP92; 2NZFE..NCP92200802-201008

23291INSULATOR, INJECTOR VIBRATION

main23291-0P020×4i1ZRFE..ZSP92..GLS201107-201303

(L)

main23291-23010×4i1ZRFE..ZSP92201008-201107

main23291-41010×4i2NZFE..NCP92200802-201008

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-21051i2NZFE..NCP92201008-201208

main23807-21090i2NZFE..NCP92201208

main23814-37050i1ZRFE..ZSP92200802-201008

main23814-37051i1ZRFE..ZSP92..GLI,GLXI201108

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010×2i2NZFE..NCP92201008

main23891-37010×2i1ZRFE..ZSP92..GLS201008-201303

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1ZRFE..ZSP92; 2NZFE..NCP92200802-201008

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-21040i2NZFE..NCP92200907-201008

main23841-37090i2NZFE..NCP92201211

main23842-21010i2NZFE..NCP92200802-200907

main23842-22020i1ZRFE..ZSP92..GLS201008-201303

23901TUBE SUB-ASSY, FUEL

main23901-21110i2NZFE..NCP92200802-201008

main23901-37020i1ZRFE..ZSP92201008-201307

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9012606031

main90126-06031

9155180650

main91551-80650

9155180840

main91551-80840

9167180614

main91671-80614

9415180600

main94151-80600

17 parts on this diagram · 2 diagrams in section
