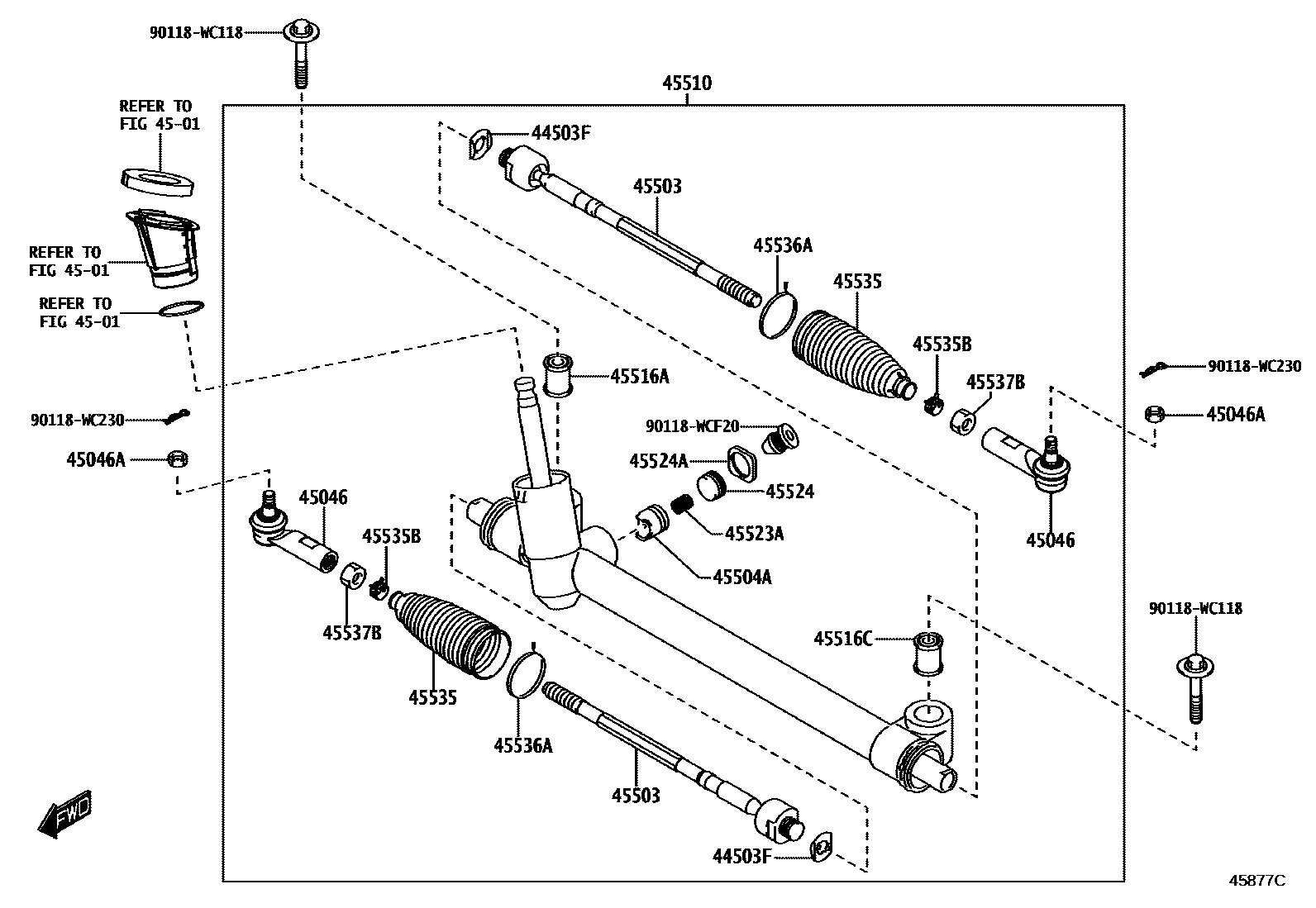

FRONT STEERING GEAR & LINK

0001 1 0002 1

44503FWASHER, CLAW(FOR POWER STEERING RACK END)

main90118-WCB24×2iK15B202404

4501STEERING COLUMN & SHAFT

→ Go to FIG 45-01

45046END SUB-ASSY, TIE ROD, RH

main45046-WC002×2iK15B202404

45046ANUT, CASTLE(FOR TIE ROD END)

main90118-WC148×2iK15B202404

45503END SUB-ASSY, STEERING RACK

main45503-WC007×2iK15B202404

45504AGUIDE SUB-ASSY, RACK

main45504-WC003iK15B202404

45510GEAR ASSY, STEERING

main45510-WC010iK15B..5F..P; K15B..RHD..4FC..M; K15B..RHD..4FC..P; K15B..RHD..5F..M202404

POS.1; POS.3; POS.4; POS.6

main45510-WC011iK15B..LHD..4FC..M; K15B..LHD..5F; K15B..LHD..P202404

POS.10; POS.2; POS.5; POS.7; POS.8; POS.9

45516ABUSH, STEERING RACK HOUSING, NO.1

main45516-WC003iK15B202404

45516CBUSH, STEERING RACK HOUSING, NO.2

main45516-WC004iK15B202404

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90118-WCF18iK15B202404

45524CAP, STEERING RACK GUIDE SPRING

main45524-WC005iK15B202404

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main90118-WCF19iK15B202404

45535BOOT, STEERING RACK, NO.1

main45535-WC004×2iK15B202404

45535BCLIP(FOR STEERING RACK BOOT)

main90118-WCB25×2iK15B202404

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90118-WCC11×2iK15B202404

45537BNUT, RACK END LOCK

main90118-WCB23×2iK15B202404

90118WC118

main90118-WC118

90118WC230

main90118-WC230

90118WCF20

main90118-WCF20

19 parts on this diagram · 2 diagrams in section
