SPEAKER

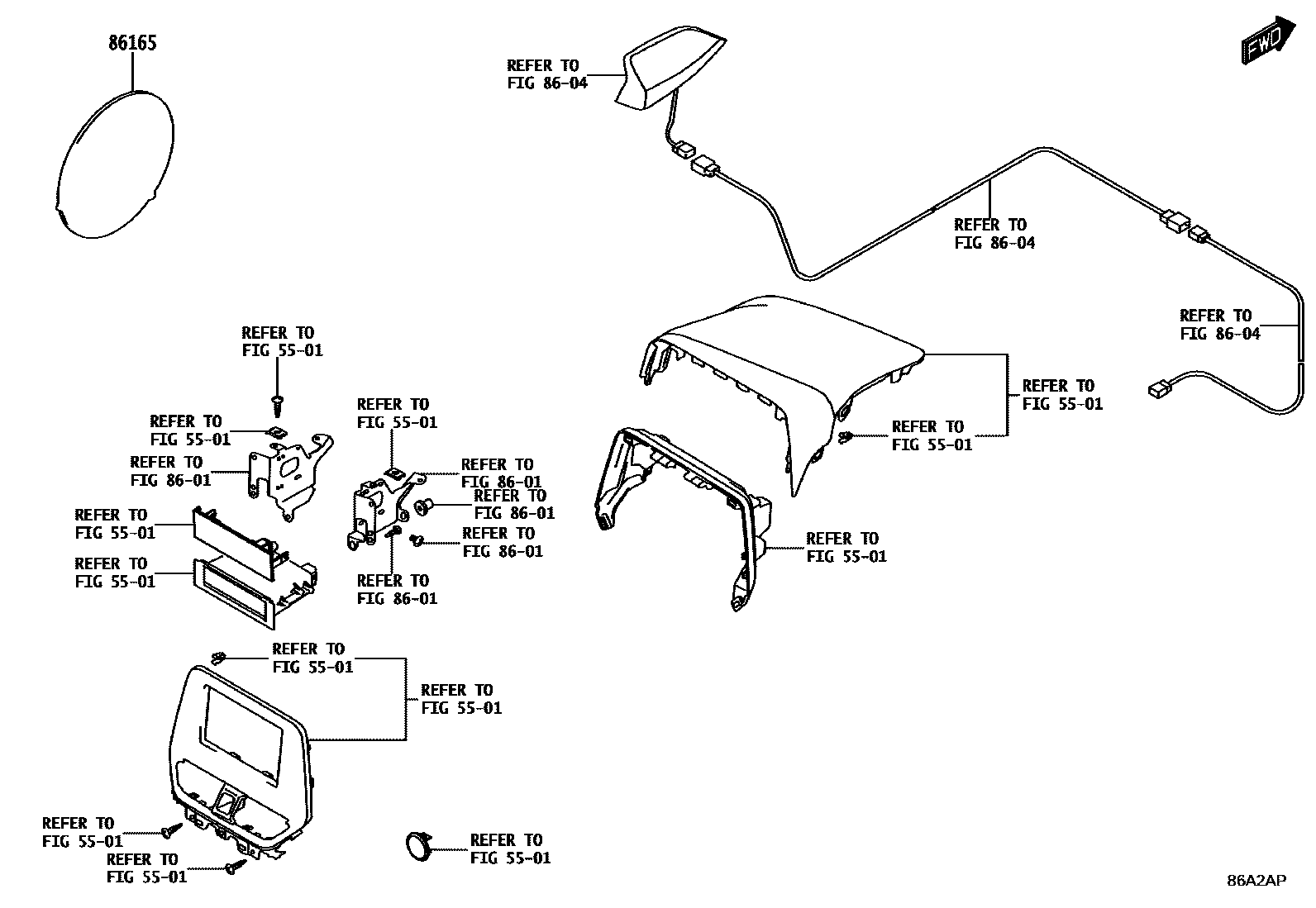

Parts diagram

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

8604ANTENNA

→ Go to FIG 86-04

86165SEAL, SPEAKER, NO.1

main86165-WC001×4i202404

POS.11; POS.12; POS.19; POS.20; POS.31; POS.32; POS.39; POS.40

4 parts on this diagram · 3 diagrams in section
