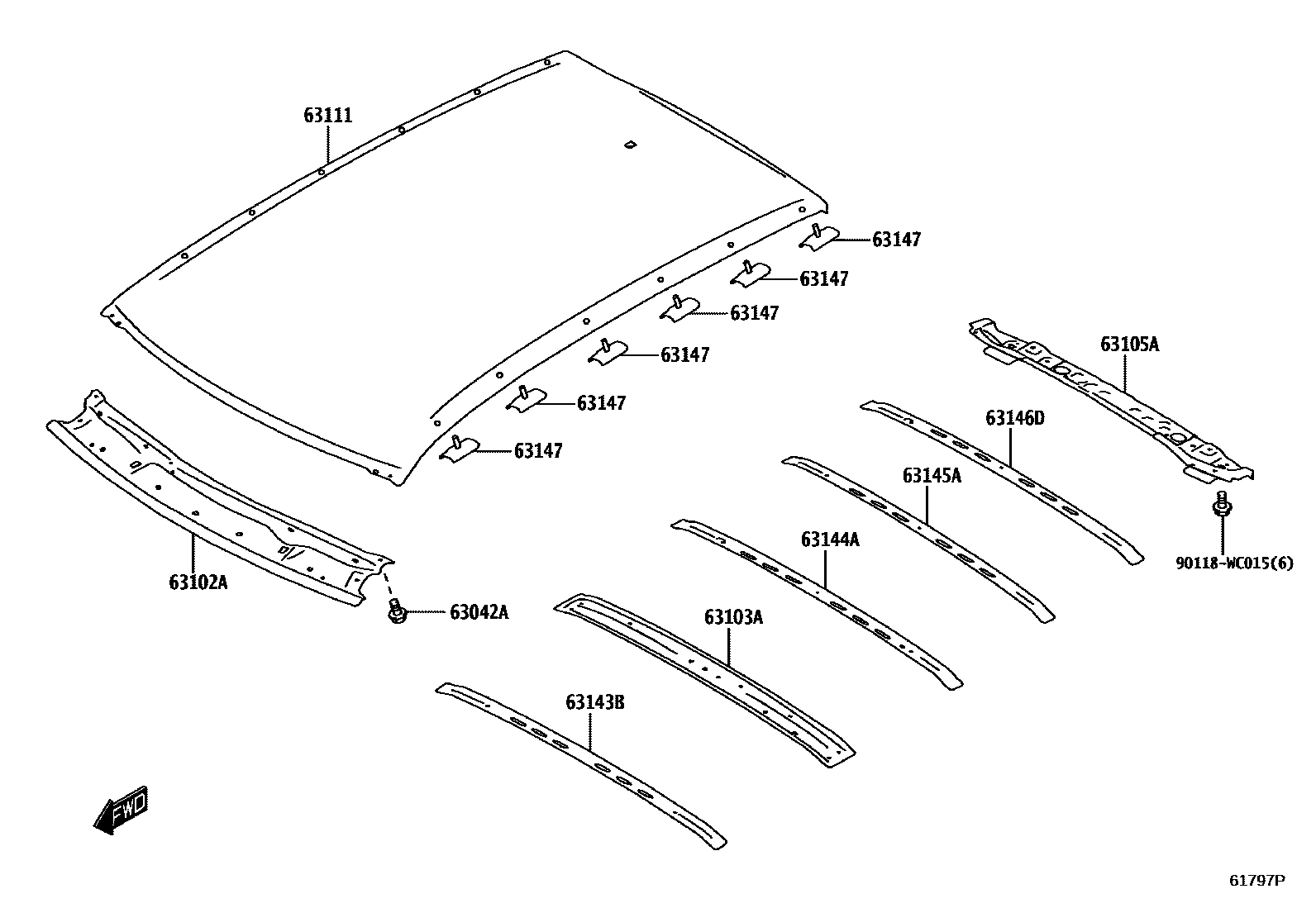

ROOF PANEL & BACK WINDOW GLASS
63042ABOLT
63102APANEL SUB-ASSY, WINDSHIELD HEADER
main63102-WC001iK10T..5F..G; K10T..5F..V; K10T..6FC..G; K10T..6FC..V; K10T..D; K12N..AMT..D; K12N..AMT..S; K12N..MTM..D; K12N..MTM..S..GAS; K12N..S..CNG202404
POS.1; POS.10; POS.13; POS.14; POS.15; POS.16; POS.17; POS.18; POS.2; POS.21; POS.22; POS.23; POS.24; POS.25; POS.26; POS.27; POS.28; POS.29; POS.3; POS.30; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.4; POS.5; POS.6; POS.7; POS.8; POS.9
POS.11; POS.12; POS.19; POS.20; POS.31; POS.32; POS.39; POS.40
63103AREINFORCEMENT SUB-ASSY, ROOF PANEL
63105AFRAME SUB-ASSY, BACK DOOR OPENING
63111PANEL, ROOF
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63145AREINFORCEMENT, ROOF PANEL, NO.5
63146DREINFORCEMENT, ROOF PANEL, NO.6
63147BRACKET, ROOF PANEL REINFORCEMENT
90118WC015
main90118-WC015
11 parts on this diagram · 3 diagrams in section
