Toyota 132310 — BRAKE TUBE & CLAMP
47311AWAY(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47315TUBE, FRONT BRAKE, NO.5
47316TUBE, FRONT BRAKE, NO.6
47317TUBE, FRONT BRAKE, NO.7
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47322TUBE, REAR BRAKE, NO.2
47323BTUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47371ACLAMP, BRAKE TUBE, NO.1
47371BCLAMP, BRAKE TUBE, NO.6
47371CCLAMP, BRAKE TUBE, NO.7
47371ECLAMP, BRAKE TUBE, NO.9
47371FCLAMP, BRAKE TUBE, NO.10
47372CLAMP, BRAKE TUBE, NO.2
47373BCLAMP, BRAKE TUBE, NO.3
47374BCLAMP, BRAKE TUBE, NO.4
90118WC052
90118WC228
90118WC824
90118WCU52
90118WCX63

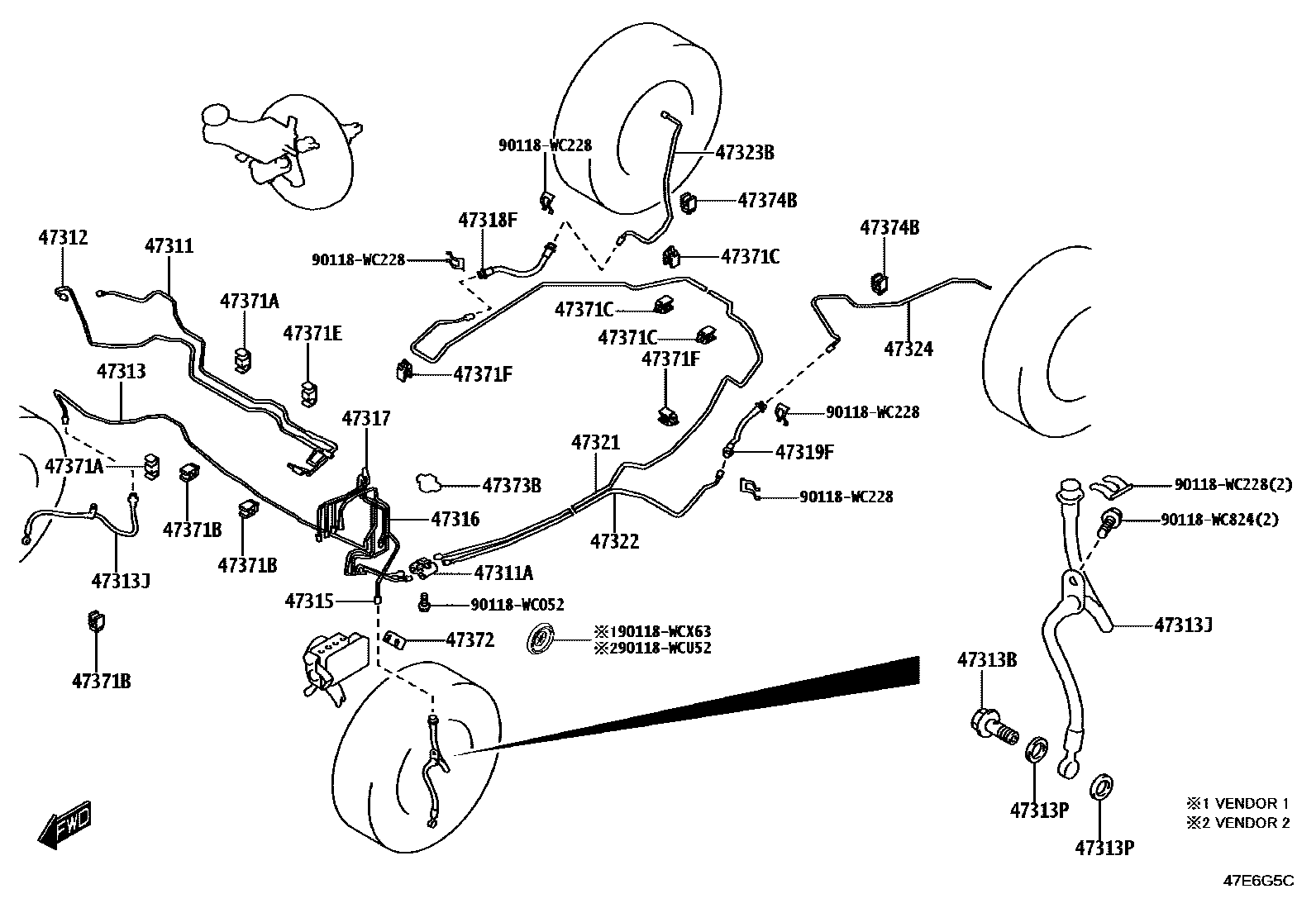

29 parts on this diagram · 2 diagrams in section
BRAKE TUBE & CLAMP for Toyota 132310
This section contains 33 genuine Toyota parts for the BRAKE TUBE & CLAMP system of the Toyota 132310. Key components include: ACTUATOR ASSY, BRAKE, BRACKET ASSY, BRAKE ACTUATOR, TUBE, FRONT BRAKE, NO.1, WAY(FOR FRONT BRAKE TUBE), TUBE, FRONT BRAKE, NO.2.
