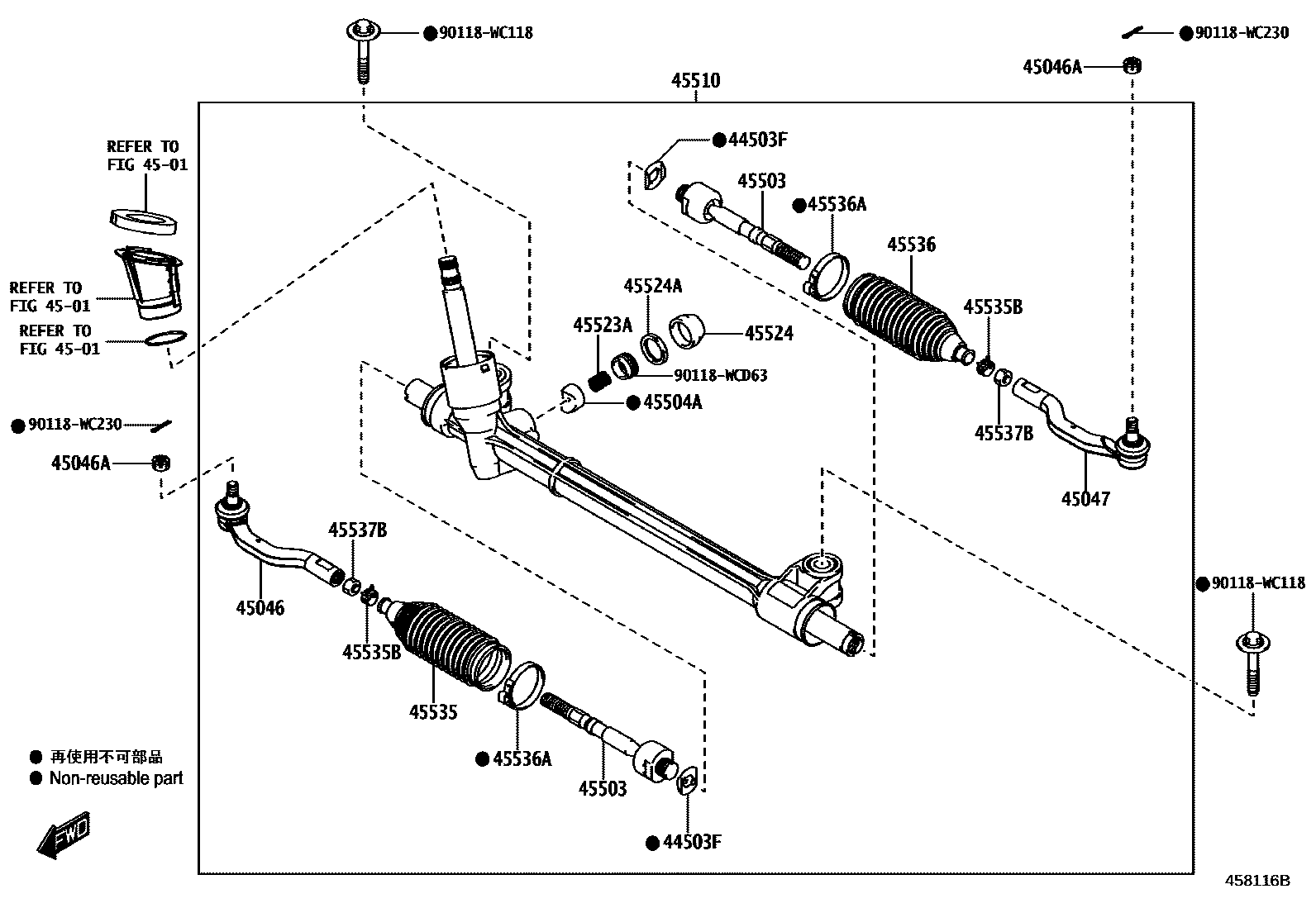

FRONT STEERING GEAR & LINK
44503FWASHER, CLAW(FOR POWER STEERING RACK END)
POS.17; POS.22; POS.28
4501STEERING COLUMN & SHAFT
45046END SUB-ASSY, TIE ROD, RH
POS.17; POS.22; POS.28
45046ANUT, CASTLE(FOR TIE ROD END)
POS.17; POS.22; POS.28
45047END SUB-ASSY, TIE ROD, LH
main45046-WC006iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA202107
POS.10; POS.11; POS.12; POS.13; POS.14; POS.15; POS.16; POS.18; POS.19; POS.20; POS.21; POS.24; POS.25; POS.26; POS.27; POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.9
45503END SUB-ASSY, STEERING RACK
POS.17; POS.22; POS.28
45504AGUIDE SUB-ASSY, RACK
main45504-WC004iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA202107
POS.10; POS.11; POS.12; POS.13; POS.14; POS.15; POS.16; POS.18; POS.19; POS.20; POS.21; POS.24; POS.25; POS.26; POS.27; POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.9
45510GEAR ASSY, STEERING
POS.10; POS.11; POS.12; POS.24; POS.25; POS.26; POS.27; POS.9
POS.13; POS.14; POS.15; POS.16; POS.18; POS.19; POS.20; POS.21; POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36
45523ASPRING(FOR STEERING GEAR RACK GUIDE)
main90118-WC533iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA202107
POS.10; POS.11; POS.12; POS.13; POS.14; POS.15; POS.16; POS.18; POS.19; POS.20; POS.21; POS.24; POS.25; POS.26; POS.27; POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.9
45524CAP, STEERING RACK GUIDE SPRING
POS.17; POS.22; POS.28
45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)
POS.17; POS.22; POS.28
45535BOOT, STEERING RACK, NO.1
POS.17; POS.22; POS.28
45535BCLIP(FOR STEERING RACK BOOT)
POS.17; POS.22; POS.28
45536BOOT, STEERING RACK, NO.2
POS.17; POS.22; POS.28
45536ACLAMP(FOR STEERING RACK BOOT NO.2)
POS.17; POS.22; POS.28
45537BNUT, RACK END LOCK
POS.17; POS.22; POS.28
90118WC118
main90118-WC118
90118WC230
main90118-WC230
90118WCD63
main90118-WCD63
19 parts on this diagram · 2 diagrams in section
