Toyota HILUX 671 — REFLEX REFLECTOR

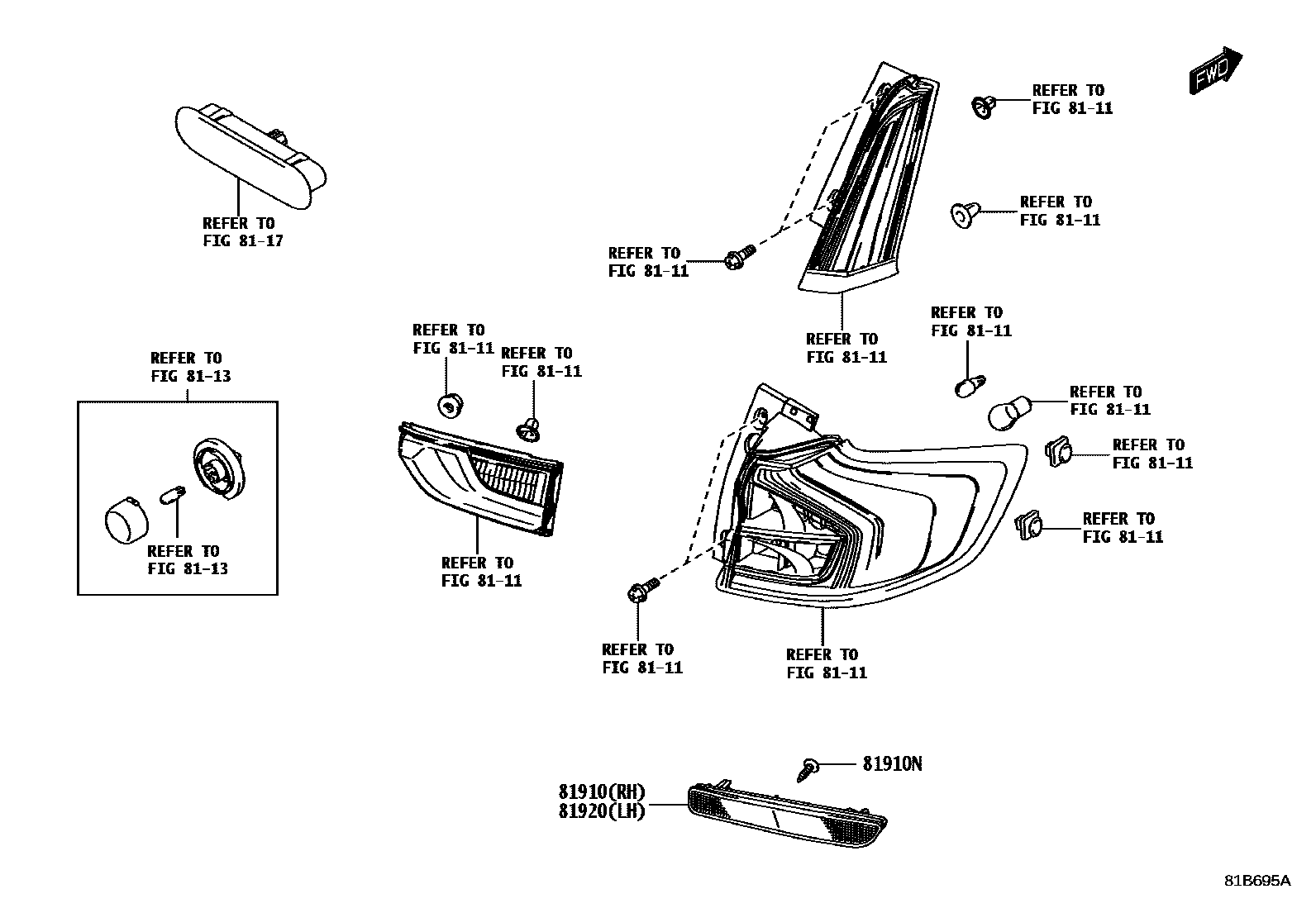

Parts diagram
8111REAR COMBINATION LAMP
→ Go to FIG 81-11
8113REAR LICENSE PLATE LAMP
→ Go to FIG 81-13
8117CENTER STOP LAMP
→ Go to FIG 81-17
81910REFLECTOR ASSY, REFLEX, RH
81910-WC001
90118-WC064
90118-WCU77
81910NSCREW, REFLEX REFLECTOR
81920REFLECTOR ASSY, REFLEX, LH
81920-WC001

6 parts on this diagram · 1 diagram in section

REFLEX REFLECTOR for Toyota HILUX 671

This section contains 6 genuine Toyota parts for the REFLEX REFLECTOR system of the Toyota HILUX 671. Key components include: REAR COMBINATION LAMP, REAR LICENSE PLATE LAMP, CENTER STOP LAMP, REFLECTOR ASSY, REFLEX, RH, SCREW, REFLEX REFLECTOR.
