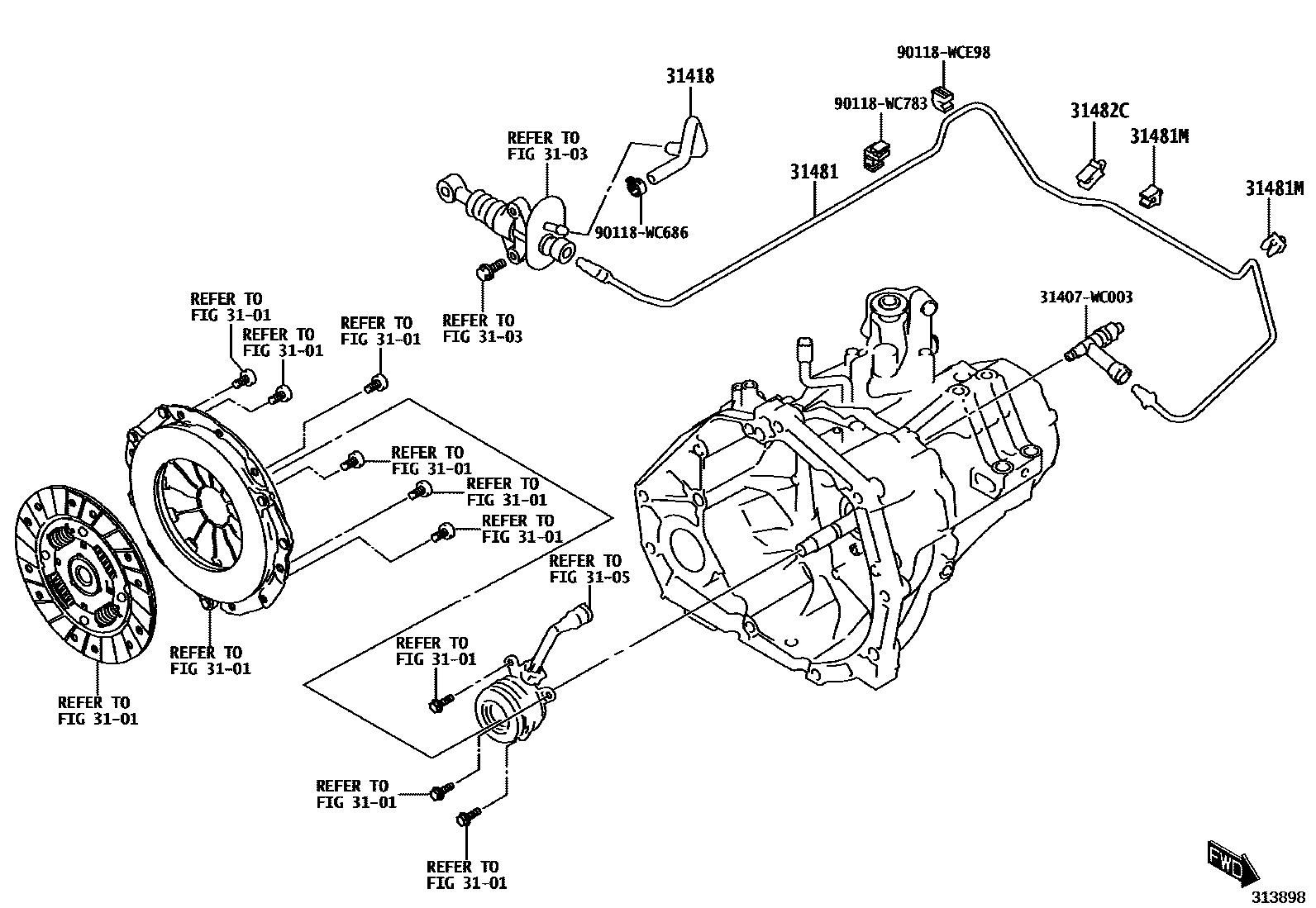

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

3101CLUTCH & RELEASE FORK

→ Go to FIG 31-01

3103CLUTCH MASTER CYLINDER

→ Go to FIG 31-03

3105CLUTCH RELEASE CYLINDER

→ Go to FIG 31-05

31418HOSE, CLUTCH

main31434-WC002iK15C..5F..G; K15C..5F..S..GAS; K15C..5F..V; K15C..CNG; K15C..E202308

POS.1; POS.10; POS.11; POS.12; POS.16; POS.2; POS.3; POS.7; POS.8; POS.9

31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

main31481-WC015iK15C..5F..G; K15C..5F..S..GAS; K15C..5F..V; K15C..CNG; K15C..E202308

POS.1; POS.10; POS.11; POS.12; POS.16; POS.2; POS.3; POS.7; POS.8; POS.9

31481MCLAMP(FOR CLUTCH MASTER CYLINDER TUBE)

main90118-WC780×2iK15C..5F..G; K15C..5F..S..GAS; K15C..5F..V; K15C..CNG; K15C..E202308

POS.1; POS.10; POS.11; POS.12; POS.16; POS.2; POS.3; POS.7; POS.8; POS.9

31482CCLAMP(FOR CLUTCH TUBE)

main90118-WCE97iK15C..5F..G; K15C..5F..S..GAS; K15C..5F..V; K15C..CNG; K15C..E202308

POS.1; POS.10; POS.11; POS.12; POS.16; POS.2; POS.3; POS.7; POS.8; POS.9

31407WC003TUBE SUB-ASSY, BLEEDER CLUTCH RELEASE

main31407-WC003

90118WC686

main90118-WC686

90118WC783

main90118-WC783

90118WCE98

main90118-WCE98

11 parts on this diagram · 2 diagrams in section
