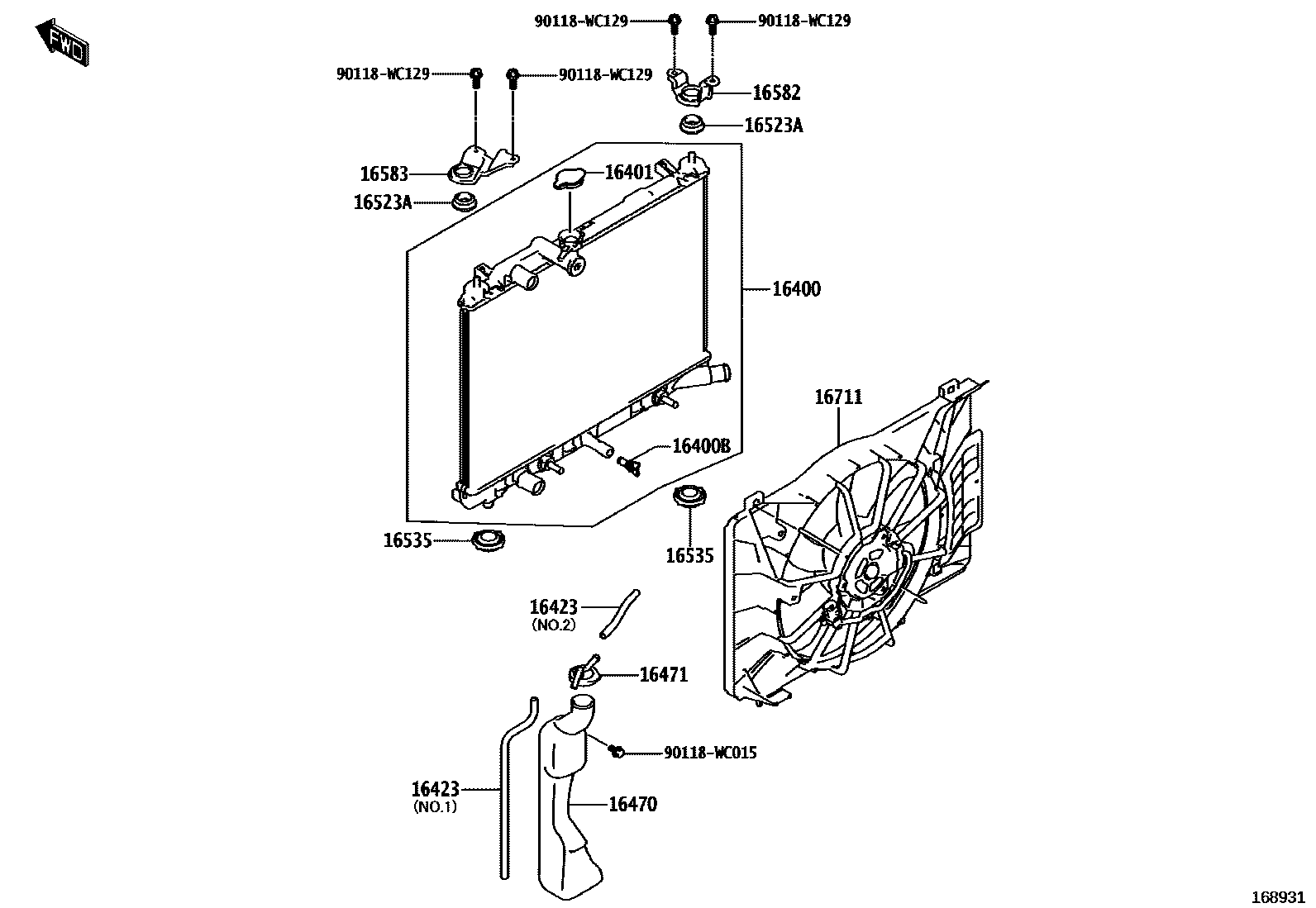

RADIATOR & WATER OUTLET

0001 1 0002 1

16400RADIATOR ASSY

main16400-WC016iK15C..K15C202308

16400BPLUG, RADIATOR DRAIN COCK

main16417-WC002iK15C..K15C202308

16401CAP SUB-ASSY, RADIATOR

main16401-WC002iK15C..K15C202308

16423HOSE, RADIATOR TANK

main16377-WC001iK15C..K15C202308

NO.1:REFER ILLUST.

main90118-WC223iK15C..K15C202308

NO.2:REFER ILLUST.

16470TANK ASSY, RADIATOR RESERVE

main16470-WC001iK15C..K15C202308

16471CAP SUB-ASSY, RESERVE TANK

main16471-WC001iK15C..K15C202308

16523ACUSHION, RADIATOR SUPPORT

main16523-WC001×2iK15C..K15C202308

16535SUPPORT, RADIATOR, LOWER

main90118-WC349×2iK15C..K15C202308

16582BRACKET, RADIATOR, NO.1

main90118-WCE85iK15C..K15C202308

16583BRACKET, RADIATOR, NO.2

main90118-WCE86iK15C..K15C202308

16711SHROUD, FAN

main16360-WC005iK15C..K15C202308

90118WC015

main90118-WC015

90118WC129

main90118-WC129

13 parts on this diagram · 2 diagrams in section
