CYLINDER BLOCK

0001 1 0002 1 0003 1

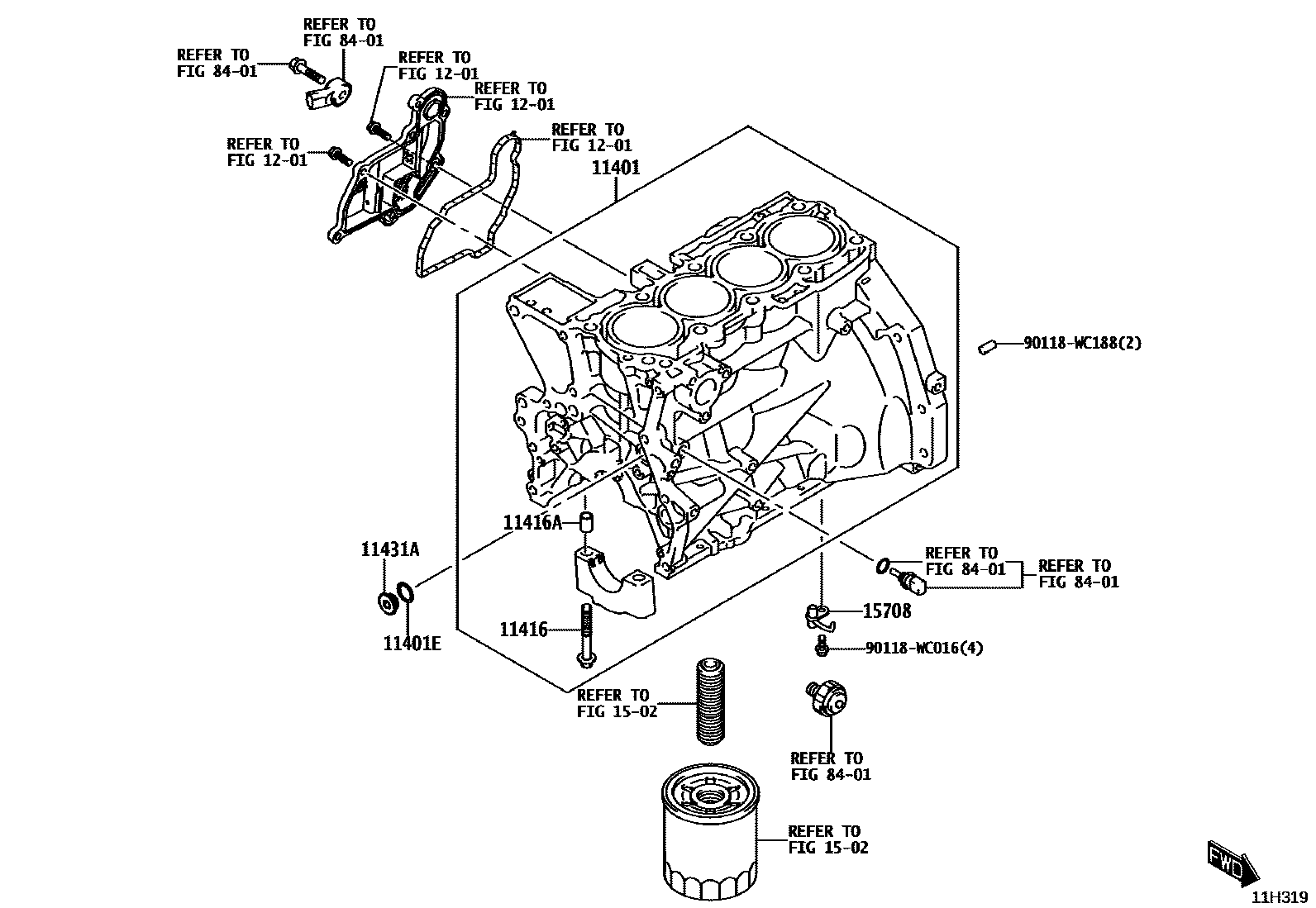

11401BLOCK SUB-ASSY, CYLINDER

main11410-WC006iK15C..K15C202308

11401EGASKET(FOR CYLINDER BLOCK PLUG)

main90118-WC640×2iK15C..K15C202308

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90118-WCA44×10iK15C..K15C202308

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90118-WC067×10iK15C..K15C202308

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90118-WC202×2iK15C..K15C202308

1201VENTILATION HOSE

→ Go to FIG 12-01

1502OIL FILTER

→ Go to FIG 15-02

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-WC004iK15C..K15C202308

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90118WC016

main90118-WC016

90118WC188

main90118-WC188

11 parts on this diagram · 3 diagrams in section
