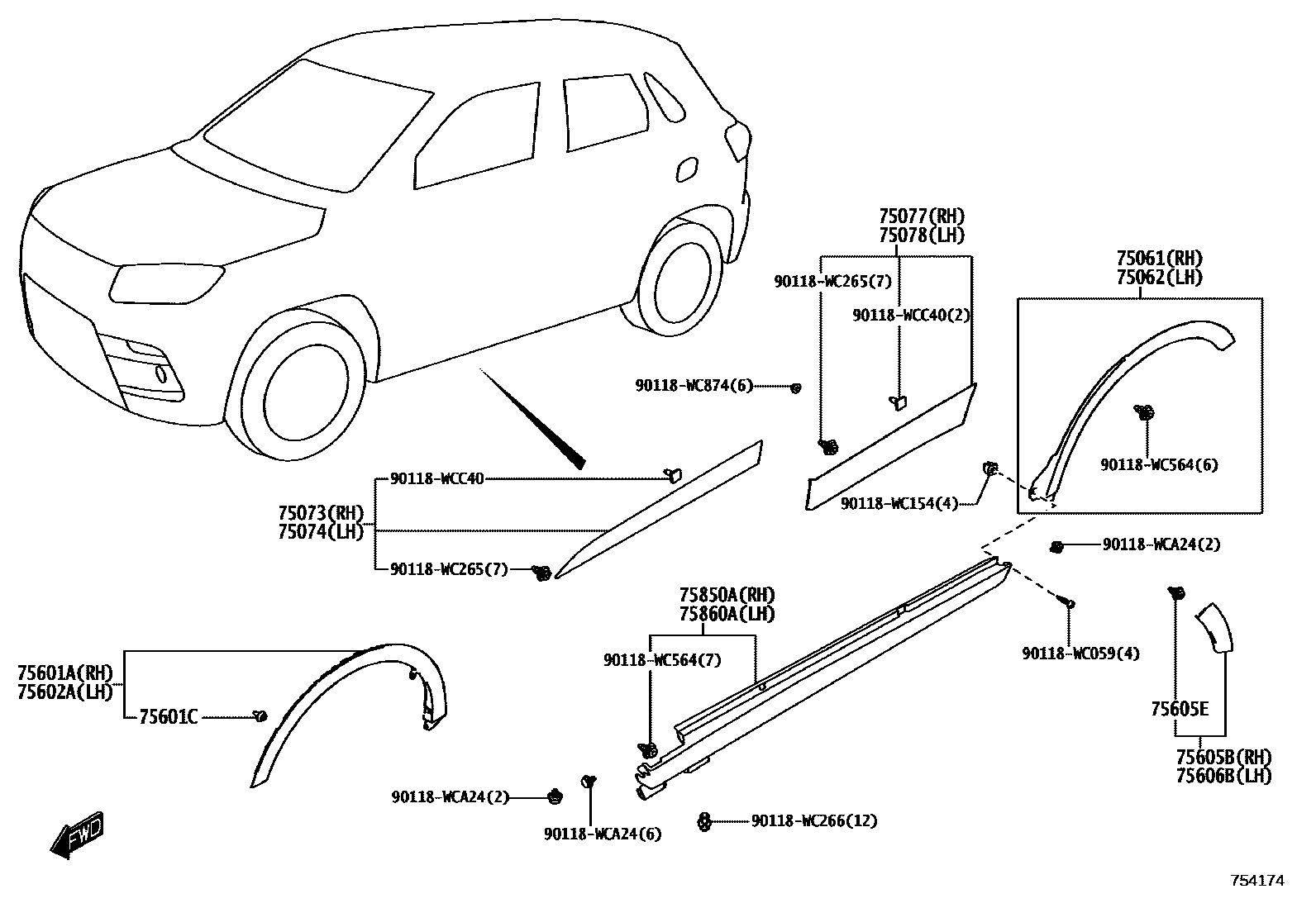

SIDE MOULDING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

75061MOULDING SET, OUTSIDE

main75061-WC001iK15B202012

75062MOULDING SET, OUTSIDE, LH

main75062-WC001iK15B202012

75073MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER RH

main75073-WC001iK15B202012

75074MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER LH

main75074-WC001iK15B202012

75077MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER RH

main75077-WC001iK15B202012

NO PAINT REQ.

75078MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER LH

main75078-WC001iK15B202012

NO PAINT REQ.

75601AMOULDING SUB-ASSY, FRONT FENDER, RH

main75601-WC001iK15B202012

NO PAINT REQ.

75601CCLIP, FRONT FENDER MOULDING

main90118-WC265×7iK15B202012

75602AMOULDING SUB-ASSY, FRONT FENDER, LH

main75602-WC001iK15B202012

NO PAINT REQ.

75605BMOULDING SUB-ASSY, QUARTER OUTSIDE, RH

main75605-WC001iK15B202012

NO PAINT REQ.

75605ECLIP, QUARTER OUTSIDE MOULDING

main90118-WC564×2iK15B202012

75606BMOULDING SUB-ASSY, QUARTER OUTSIDE, LH

main75606-WC001iK15B202012

NO PAINT REQ.

75850AMOULDING ASSY, BODY ROCKER PANEL, RH

main75850-WC001iK15B202012

75860AMOULDING ASSY, BODY ROCKER PANEL, LH

main75860-WC001iK15B202012

90118WC059

main90118-WC059

90118WC154

main90118-WC154

90118WC265

main90118-WC265

90118WC266

main90118-WC266

90118WC564

main90118-WC564

90118WC874

main90118-WC874

90118WCA24

main90118-WCA24

90118WCC40

main90118-WCC40

22 parts on this diagram · 6 diagrams in section
