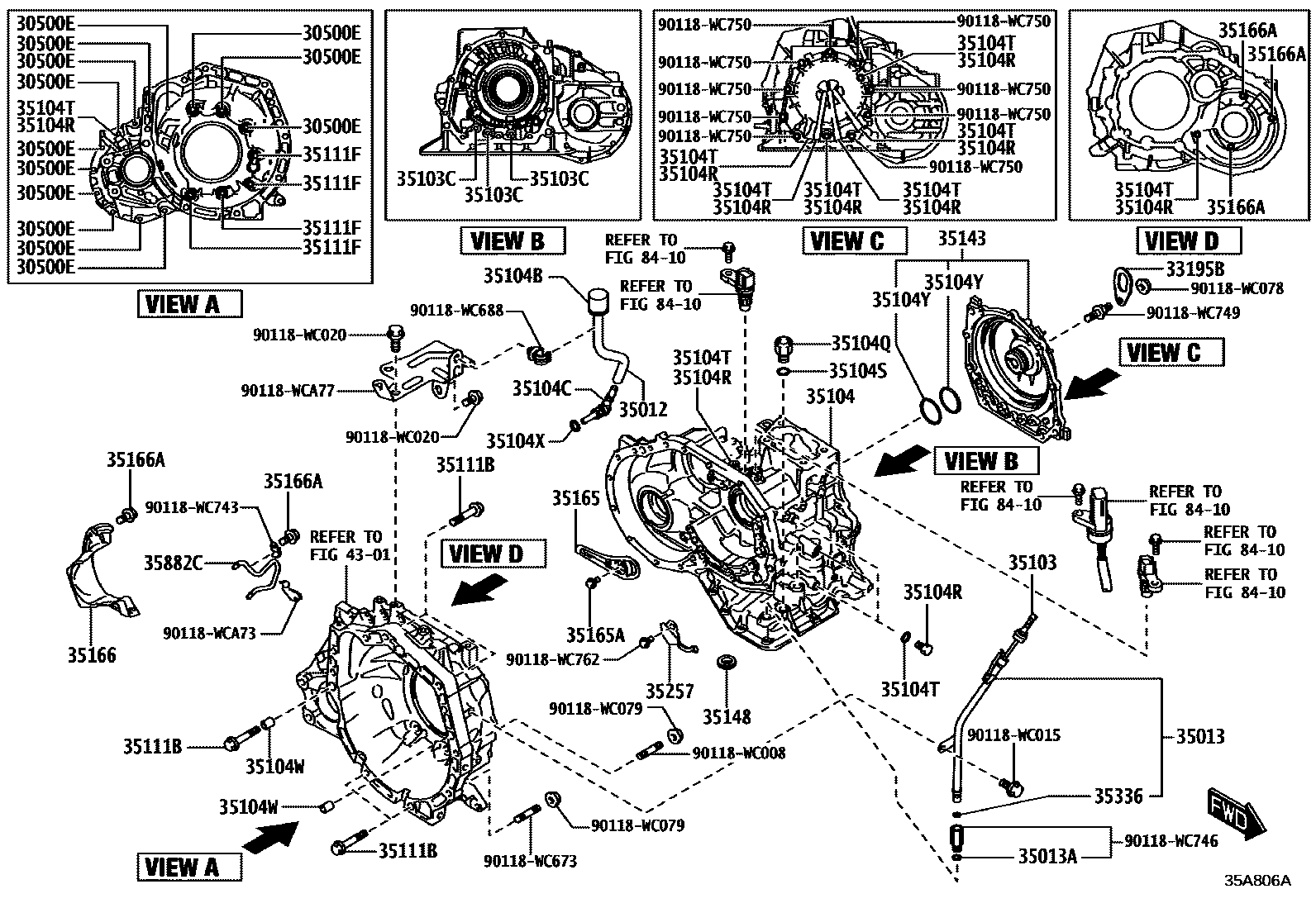

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

33195BHANGER, TRANSMISSION CASE

35012HOSE SUB-ASSY, TRANSMISSION BREATHER

main90118-WC697

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35178-WC003

main35013-WC003

35013ARING, O(FOR TRANSMISSION OIL FILLER TUBE)

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-WC005

main90118-WC786

35103CRING, O

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35617-WC001

main35104-WC001

main90118-WC066

main90118-WC695

main90118-WC699

main90118-WC745

main90118-WC784

main90118-WC786

main90118-WC787

main90118-WC788

35104BPLUG, BREATHER, NO.1 (ATM)

35104CPLUG, BREATHER, NO.2 (ATM)

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

35104XRING, O (FOR BREATHER PLUG)

35104YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

35111BBOLT (FOR TRANSMISSION HOUSING & ENGINE SETTING)

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

35143COVER, TRANSMISSION CASE, REAR

main33102-WC001

35148GASKET, GOVERNOR APPLY, NO.1

main90118-WC747

35165PLATE, TRANSMISSION CASE, NO.1

main35165-WC002

main90118-WC762

35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)

35166PLATE, TRANSMISSION CASE, NO.3

main35165-WC001

main90118-WC789

35166ABOLT (FOR TRANSMISSION CASE PLATE NO.3)

35257PLATE, OIL GUIDE

main33199-WC001

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90118-WCA10

35882CTUBE, DIFFERENTIAL GEAR LUBE APPLY

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

90118WC008

main90118-WC008

90118WC015

main90118-WC015

90118WC020

main90118-WC020

90118WC078

main90118-WC078

90118WC079

main90118-WC079

90118WC673

main90118-WC673

90118WC688

main90118-WC688

90118WC743

main90118-WC743

90118WC746

main90118-WC746

90118WC749

main90118-WC749

90118WC750

main90118-WC750

90118WC762

main90118-WC762

90118WCA73

main90118-WCA73

90118WCA77

main90118-WCA77

44 parts on this diagram · 2 diagrams in section
