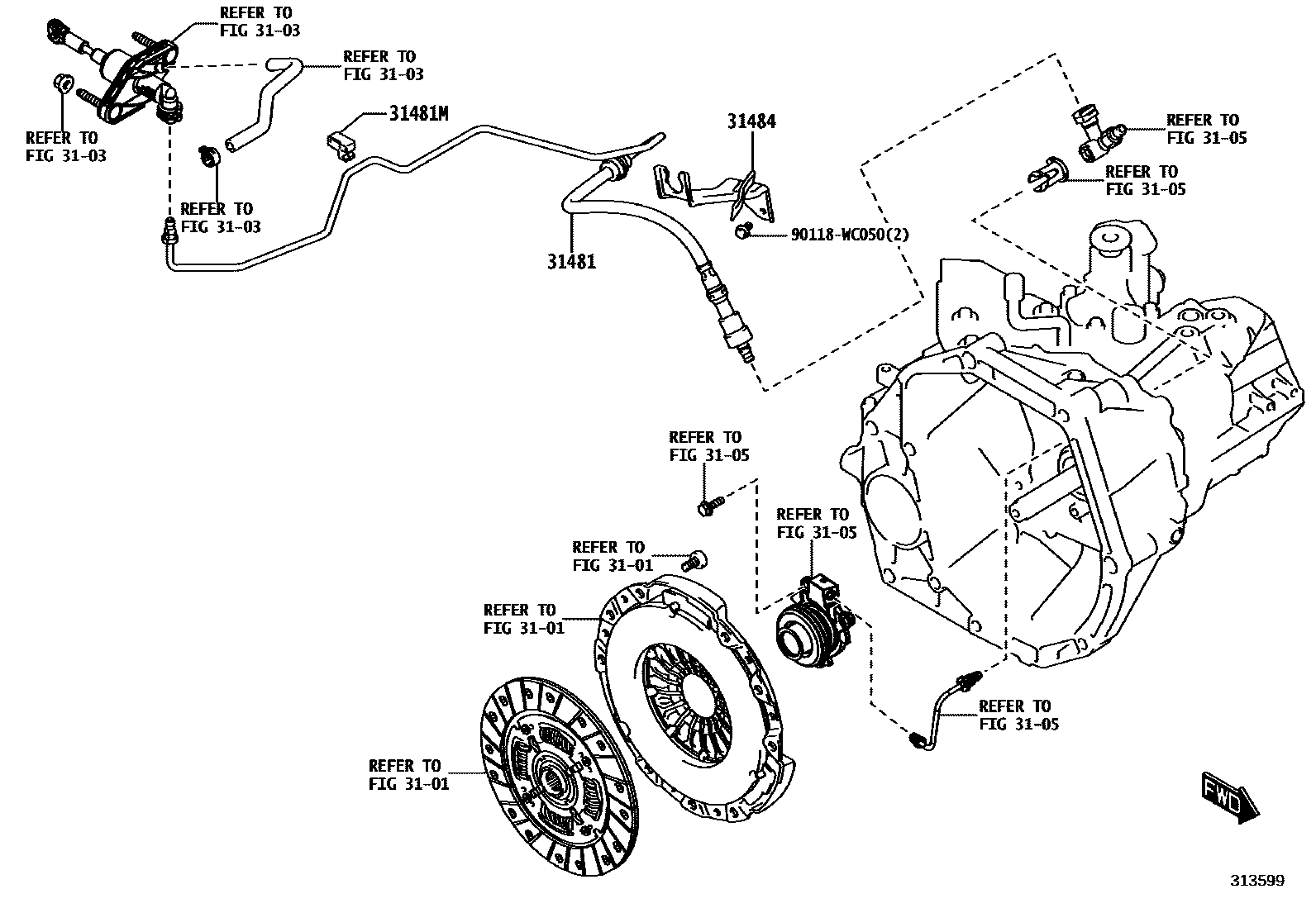

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

3101CLUTCH & RELEASE FORK

→ Go to FIG 31-01

3103CLUTCH MASTER CYLINDER

→ Go to FIG 31-03

3105CLUTCH RELEASE CYLINDER

→ Go to FIG 31-05

31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

main31481-WC004iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

31481MCLAMP(FOR CLUTCH MASTER CYLINDER TUBE)

main90118-WCA82iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

31484BRACKET, FLEXIBLE HOSE(FOR CLUTCH)

main31484-WC001iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

90118WC050

main90118-WC050

7 parts on this diagram · 2 diagrams in section
