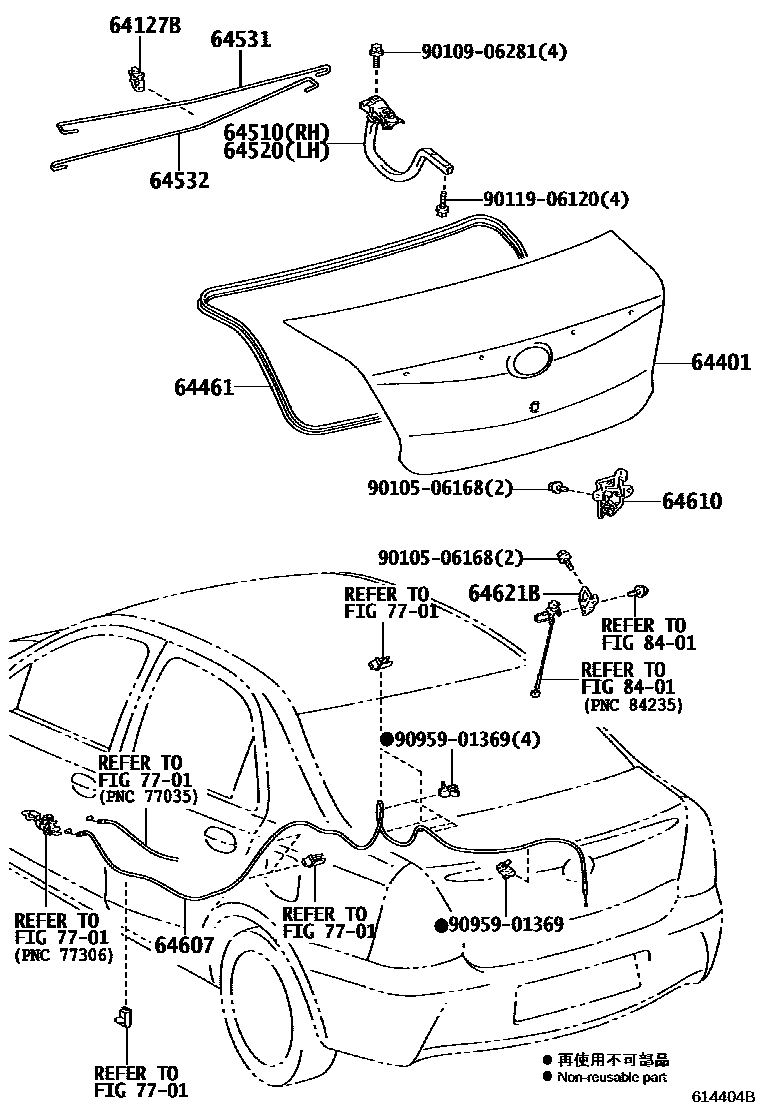

LUGGAGE COMPARTMENT DOOR & LOCK

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-0D030iNGK15..(4FC,6F)..BZ201209-202103

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-0D130iNGK15..X,XS201209-201307

main64401-0D131iNGK15..5F..(X,XS);NGK15..6F..(X,XS)..AGT201308

main64401-0D140iNGK15..XLS201209-201307

main64401-0D141iNGK15..(4FC,6F)..XLS..BZ201308-202103

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-0D070iNGK15..(4FC,6F)..BZ201209-202103

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-0D040iNGK15..(4FC,6F)..BZ201209-202103

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-0D040iNGK15..(4FC,6F)..BZ201209-202103

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-0D150iNGK15..(4FC,6F)..BZ201209-202103

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-0D150iNGK15..(4FC,6F)..BZ201209-202103

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-0D160iNGK15..(4FC,6F)..BZ201209-202103

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-0D060iNGK15..(4FC,6F)..BZ201209-202103

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-0D030iNGK15..(4FC,6F)..BZ201209-202103

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506168

main90105-06168

9010906281

main90109-06281

9011906120

main90119-06120

9095901369

main90959-01369

16 parts on this diagram · 1 diagram in section
