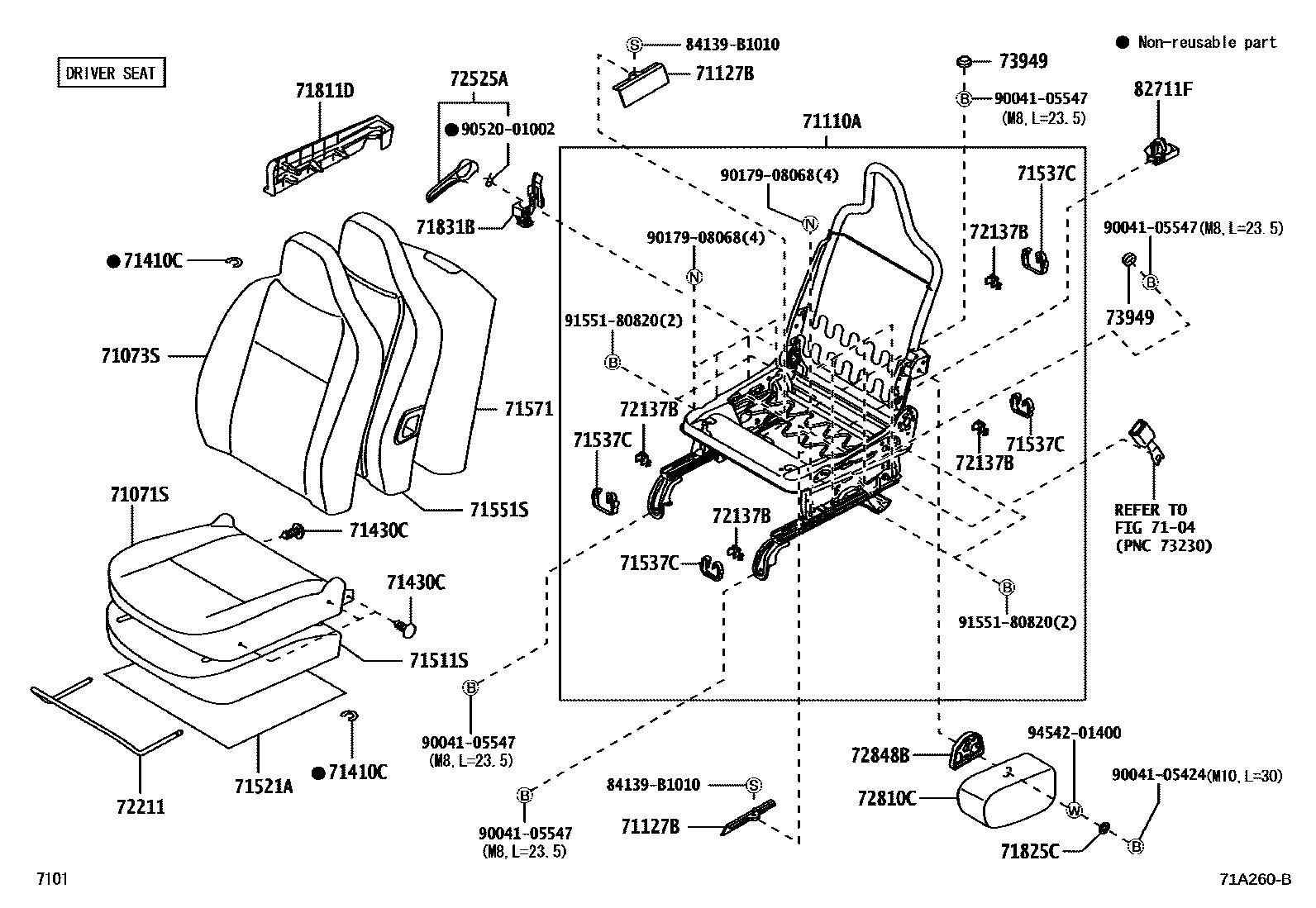

FRONT SEAT & SEAT TRACK

0001 1DRIVER SEAT 0004 1PASSENGER SEAT

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-BZJ40-E0iB401201606-201909

BROWN,TRIM4#

main71071-BZJ40-E1iB401201909-202207

DARK BROWN,TRIM4#

main71071-BZJ41-E2iB401..G;B401..5F..E202207

DARK BROWN,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-BZK40-E0iB401201606-201909

BROWN,TRIM4#

main71073-BZK40-E1iB401..E201909-202207

DARK BROWN,TRIM4#

main71073-BZK41-E2iB401..5F..E202207

DARK BROWN,TRIM4#

main71073-BZP20-E0iB401..G201909-202207

DARK BROWN,TRIM4#

main71073-BZP21-E1iB401..G202207

DARK BROWN,TRIM4#

71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH

main71110-BZ210iB401201909-202207

71127BPLATE, FR SEAT CUSHION PROTECTOR SET

main71127-BZ010×4iB401201909-202207

71410CCLIP(FOR FRONT SEAT CUSHION)

main9004A-46143×8iB401201909-202207

71430CCLIP

main90044-68185-B1×4iB401201606-201909

DK.GRAY,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-BZ350iB401201909-202207

71521APAD,FRONT SEAT CUSHION SILENCER

main71147-B1020iB401201909-202207

71537CPROTECTOR, FRONT SEAT CUSHION EDGE, RH

main71537-BZ030×4iB401201909-202207

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-BZ420iB401201909-202207

71571PAD, FRONT SEATBACK SILENCER, A

main71147-B2040iB401201909-202207

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-BZ240-B0iB401201909-202207

DK.GRAY,TRIM4#

71825CPLATE

main72815-B1010iB401201909-202207

71831BCOVER, FRONT SEAT HINGE, RH

main71831-BZ040-B0iB401201909-202207

DK.GRAY,TRIM4#

72137BCOVER, SEAT TRACK, RH

main72137-BZ040×4iB401201909-202207

72211HANDLE, SEAT TRACK ADJUSTING

main72211-BZ120iB401201606-201909

main72211-BZ160iB401201909-202207

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-BZ110-B0iB401201909-202207

DK.GRAY,TRIM4#

72810CARMREST ASSY, FRONT SEAT, CENTER

main72810-BZ120-E0iB401201606-201909

BROWN,TRIM4#

main72810-BZ120-E1iB401201909-202207

DARK BROWN,TRIM4#

main72810-BZ121-E4iB401..G;B401..5F..E202207

DARK BROWN,TRIM4#

72848BCAP, SEAT ARMREST, NO.1

main72848-BZ020-B0iB401..G;B401..5F..E202207

DK.GRAY,TRIM4#

73949CAP

main73949-BZ050×2iB401201909-202207

82711FCLAMP, WIRING HARNESS

main15549-B4010iB401201909-202207

84139B1010

main84139-B1010

9004105424

main90041-05424

9004105547

main90041-05547

9017908068

main90179-08068

9052001002

main90520-01002

9155180820

main91551-80820

9454201400

main94542-01400

29 parts on this diagram · 2 diagrams in section
