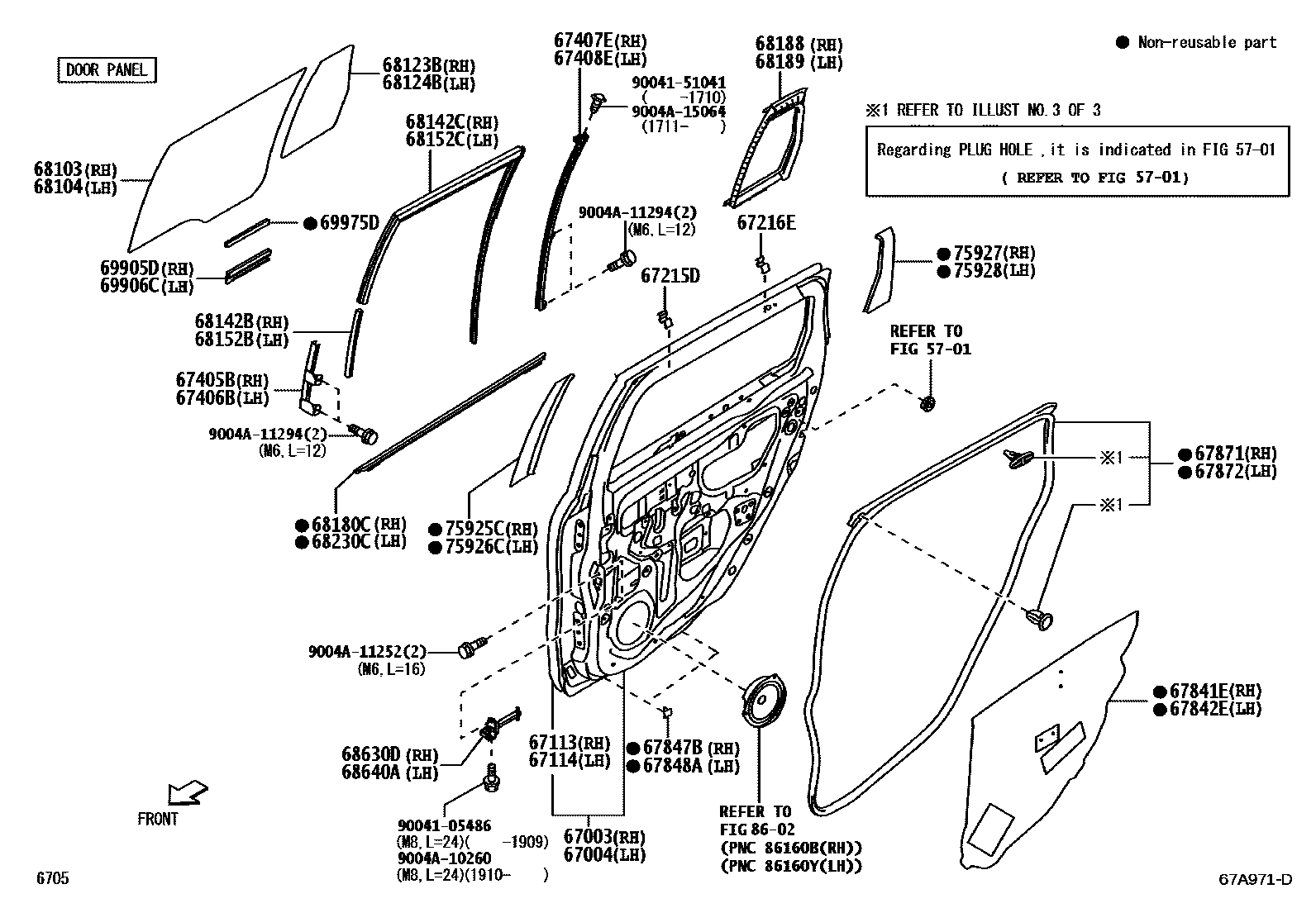

REAR DOOR PANEL & GLASS
5701HOLE PLUG
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67215DSTOP, REAR DOOR WINDOW, UPPER
67216ESTOPPER, REAR DOOR GLASS, UPPER NO.2
67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67847BSEAL, REAR DOOR VENT, RH NO.1
67848ASEAL, REAR DOOR VENT, LH NO.1
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
68142BRUN, REAR DOOR WINDOW, RH
68142CRUN, REAR DOOR GLASS, RH
68152BRUN, REAR DOOR WINDOW, LH
68152CRUN, REAR DOOR GLASS, LH
68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
69905DCHANNEL SUB-ASSY, SLIDE DOOR GLASS, RH
69906CBRACKET SUB-ASSY, REAR DOOR GLASS, LH
69975DFILLER, REAR DOOR GLASS CHANNAL
75925CTAPE, BLACK OUT, NO.3 RH
TUYAKESI BLACK DUMMYCOLOR,1G3 ,4T3 ,R40 ,R71 ,S28 ,W09
75926CTAPE, BLACK OUT, NO.3 LH
TUYAKESI BLACK DUMMYCOLOR,1G3 ,4T3 ,R40 ,R71 ,S28 ,W09
75927TAPE, BLACK OUT, NO.4 RH
TUYAKESI BLACK DUMMYCOLOR,1G3 ,4T3 ,R40 ,R71 ,S28 ,W09
75928TAPE, BLACK OUT, NO.4 LH
TUYAKESI BLACK DUMMYCOLOR,1G3 ,4T3 ,R40 ,R71 ,S28 ,W09
8602SPEAKER
9004105486
main90041-05486
9004151041
main90041-51041
9004A10260
main9004A-10260
9004A11252
main9004A-11252
9004A11294
main9004A-11294
9004A15064
main9004A-15064
45 parts on this diagram · 3 diagrams in section
