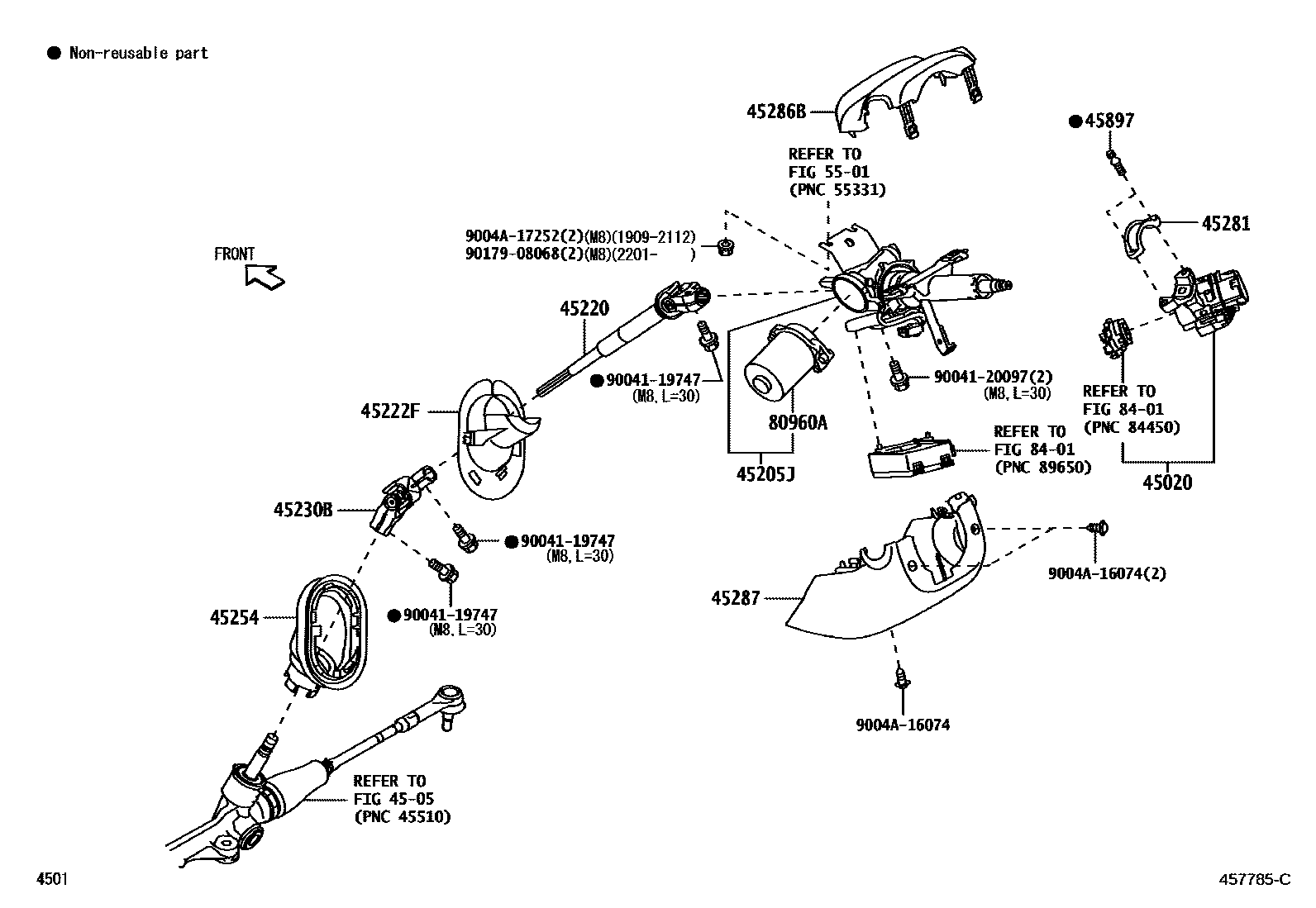

STEERING COLUMN & SHAFT

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-BZ130iB401..5F201909-202207

main45020-BZ151iB401..4FC..G202207

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-BZ110iB401201606-201909

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-BZ230iB401201909-202207

45222FCOVER, DUST

main45222-BZ080iB401201909-202207

45230BJOINT ASSY, STEERING SHAFT UNIVERSAL

main45290-BZ100iB401201909-202207

45254SHIELD, STEERING COLUMN HOLE

main45254-BZ140iB401201909-202207

45281HOUSING, STEERING COLUMN

main45281-BZ070iB401201909-202207

45286BCOVER, STEERING COLUMN, UPR

main45286-BZ220-B0iB401201909-202207

DK.GRAY,TRIM4#

45287COVER, STEERING COLUMN, LWR

main45287-BZ240-B0iB401201909-202207

DK.GRAY,TRIM4#

45897BOLT, STEERING LOCK SET

main45897-B2010×2iB401201909-202207

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

80960AMOTOR SET, POWER STEERING

main80960-B9110iB401201909-202207

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004119747

main90041-19747

9004120097

main90041-20097

9004A16074

main9004A-16074

9004A17252

main9004A-17252

9017908068

main90179-08068

19 parts on this diagram · 1 diagram in section
