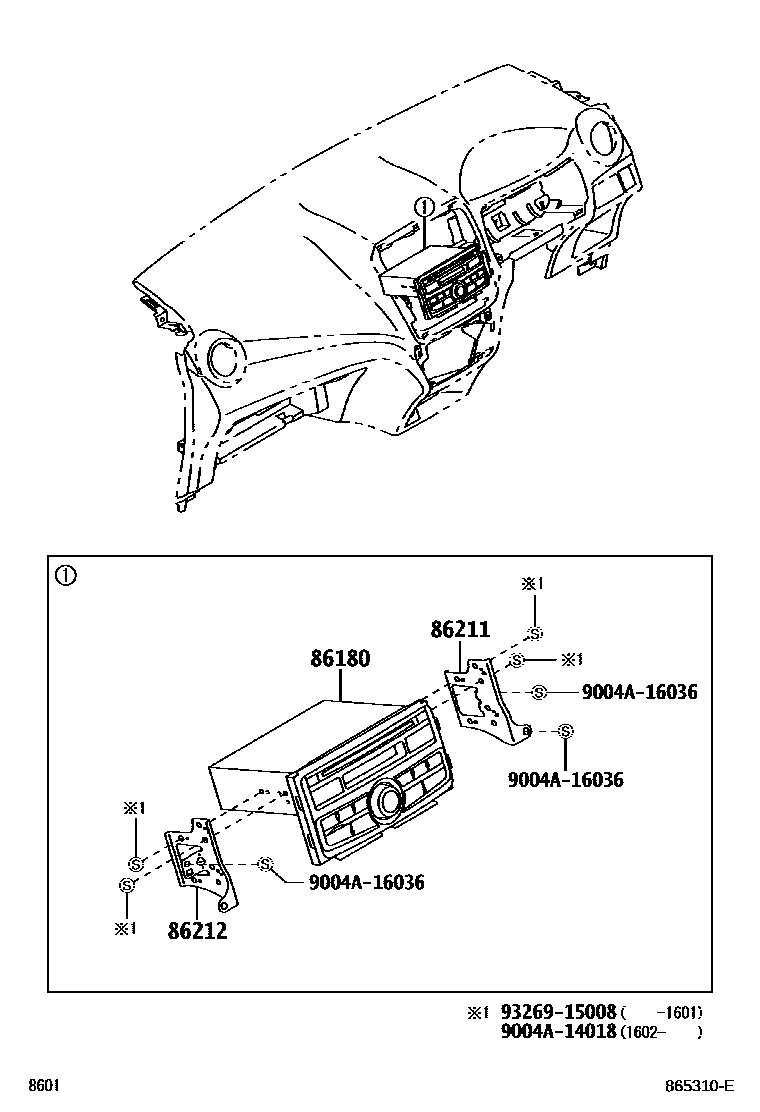

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0004 1 0006 1 0008 1

86180TUNER ASSY, STEREO COMPONENT

main86180-BZ370-B0iB100..HI..AGYA201212-201704

PANASONIC,AUDIO-FRONT SPEAKER 16CM*2,SILVER,TRIM1#; PANASONIC,SILVER,TRIM1#

86211BRACKET, RADIO, NO.1

main86211-BZ170iB100..HI,MID; B100..HI..AGYA201212-201704

AUDIO-FRONT SPEAKER 16CM*2

main86211-BZ171supersedes 86211-BZ360iB10#..WIGO; B100..ATM..AGYA201704-202003

BRUNEI

main86211-BZ360iB100..ATM..AGYA; B100..HIS..AGYA; B101..ATM..AGYA; B101..WIGO202003

BRUNEI; GENERAL EXP(W/O HEATER); SOUTH AFRICA; SRI LANKA

86212BRACKET, RADIO, NO.2

main86212-BZ170iB100..HI,MID; B100..HI..AGYA201212-201704

AUDIO-FRONT SPEAKER 16CM*2

main86212-BZ171supersedes 86212-BZ360iB10#..WIGO; B100..ATM..AGYA201704-202003

BRUNEI

main86212-BZ360iB100..ATM..AGYA; B100..HIS..AGYA; B101..ATM..AGYA; B101..WIGO202003

BRUNEI; GENERAL EXP(W/O HEATER); SOUTH AFRICA; SRI LANKA

9004A14018

main9004A-14018

9004A16036

main9004A-16036

9326915008

main93269-15008

6 parts on this diagram · 5 diagrams in section
