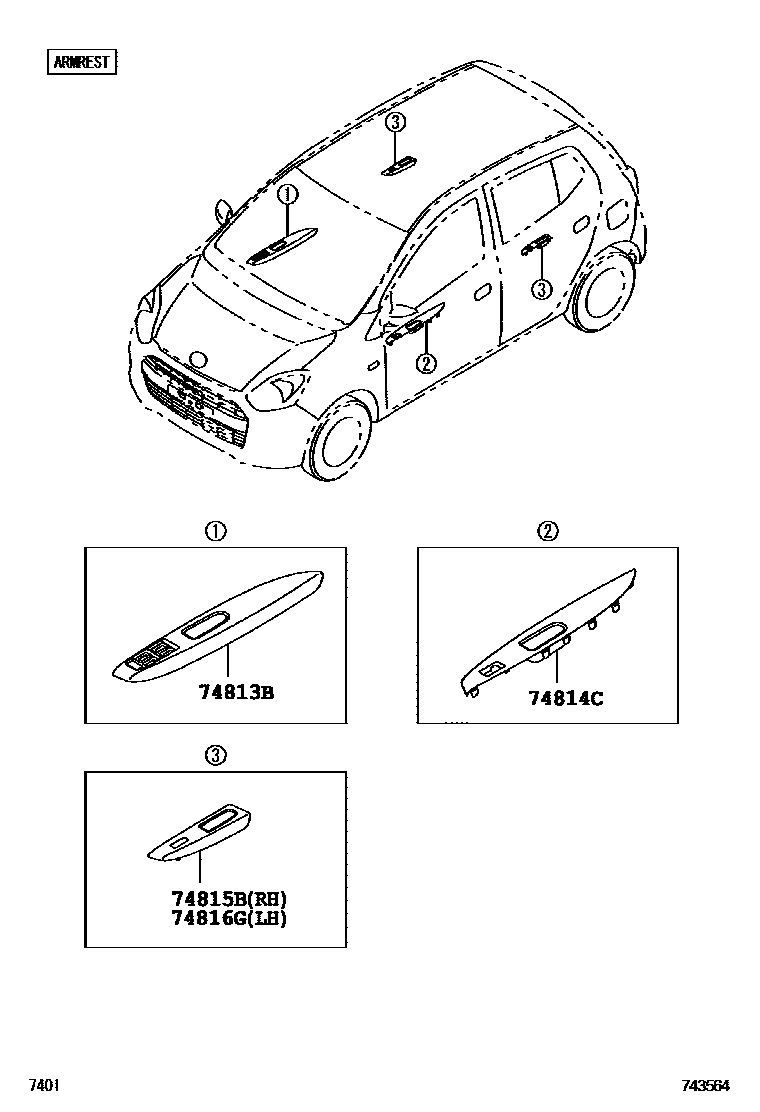

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1ARMREST 0004 1ARMREST 0005 1VISOR & ASSIST GRIP

74813BHANDLE, FRONT DOOR PULL, RH

main74813-BZ030-B1iB100..MID..AGYA201212-201704

DK.GRAY,TRIM1#

main74813-BZ040-B1iB100..MID..WIGO201401-201704

DK.GRAY,TRIM1#

main74813-BZ050-B0iB100..HI..AGYA201212-201704

SILVER,TRIM1#

main74813-BZ060-B0iB100..HI..WIGO201401-201704

SILVER,TRIM1#

main74813-BZ190-B0iB10#..AGYA201704-202003

SILVER,TRIM1#

main74813-BZ190-B1iB10#..AGYA202003

SILVER,TRIM2#

main74813-BZ200-B0iB10#..WIGO201704-202003

SILVER,TRIM1#

main74813-BZ200-B1iB10#..WIGO202003

SILVER,TRIM2#

74814CHANDLE, FRONT DOOR PULL, LH

main74814-BZ030-B1iB100..MID..AGYA201212-201704

DK.GRAY,TRIM1#

main74814-BZ040-B1iB100..MID..WIGO201401-201704

DK.GRAY,TRIM1#

main74814-BZ050-B0iB100..HI..AGYA201212-201704

SILVER,TRIM1#

main74814-BZ060-B0iB100..HI..WIGO201401-201704

SILVER,TRIM1#

main74814-BZ180-B0iB10#..AGYA201704-202003

SILVER,TRIM1#

main74814-BZ180-B1iB10#..AGYA202003

SILVER,TRIM2#

main74814-BZ190-B0iB10#..WIGO201704-202003

SILVER,TRIM1#

main74814-BZ190-B1iB10#..WIGO202003

SILVER,TRIM2#

74815BHANDLE, REAR DOOR PULL

main74815-BZ050-B0iB100..MID201212-201704

DK.GRAY,TRIM1#

main74815-BZ060-B0iB100..HI201212-201704

SILVER,TRIM1#

main74815-BZ170-B0iB10#201704-202003

SILVER,TRIM1#

main74815-BZ170-B1iB10#202003

SILVER,TRIM2#

74816GHANDLE, REAR DOOR PULL, LH

main74816-BZ040-B0iB100..MID201212-201704

DK.GRAY,TRIM1#

main74816-BZ050-B0iB100..HI201212-201704

SILVER,TRIM1#

main74816-BZ160-B0iB10#201704-202003

SILVER,TRIM1#

main74816-BZ160-B1iB10#202003

SILVER,TRIM2#

4 parts on this diagram · 5 diagrams in section
