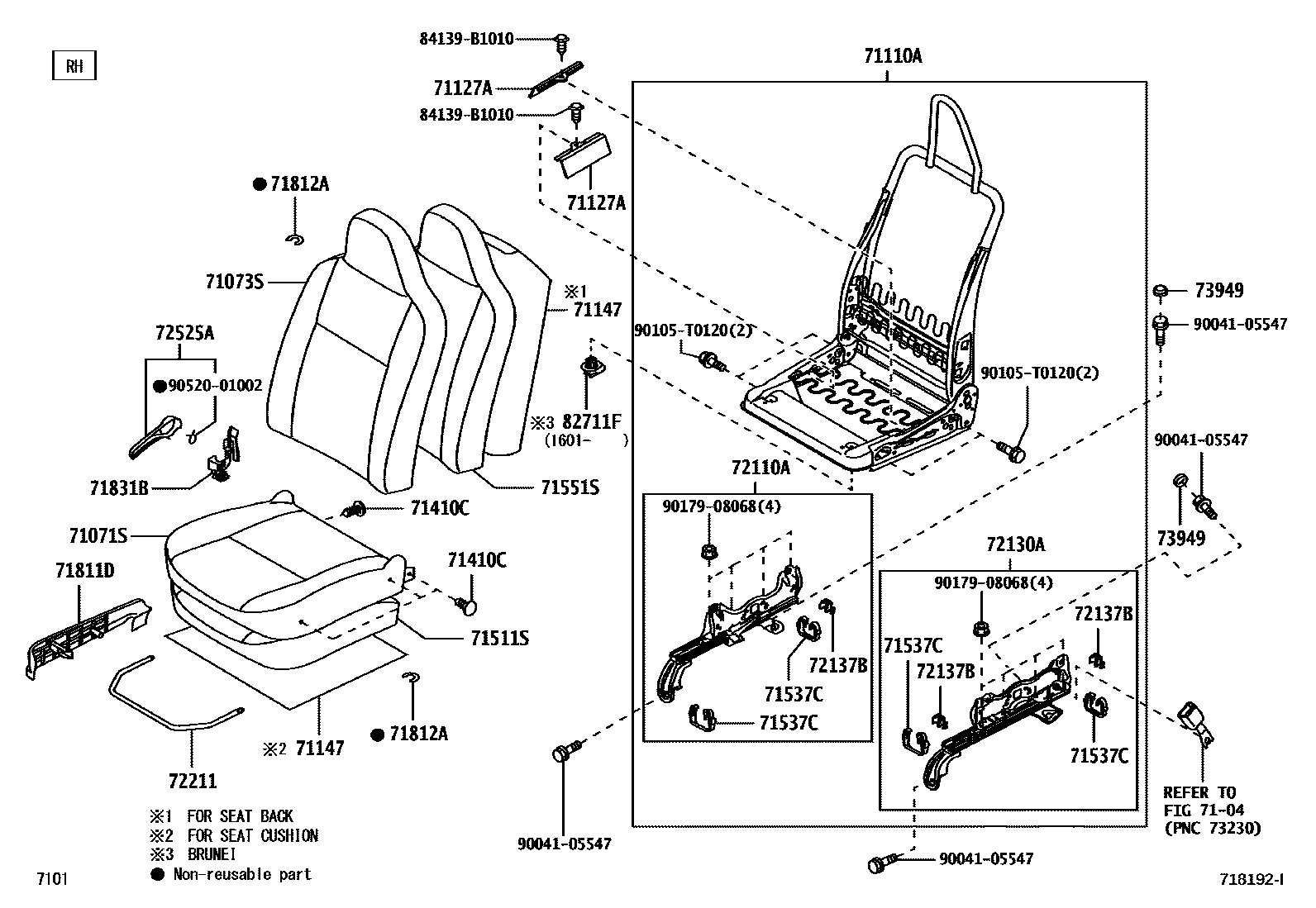

FRONT SEAT & SEAT TRACK

0001 1RH 0002 1LH 0003 1 0005 1

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-BZC50-B1iB100..LO201212-201704

GRAY,TRIM1#

main71071-BZC60-B1iB100..HI,MID201212-201704

GRAY,TRIM1#

main71071-BZJ10-C0iB10#202003

BLACK,TRIM2#

main71071-BZJ90-C0iB10#201704-202003

-,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-BZC80-B0iB100..LO201212-201704

GRAY,TRIM1#

main71073-BZC90-B0iB100..HI,MID201212-201704

GRAY,TRIM1#

main71073-BZK10-C0iB10#202003

BLACK,TRIM2#

main71073-BZK90-C0iB10#201704-202003

-,TRIM1#

71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH

main71110-BZ150iB10#201212-202003

71127APLATE, FR0NT SEAT CUSHION COVER SET

main71127-BZ010iB10#201212-202003

71147SILENCER, SEAT SPRING

main71147-B1020iB10#201212-202003

FOR SEAT CUSHION

main71147-B2040iB10#201212-202003

FOR SEAT BACK

71410CCLIP(FOR FRONT SEAT CUSHION)

main90044-68185-B1iB10#202003

DK.GRAY,TRIM2#

main90044-68185-B1iB100201212-202003

DK.GRAY,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-BZ410iB100201212-201704

main71501-BZ450iB10#201704-202003

71537CPROTECTOR, FRONT SEAT CUSHION EDGE, RH

main71537-BZ030iB10#201212-202003

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-BZ330iB100201212-201704

main71505-BZ470iB10#201704-202003

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-BZ170-B0iB10#201212-202003

DK.GRAY,TRIM1#

main71811-BZ170-B0iB10#202003

DK.GRAY,TRIM2#

71812ARING, HOG, SMALL (FOR FRONT SEAT)

main9004A-46143iB10#201212-202003

71831BCOVER, FRONT SEAT HINGE, RH

main71831-BZ040-B0iB10#201212-202003

DK.GRAY,TRIM1#

main71831-BZ040-B0iB10#202003

DK.GRAY,TRIM2#

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-BZ200iB10#201212-202003

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-BZ240iB10#201212-202003

72137BCOVER, SEAT TRACK, RH

main72137-BZ040iB10#201212-202003

72211HANDLE, SEAT TRACK ADJUSTING

main72211-BZ100iB10#201212-202003

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-BZ110-B0iB10#201212-202003

DK.GRAY,TRIM1#

main72525-BZ110-B0iB10#202003

DK.GRAY,TRIM2#

73949CAP

main73949-BZ050iB10#201212-202003

82711FCLAMP, WIRING HARNESS

main15549-B4010iB10#201704-202003

84139B1010

main84139-B1010

9004105547

main90041-05547

90105T0120

main90105-T0120

9017908068

main90179-08068

9052001002

main90520-01002

25 parts on this diagram · 4 diagrams in section
