5701HOLE PLUG

→ Go to FIG 57-01

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-BZ400i201212-201410

main67003-BZ410i201410-201704

main67003-BZ500i201212-201410

main67003-BZ510i201410-201704

main67003-BZ640i201704-202003

GRADE PACKAGE-TRD

main67003-BZ650i201704-202003

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-BZ400i201212-201410

main67004-BZ410i201410-201704

main67004-BZ500i201212-201410

main67004-BZ510i201410-201704

main67004-BZ640i202003

main67004-BZ650i201704-202003

67113PANEL, REAR DOOR, OUTER RH

main67113-BZ270i202003

main67113-BZ310i201212-201704

67114PANEL, REAR DOOR, OUTER LH

main67114-BZ270i201212-201704

main67114-BZ310i201212-201704

67215DSTOP, REAR DOOR WINDOW, UPPER

main67216-B6010×2i201704-202003

67216ESTOPPER, REAR DOOR GLASS, UPPER NO.2

main67216-B6020×2i201704-202003

67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

main67405-BZ040i202003

67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

main67406-BZ040i202003

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-BZ100i201704-202003

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-BZ100i202003

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-BZ260i201212-201704

W/O SPEAKER HOLE

main67841-BZ270i201212-201704

W/O SPEAKER HOLE

main67841-BZ330i201704-201706

W/O SPEAKER HOLE

main67841-BZ340i201704-201706

REAR SPEAKER 16CM*2(DOOR),W/SPEAKER; W/SPEAKER

main67841-BZ360i201410-201704

W/ SPEAKER HOLE

main67841-BZ420i202003

W/O SPEAKER HOLE

main67841-BZ430i202003

FR:10CM*2,RR:16CM*2(DOOR),W/SPEAKER; W/SPEAKER

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-BZ260i201212-201704

W/O SPEAKER HOLE

main67842-BZ080i201212-201410

W/O SPEAKER HOLE

main67842-BZ100i201704-201706

W/O SPEAKER HOLE

main67842-BZ110i201704-201706

REAR SPEAKER 16CM*2(DOOR),W/SPEAKER; W/SPEAKER

main67842-BZ140i201410-201704

W/ SPEAKER HOLE

main67842-BZ200i202003

W/O SPEAKER HOLE

main67842-BZ210i202003

FR:10CM*2,RR:16CM*2(DOOR),W/SPEAKER; W/SPEAKER

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-B2450×29i201704-202003

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-B2460×29i201704-202003

67869LCLIP, REAR DOOR WEATHERSTRIP

main67869-B2010×2i201212-201704

67871WEATHERSTRIP, REAR DOOR, RH

main67871-BZ080i202003

67872WEATHERSTRIP, REAR DOOR, LH

main67872-BZ080i201704-202003

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-BZ270i201704-202003

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-BZ260i201704-202003

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-BZ080i202003

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-BZ080i201212-201704

T=3.1 GREEN

68142RUN, REAR DOOR GLASS

main68144-BZ040×2i201212-201406

main68144-BZ041×2i201407-201704

68142CRUN, REAR DOOR GLASS, RH

main68142-BZ070i201212-201406

main68142-BZ071i201704-202003

68152CRUN, REAR DOOR GLASS, LH

main68152-BZ070i201212-201406

main68152-BZ071i201407-201704

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68163-BZ080i201704-202003

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-BZ040i201704-202003

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-BZ040i201704-202003

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68164-BZ070i201704-202003

68630DCHECK ASSY, REAR DOOR, RH

main68630-BZ060i201212-201409

main68630-BZ061i201704-202003

68640ACHECK ASSY, REAR DOOR, LH

main68630-BZ060i201212-201409

main68630-BZ061i201704-202003

69905DCHANNEL SUB-ASSY, SLIDE DOOR GLASS, RH

main69905-BZ020i201704-202003

69906CBRACKET SUB-ASSY, REAR DOOR GLASS, LH

main69906-BZ010i201704-202003

69975DFILLER, REAR DOOR GLASS CHANNAL

main69975-BZ010×2i201704-202003

75925CTAPE, BLACK OUT, NO.3 RH

main75925-BZ030-C0i201704-202003

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,R40 ,R71 ,W09 ,Y07; TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,R40 ,W09 ,Y07

75926CTAPE, BLACK OUT, NO.3 LH

main75926-BZ030-C0i201704-202003

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,R40 ,R71 ,W09 ,Y07; TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,R40 ,W09 ,Y07

75767BZ010MOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75767-BZ010

9004871298

main90048-71298

9004A10260

main9004A-10260

9004A11244

main9004A-11244

9004A11294

main9004A-11294

9004A15064

main9004A-15064

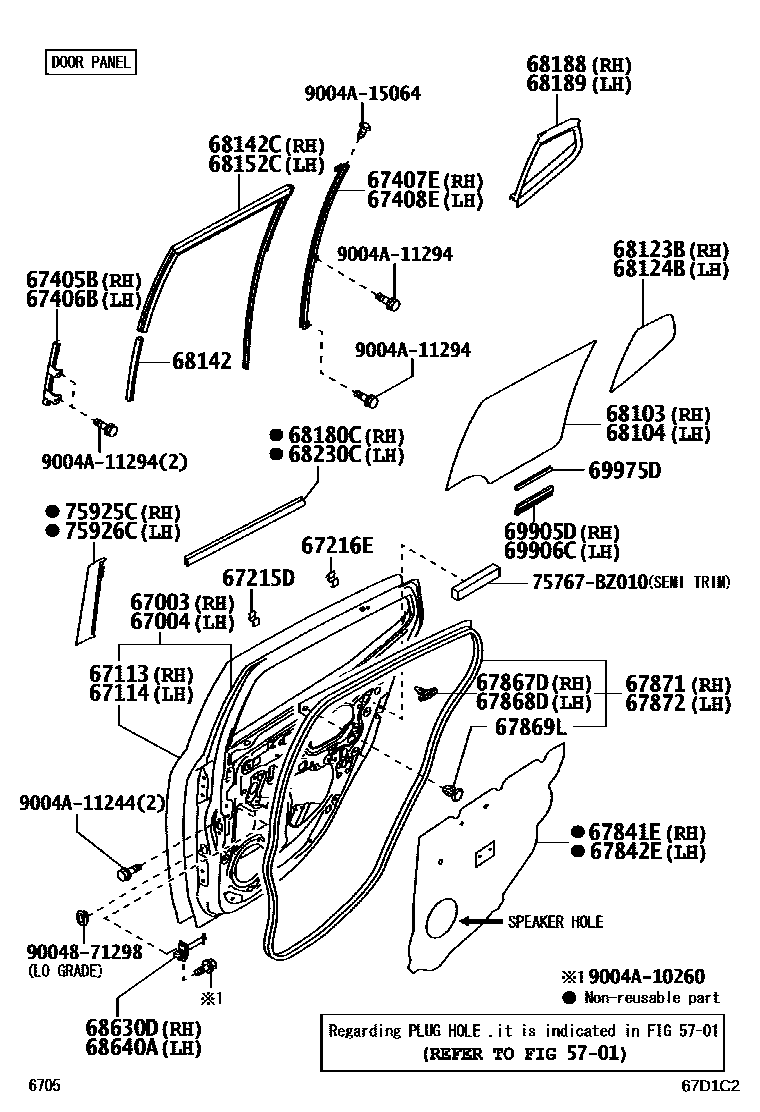

REAR DOOR PANEL & GLASS
