Toyota 811210 — SEAT BELT & CHILD RESTRAINT SEAT

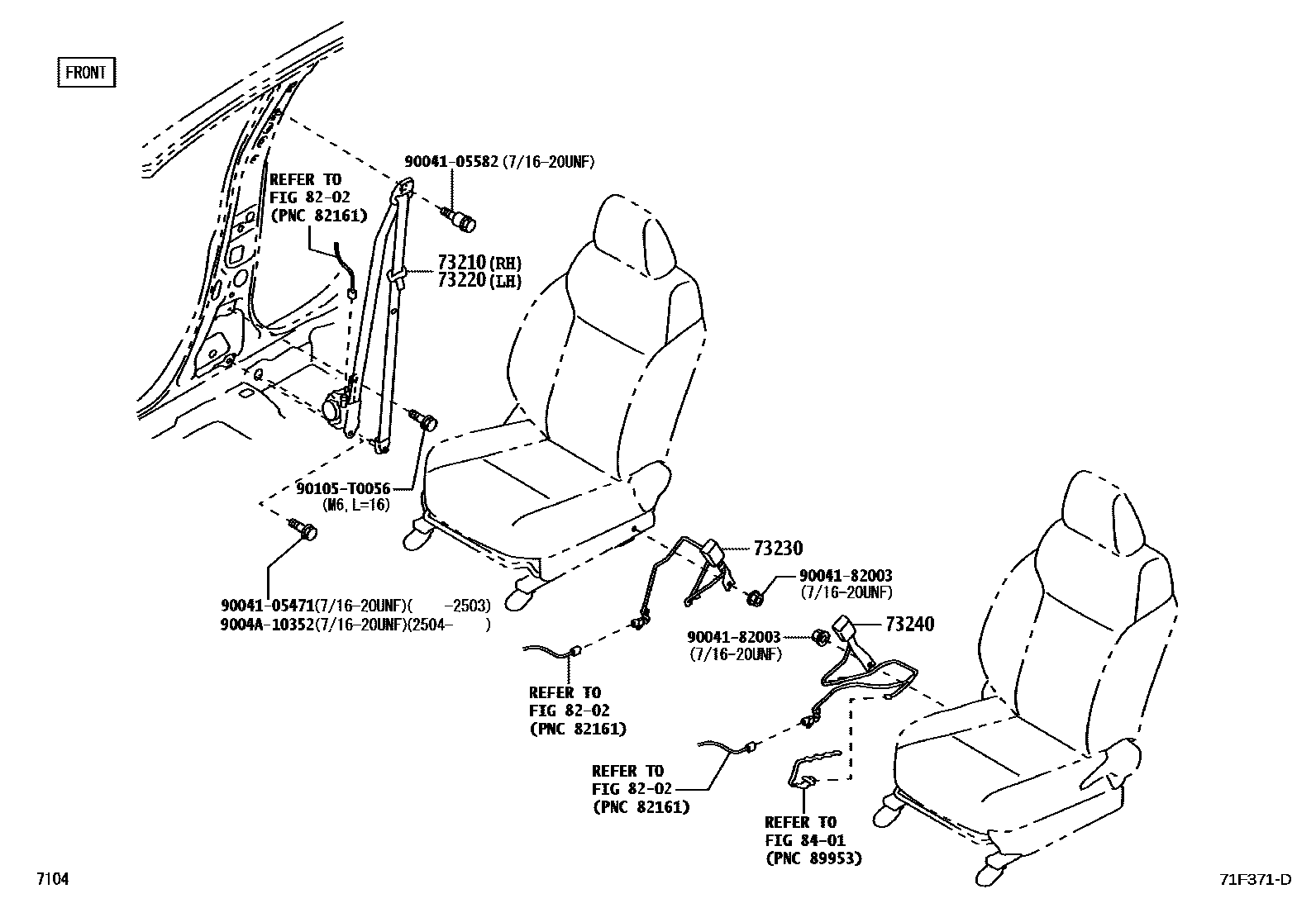

Parts diagram

73210BELT ASSY, FRONT SEAT OUTER, RH

73220BELT ASSY, FRONT SEAT OUTER, LH

73230BELT ASSY, FRONT SEAT INNER, RH

73240BELT ASSY, FRONT SEAT INNER, LH

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004105471

9004105582

9004182003

9004A10352

90105T0056

11 parts on this diagram · 4 diagrams in section

SEAT BELT & CHILD RESTRAINT SEAT for Toyota 811210

This section contains 16 genuine Toyota parts for the SEAT BELT & CHILD RESTRAINT SEAT system of the Toyota 811210. Key components include: BELT ASSY, FRONT SEAT OUTER, RH, BELT ASSY, FRONT SEAT OUTER, LH, BELT ASSY, FRONT SEAT INNER, RH, BELT ASSY, FRONT SEAT INNER, LH, BELT ASSY, REAR SEAT, OUTER CENTER.
