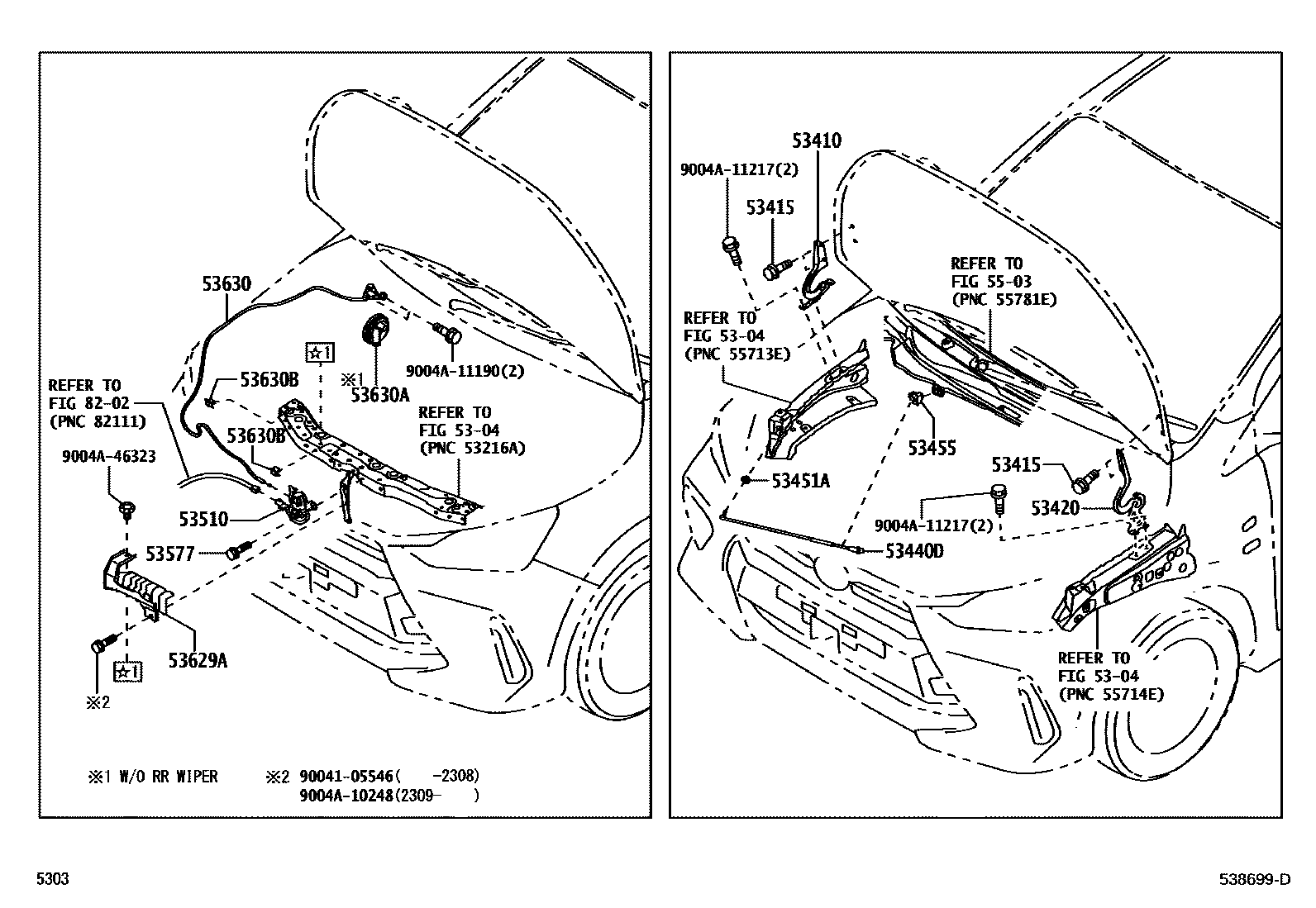

HOOD LOCK & HINGE

0001 1 0002 1

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53410HINGE ASSY, HOOD, RH

main53401-BZ100iA35#202303

53415BOLT, HOOD HINGE

main9004A-11217×4iA35#202303

M6,L=14

53420HINGE ASSY, HOOD, LH

main53402-BZ100iA35#202303

53440DSUPPORT ASSY, HOOD

main53440-BZ120iA35#202303

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90044-80679iA35#202303

53455CLAMP, HOOD SUPPORT ROD

main53455-BZ140iA35#202303

53510LOCK ASSY, HOOD

main53510-BZ510iA350..RHD;A351..RHD..(E,G)202303

main53510-BZ520iA351..N..IDN202303

main53510-BZ530iA350..E;A351..LHD202303

main53510-BZ540iA350..5F..E; A350..LHD..N202306

DESTINATION PACKAGE(ASIA)-LAOS

53577BOLT, HOOD LOCK

main90105-T0051×3iA35#202303

M6,L=16

53629ACOVER, HOOD LOCK CONTROL CABLE

main53629-BZ130iA35#202303

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-BZ440iA35#..RHD202303

main53630-BZ470iA35#..LHD202303

53630AGROMMET(FOR HOOD LOCK CONTROL CABLE)

main85373-BZ090iA351..N;A350..LHD;A351..LHD..E202303

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90467-09043×2iA35#202303

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

8202WIRING & CLAMP

→ Go to FIG 82-02

9004105546

main90041-05546

9004A10248

main9004A-10248

9004A11190

main9004A-11190

9004A11217

main9004A-11217

9004A46323

main9004A-46323

20 parts on this diagram · 2 diagrams in section
