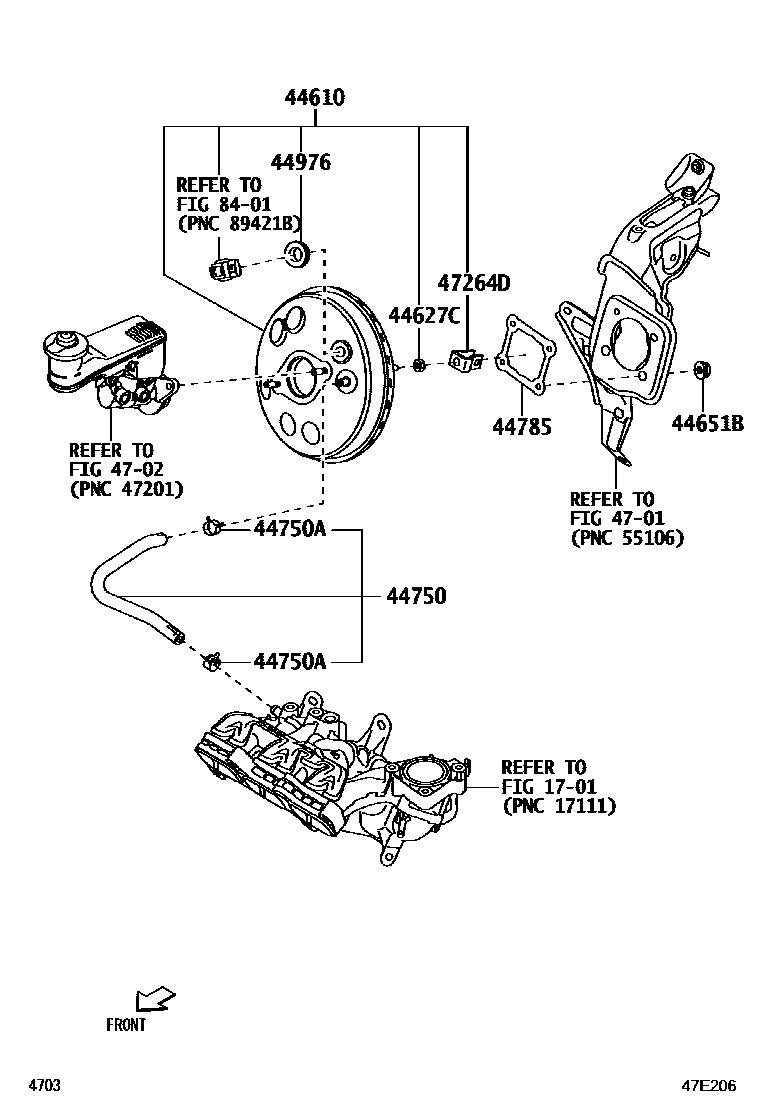

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-BZB50iA351..RHD202303

main44610-BZB60iA350..RHD202306

main44610-BZB70iA35#..LHD202303

44627CNUT, BOOSTER SLEEVE CYLINDER

main9004A-17229iA35#202303

44651BNUT, BOOSTER

main90041-79300iA35#202303

44750HOSE ASSY, VACUUM

main44750-BZ360iA351..RHD202303

main44750-BZ380iA351..LHD202303

main44750-BZ580iA350..RHD202306

main44750-BZ590iA350..LHD202306

44750ACLIP(FOR VACUUM HOSE ASSY)

main90044-67161iA35#202303

44785GASKET, BRAKE BOOSTER

main47275-BZ010iA35#202303

44976SEAL, BOOSTER

main44685-B2010iA35#202303

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-BZ110iA35#..RHD202303

main47264-BZ120iA35#..LHD202303

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

12 parts on this diagram · 3 diagrams in section
