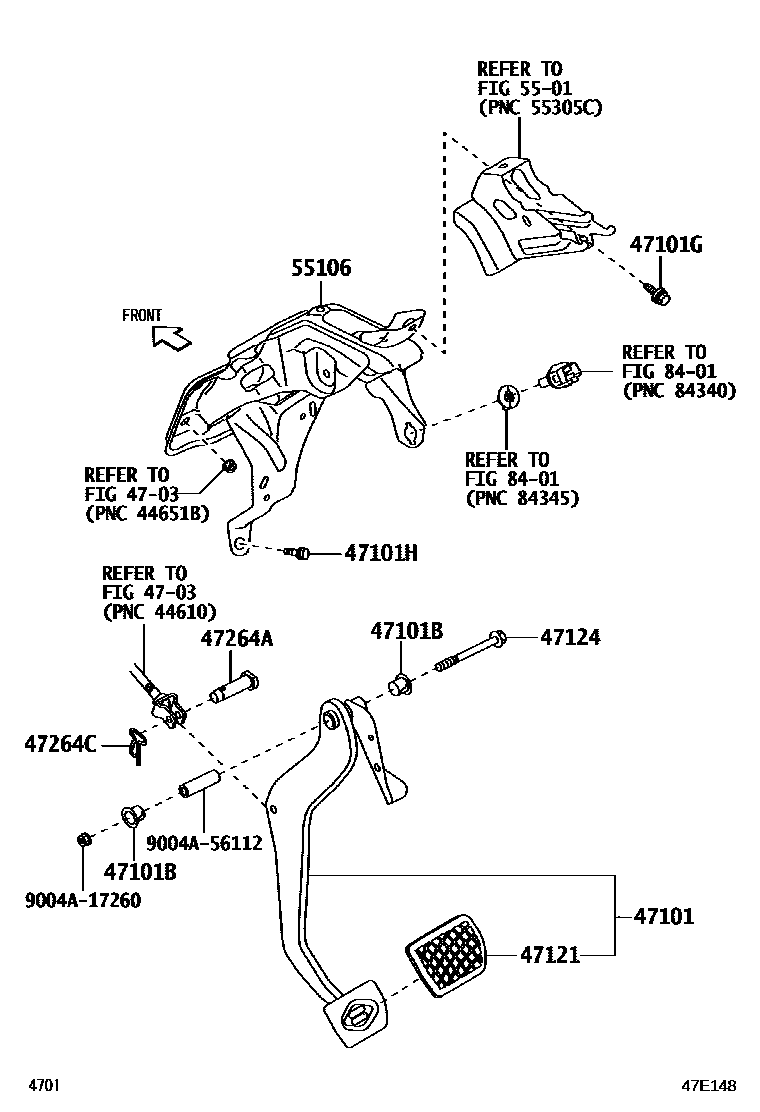

BRAKE PEDAL & BRACKET

0001 1RHD 0002 1LHD

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47101PEDAL SUB-ASSY, BRAKE

main47110-BZ670iA35#..RHD..CVT202303

main47110-BZ680iA35#..RHD..5F202303

main47110-BZ690iA35#..LHD..CVT202303

main47110-BZ700iA35#..LHD..5F202303

47101BBUSH(FOR BRAKE PEDAL)

main9004A-38094×2iA35#202303

47101GBOLT, BRAKE PEDAL STOP, NO.1

main9004A-11380iA35#202303

47101HBOLT, BRAKE PEDAL STOP, NO.2

main9004A-11381iA35#202303

47121PAD, BRAKE PEDAL

main47121-BZ070iA35#..CVT202303

main47121-BZ080iA35#..5F202303-202412

main47121-BZ081iA35#..5F202501

47124SHAFT, BRAKE PEDAL

main9004A-10281iA35#202303

47264APIN(FOR PUSH ROD)

main90042-40151iA35#202303

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90044-68076iA35#202303

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-BZ620iA35#..RHD202303

main55106-BZ630iA35#..LHD202303

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004A17260

main9004A-17260

9004A56112

main9004A-56112

14 parts on this diagram · 2 diagrams in section
