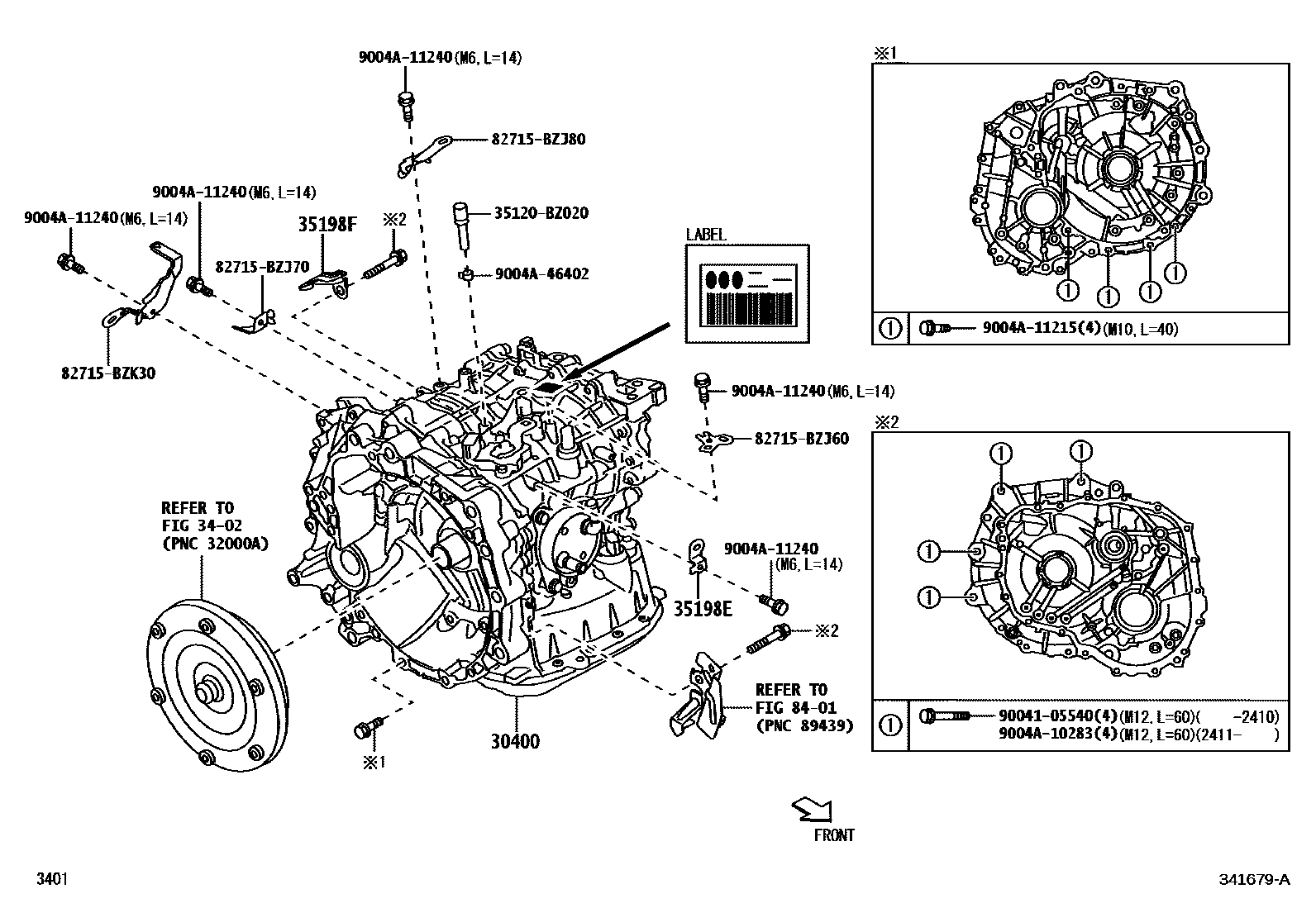

TRANSAXLE ASSY(CVT)

0001 1TRANSAXLE ASSY 0002 1TRANSAXLE ASSY 0003 1INNER PARTS 0004 1INNER PARTS 0005 1VALVE BODY ASSY

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-BZ050iA350..CVT202306

UNIT.NO=C11

main30400-BZ060iA351..CVT202303

UNIT.NO=C45

3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)

→ Go to FIG 34-02

35198EBRACKET, WIRE HARNESS CLAMP, NO.1

main82715-BZJ90iA35#..CVT202303

35198FBRACKET, WIRE HARNESS CLAMP

main82715-B2510iA35#..CVT202303

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

35120BZ020BREATHER ASSY, TRANSMISSION

main35120-BZ020

82715BZJ60BRACKET,WIRING HARNESS CLAMP

main82715-BZJ60

82715BZJ70BRACKET,WIRING HARNESS CLAMP

main82715-BZJ70

82715BZJ80BRACKET,WIRING HARNESS CLAMP

main82715-BZJ80

82715BZK30BRACKET,WIRING HARNESS CLAMP

main82715-BZK30

9004105540

main90041-05540

9004A10283

main9004A-10283

9004A11215

main9004A-11215

9004A11240

main9004A-11240

9004A46402

main9004A-46402

15 parts on this diagram · 5 diagrams in section
