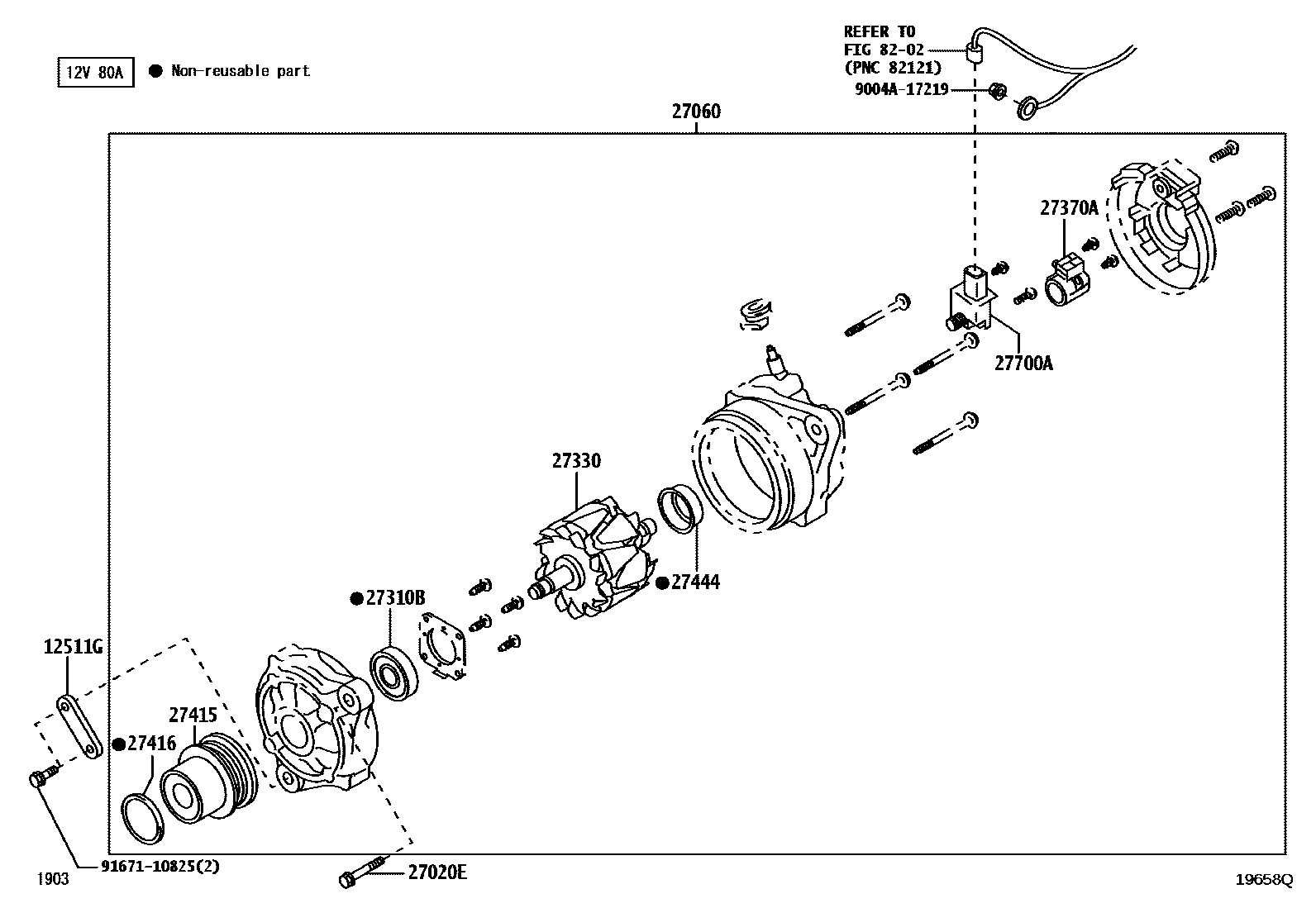

Toyota 811210 — ALTERNATOR
12511GBRACKET, ALTERNATOR, NO.2
27020EBOLT(FOR ALTERNATOR)
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27330ROTOR ASSY, ALTERNATOR
27370HOLDER ASSY, ALTERNATOR BRUSH
27370AHOLDER ASSY, ALTERNATOR BRUSH
27415PULLEY, ALTERNATOR W/CLUTCH
27416CAP, ALTERNATOR PULLEY
27700AREGULATOR ASSY, GENERATOR
8202WIRING & CLAMP
9004A17219
9167110825
14 parts on this diagram · 2 diagrams in section
ALTERNATOR for Toyota 811210
This section contains 19 genuine Toyota parts for the ALTERNATOR system of the Toyota 811210. Key components include: BRACKET, ALTERNATOR, NO.2, BAR, FAN BELT ADJUSTING, SLIDER, FAN BELT ADJUSTING, BOLT(FOR ALTERNATOR), ALTERNATOR ASSY, W/REGULATOR.
