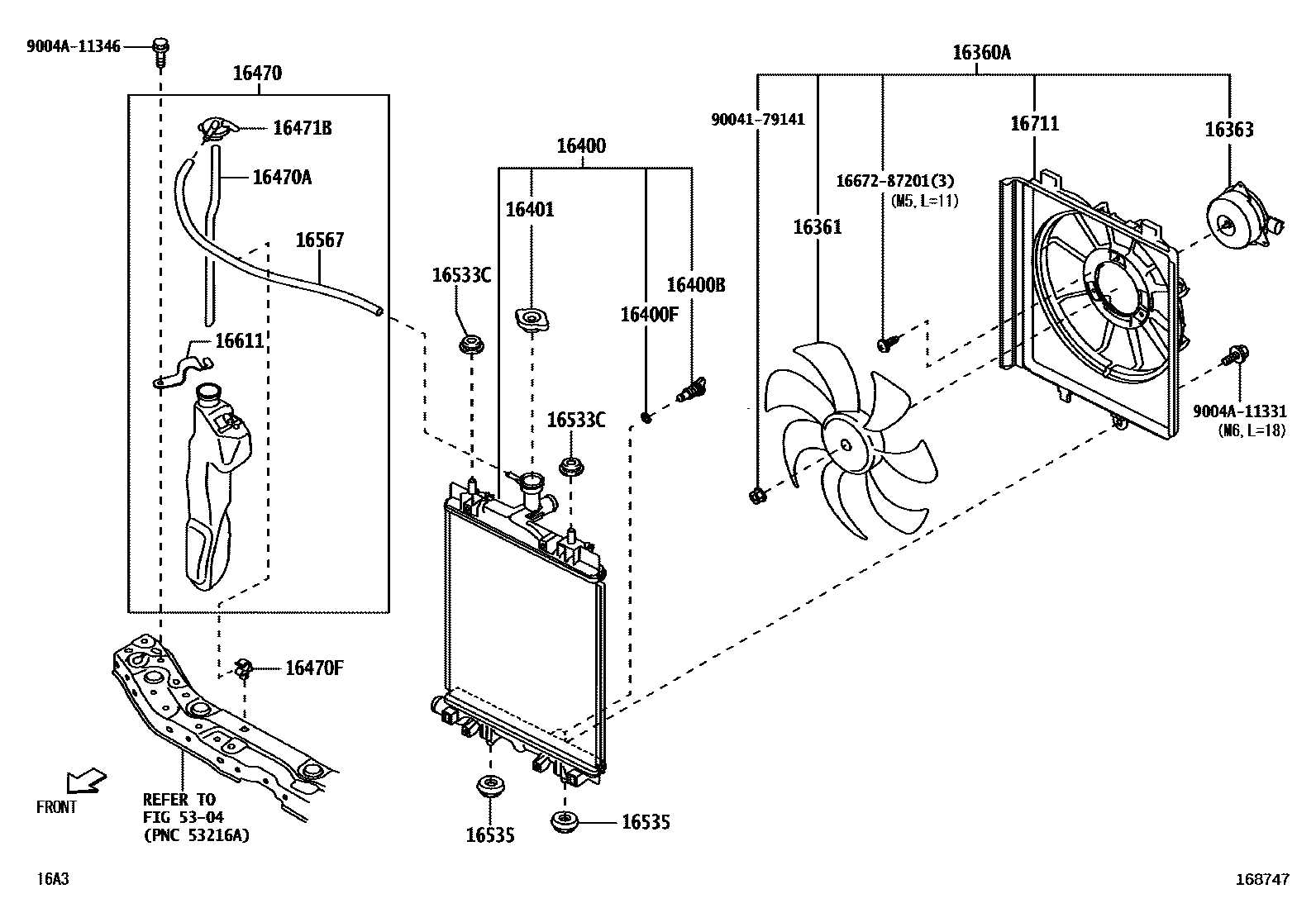

RADIATOR & WATER OUTLET
16360AFAN ASSY, W/MOTOR
16361FAN
16363MOTOR, COOLING FAN
16400RADIATOR ASSY
DESTINATION PACKAGE(ASIA)-RHD ASIA; DESTINATION PACKAGE(OTHER-LATIN AMERICA(GEN-EXP)
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470FCLAMP, RADIATOR RESERVE TANK HOSE
16471BCAP, RESERVE TANK
16533CGROMMET(FOR RADIATOR SUPPORT)
16535SUPPORT, RADIATOR, LOWER
16567HOSE(FOR RADIATOR RESERVE TANK)
16611BRACKET, RADIATOR RESERVE TANK
16711SHROUD, FAN
5304FRONT FENDER APRON & DASH PANEL
1667287201
main16672-87201
9004179141
main90041-79141
9004A11331
main9004A-11331
9004A11346
main9004A-11346
21 parts on this diagram · 7 diagrams in section
