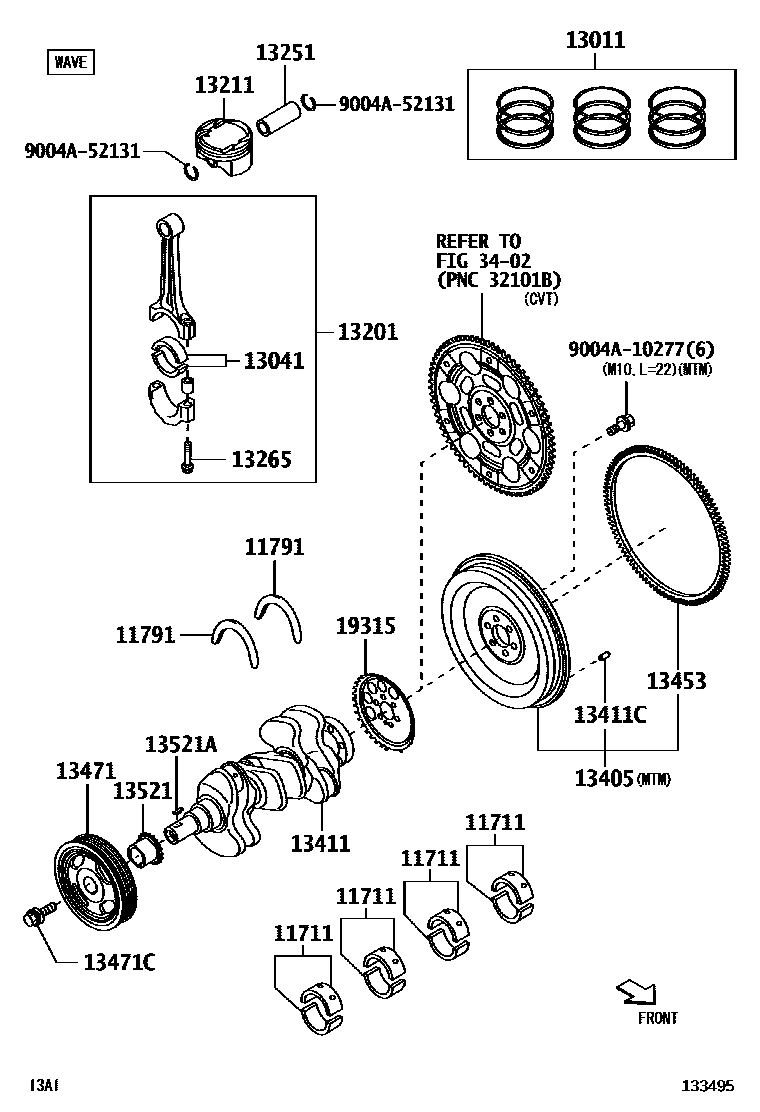

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK2
MARK3
MARK4
MARK5
REPAIR,U/S 0.25
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
STD
O/S 0.125,REPAIR
O/S 0.25,REPAIR
13041BEARING, CONNECTING ROD
MARK 1
MARK 2
MARK 3
MARK1
MARK2
MARK3
REPAIR,U/S 0.10
13201ROD SUB-ASSY, CONNECTING
MARK A
MARK B
13211PISTON
MARK A
MARK B
MARK A
MARK B
13251PIN, PISTON
MARK A
MARK B
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
13453GEAR, FLYWHEEL RING
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
19315PLATE, CRANK ANGLE SENSOR, NO.1
3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)
9004A10277
main9004A-10277
9004A52131
main9004A-52131
20 parts on this diagram · 2 diagrams in section
