Toyota 811210 — MOUNTING

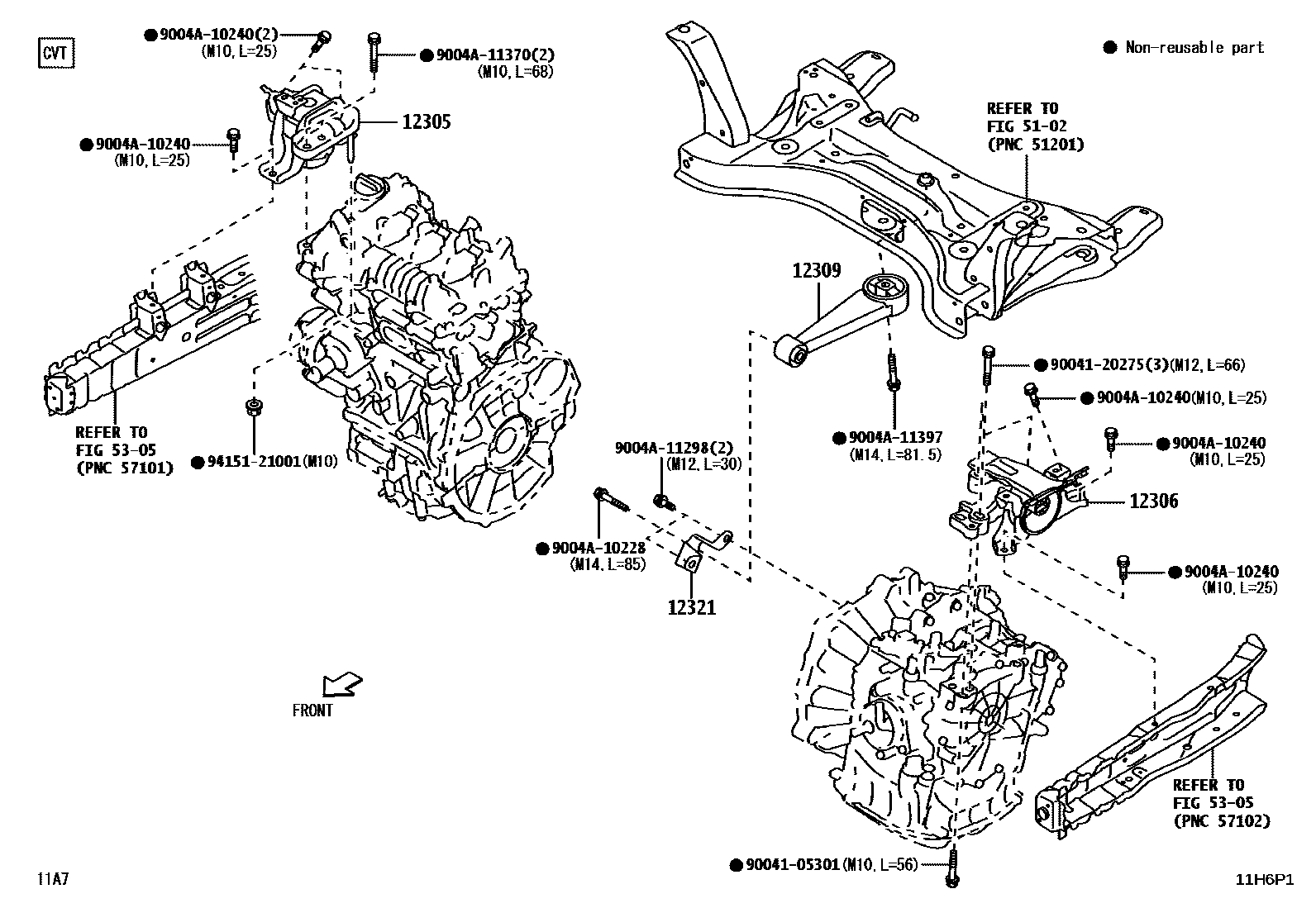

Parts diagram
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-BZ120
12305-BZ320
12305-BZ430
12305-BZ440
12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH
12306-BZ320
12306-BZ340
12306-BZ350
12306-BZ460
12309ROD SUB-ASSY, ENGINE MOVING CONTROL
12309-BZ120
12309-BZ270
12309-BZ350
12309-BZ360
12321BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-BZ360
5102SUSPENSION CROSSMEMBER & UNDER COVER
→ Go to FIG 51-02
5305FLOOR SIDE MEMBER
→ Go to FIG 53-05
9004105301
90041-05301
9004120275
90041-20275
9004A10228
9004A-10228
9004A10240
9004A-10240
9004A11298
9004A-11298
9004A11370
9004A-11370
9004A11397
9004A-11397
9415121001
94151-21001

14 parts on this diagram · 2 diagrams in section

MOUNTING for Toyota 811210

This section contains 15 genuine Toyota parts for the MOUNTING system of the Toyota 811210. Key components include: INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, INSULATOR SUB-ASSY, ENGINE MOUNTING, LH, ROD SUB-ASSY, ENGINE MOVING CONTROL, BRACKET, ENGINE MOUNTING, REAR, NO.1, SUSPENSION CROSSMEMBER & UNDER COVER.
