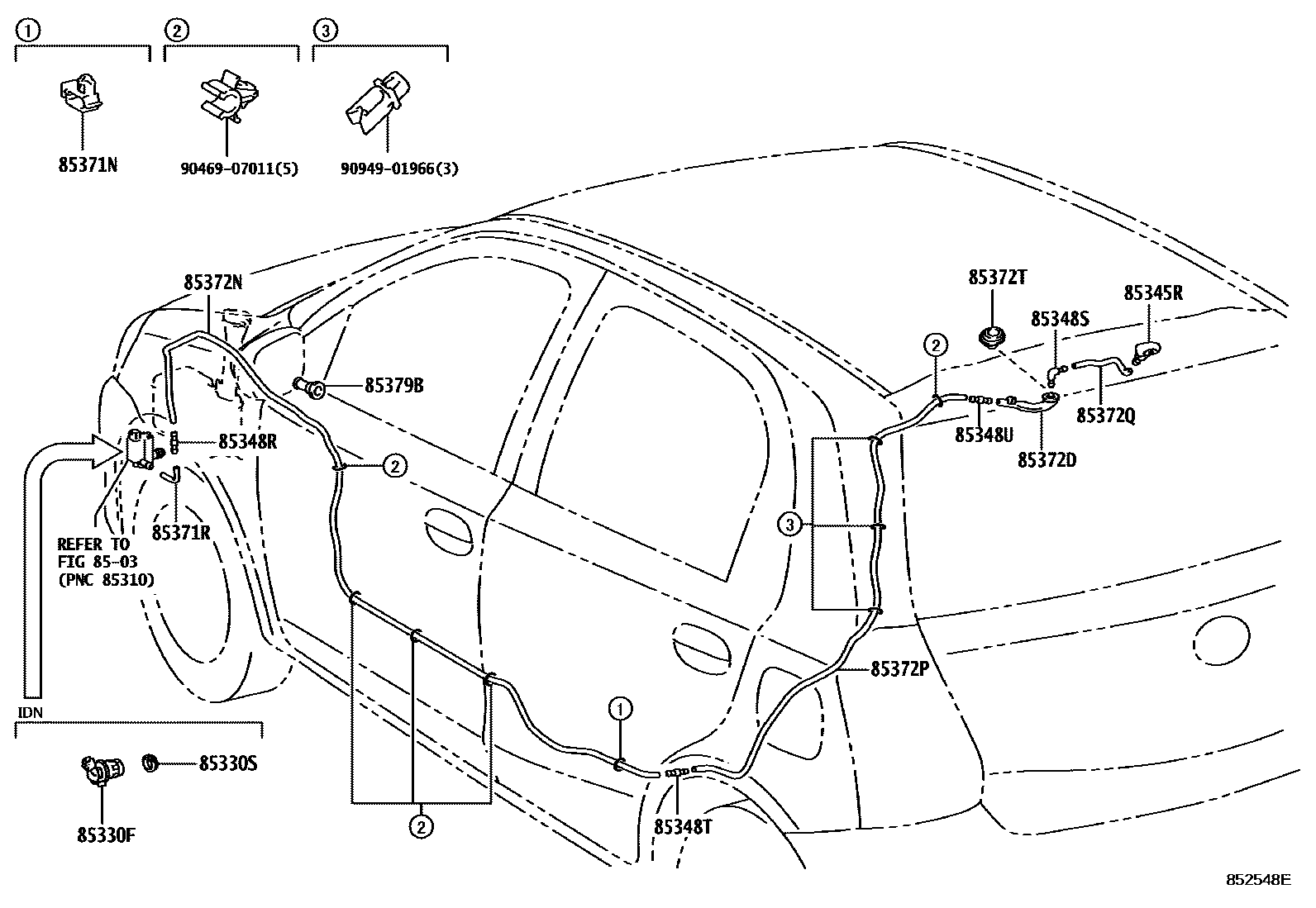

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60160iNGK10..(G,V)..IDN201303-201712

85330SBUSH, REAR WASHER JAR

main85336-60300iNGK10..(G,V)..IDN201303-201712

85345RNOZZLE, REAR WASHER

main85391-0D020iNGK10..(G,V)..IDN201012

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iNGK10..(G,V)..IDN201303

main85375-0D210iNGK10..V;NGK15..5D..G201012-201303

85348SJOINT, REAR WASHER ELBOW, NO.1

main85395-0D070iNGK10..V;NGK15..5D..G201012-201303

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iNGK10..(G,V)..IDN201303

main85375-0D210iNGK12..STD;NGK12..G..IND201409

85348UJOINT, REAR WASHER HOSE, NO.3

main85349-89122iNGK10..(G,V)..IDN201303

main85375-0D210iNGK12..G..SA;NGK10,12,NUK10..(SUVG,SUVV,V)..(IND,SA)201303

85371NCLAMP, REAR WASHER HOSE

main53614-0D030supersedes 53614-74010iNGK12;NGK10,NUK10..(SUVG,SUVV,V)..IND201410

LOCAL SOURCED PARTS

main53614-74010iNGK10..V;NGK15..5D..G201012-201303

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90068-33206iNGK10..(G,V)..IDN201303-201712

L=100

main90069-46051iNGK10..V;NGK15..5D..G201012-201303

L=100

85372DGROMMET, REAR WASHER HOSE

main85372-20040iNGK12..G..SA;NGK10,12,NUK10..(SUVG,SUVV,V)..(IND,SA)201303

main85373-0D080iNGK10..(G,V)..IDN201403

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90068-33205iNGK10..(G,V)..IDN201303

L=2550

main90069-46050iNGK12..G..SA;NGK10,12,NUK10..(SUVG,SUVV,V)..(IND,SA)201303

L=2550

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90068-33204iNGK10..(G,V)..IDN201303

L=2000

main90069-46055iNGK10..V;NGK15..5D..G201012-201303

L=2000

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90069-46054iNGK10..V;NGK15..5D..G201012-201303

L=170

85372TGROMMET, WASHER

main85372-20020iNGK12..STD;NGK12..G..IND201409

85379BGROMMET, WASHER, A

main85379-12850iNGK10..(G,V)..IDN201303

main90069-50003iNGK10..V;NGK15..5D..G201012-201303

9046907011

main90469-07011

9094901966

main90949-01966

18 parts on this diagram · 1 diagram in section
