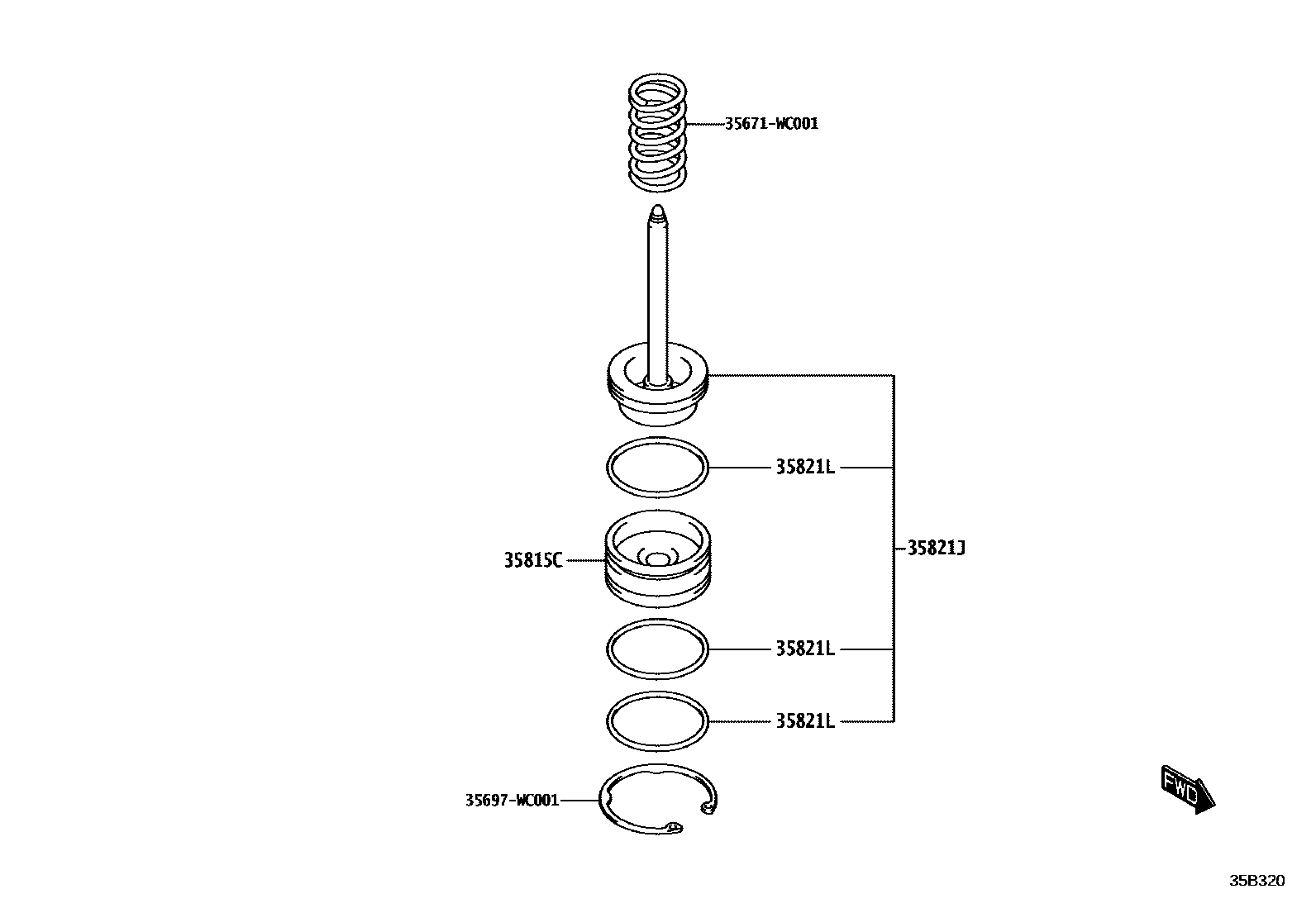

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35815CCOVER, BRAKE PISTON
POS.72; POS.74; POS.81
35821JPISTON, B-1 BRAKE
POS.72; POS.74; POS.81
35821LRING, O(FOR B-1 BRAKE PISTON)
POS.72,NO.1; POS.72,NO.2; POS.74,NO.1; POS.74,NO.2; POS.81,NO.1; POS.81,NO.2
35671WC001PLATE, BRAKE CUSHION
main35671-WC001
35697WC001RING, TRANSAXLE OIL SEAL
main35697-WC001
5 parts on this diagram · 3 diagrams in section
