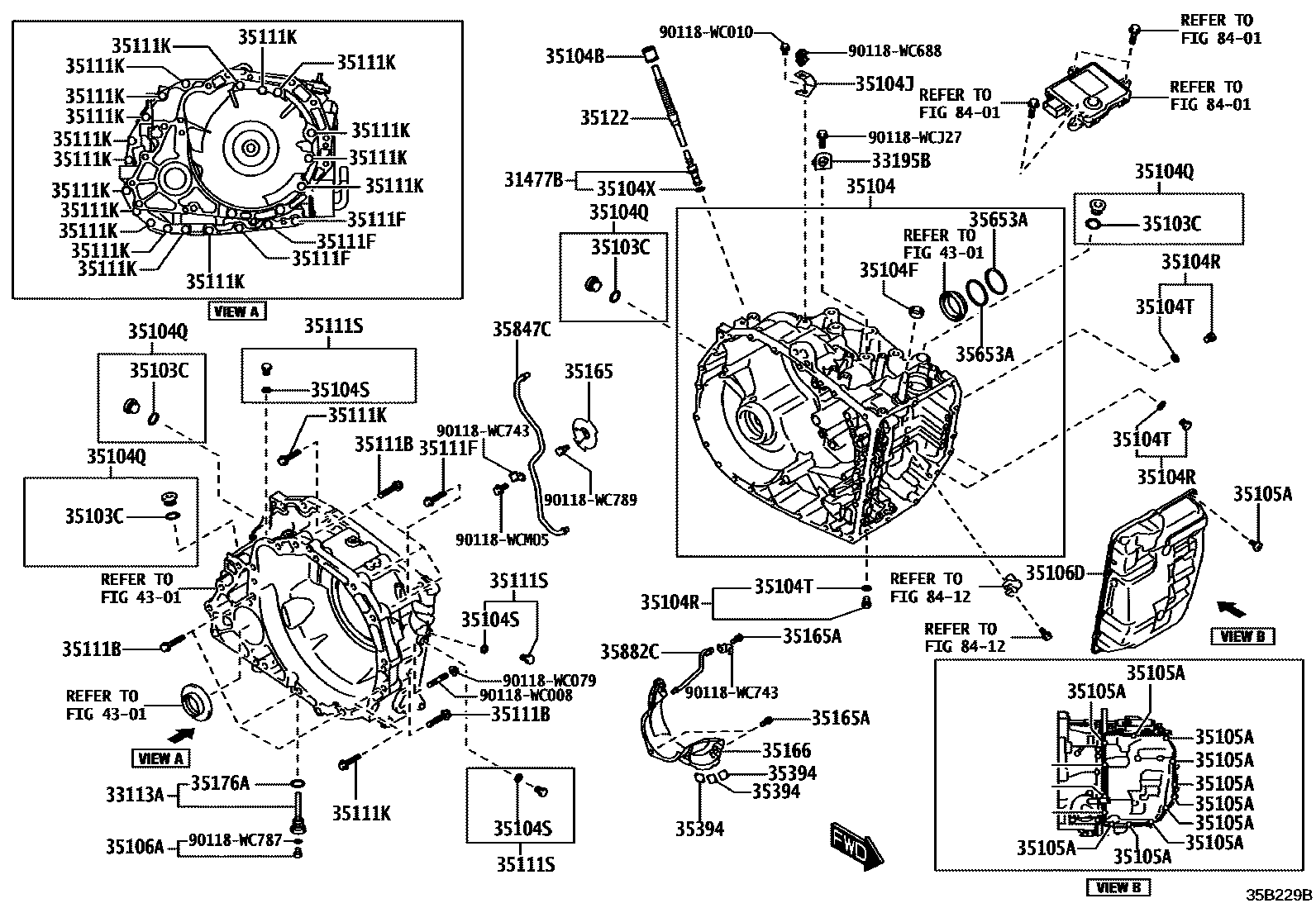

TRANSMISSION CASE & OIL PAN (ATM)

31477BPLUG, BREATHER(FOR HV MOTOR ASSY)

main31477-WC001iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

33113APLUG, DRAIN(FOR HV MOTOR ASSY)

main90118-WCK57iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

33195BHANGER, TRANSMISSION CASE

main33195-WC007iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35103CRING, O

main90118-WCL91×2iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-WC003iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35104BPLUG, BREATHER, NO.1 (ATM)

main90118-WC699iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35104FSEAL, OIL (FOR TRANSAXLE CASE)

main90118-WC760iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35104JBRACKET, BREATHER PLUG HOSE

main90118-WCK60iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90118-WCK59×2iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90118-WCK78×4iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90118-WC787×3iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90118-WC787×4iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35104XRING, O (FOR BREATHER PLUG)

main90118-WCL88iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35105ABOLT, STUD (FOR TRANSMISSION CASE SIDE COVER)

main90118-WCL87×13iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35106APLUG SUB-ASSY, DRAIN (ATM)

main33113-WC001iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-WC003iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35111BBOLT (FOR TRANSMISSION HOUSING & ENGINE SETTING)

main90118-WC658×7iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90118-WC744×4iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90118-WCK62×18iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35111SPLUG (FOR TRANSMISSION HOUSING)

main90118-WCK78×3iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main35122-WC001iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35165PLATE, TRANSMISSION CASE, NO.1

main35165-WC003iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)

main90118-WC789×3iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35166PLATE, TRANSMISSION CASE, NO.3

main33176-WC001iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35176ARING, O (FOR WIRE HARNESS CAP)

main90118-WCM43iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-WC003×3iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35653ARING, DIRECT CLUTCH DRUM OIL SEAL

main90118-WCM85×2iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35847CTUBE, TRANSMISSION LUBE APPLY

main35847-WC001iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

35882CTUBE, DIFFERENTIAL GEAR LUBE APPLY

main35882-WC001iFG231X1; FG231XD; FG232X4202401

POS.72; POS.74; POS.81

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8412ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-12

90118WC008

main90118-WC008

90118WC010

main90118-WC010

90118WC079

main90118-WC079

90118WC688

main90118-WC688

90118WC743

main90118-WC743

90118WC787

main90118-WC787

90118WC789

main90118-WC789

90118WCJ27

main90118-WCJ27

90118WCM05

main90118-WCM05

41 parts on this diagram · 1 diagram in section
