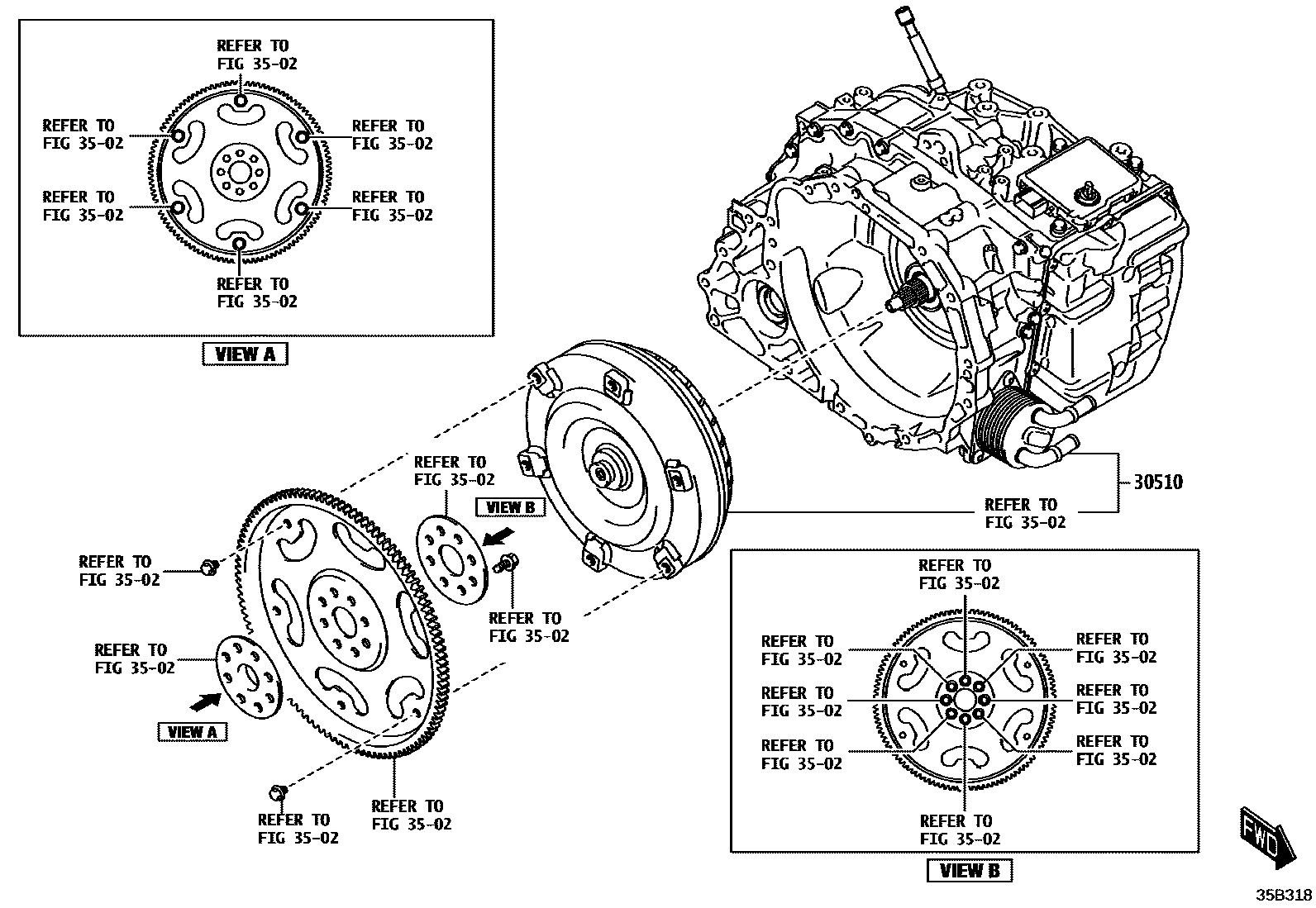

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

30510TRANSAXLE ASSY, AUTOMATIC W/TORQUE CONVERTER

main30510-WC004iFG211X1; FG211XD; FG211XF; FG211XN; FG211XQ; FG212X4; FG212XK; FG212XS202208

POS.18; POS.19; POS.20; POS.31; POS.32; POS.5; POS.6; POS.7

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

2 parts on this diagram · 1 diagram in section
