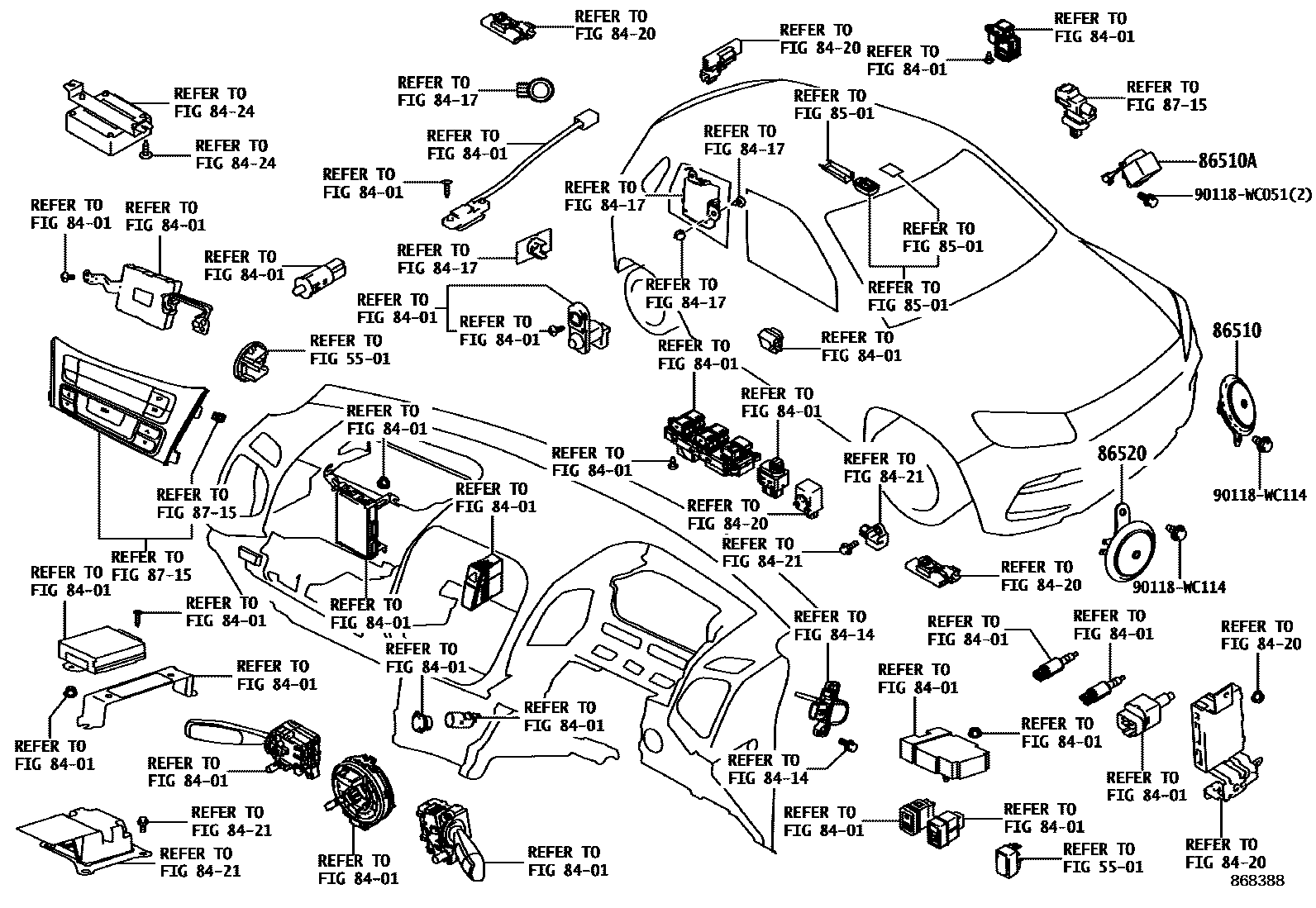

HORN

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

8421AIR BAG

→ Go to FIG 84-21

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

8501WINDSHIELD WIPER

→ Go to FIG 85-01

86510HORN ASSY, HIGH PITCHED

main86510-WC006iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

86510AHORN ASSY, SECURITY

main86560-WC002iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

86520HORN ASSY, LOW PITCHED

main86510-WC005iK15B..4FC..H; K15B..4FC..M; K15B..4FC..P; K15B..5F..H; K15B..5F..M; K15B..5F..P202010

POS.1; POS.2; POS.4; POS.6; POS.7; POS.8

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

90118WC051

main90118-WC051

90118WC114

main90118-WC114

14 parts on this diagram · 1 diagram in section
