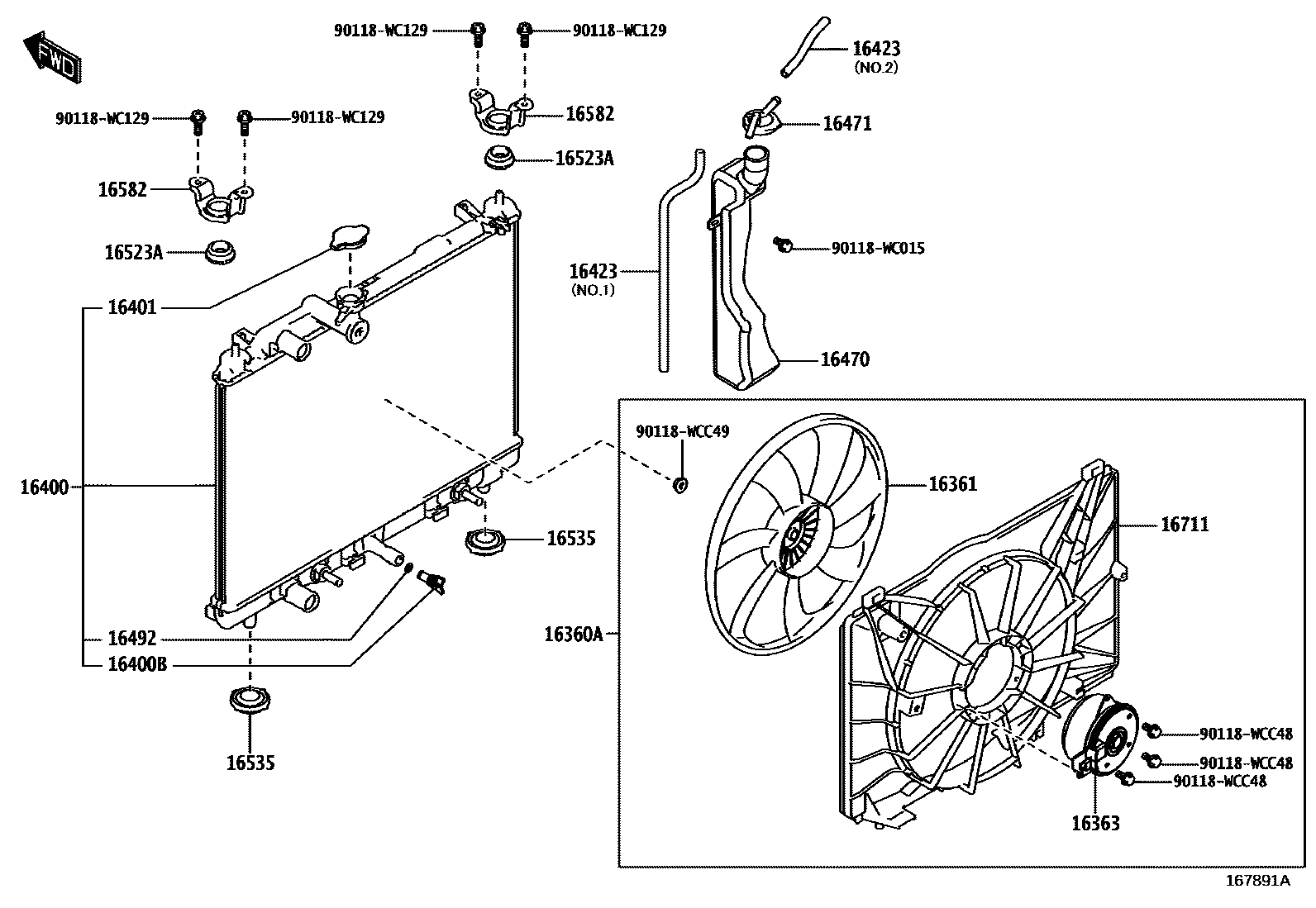

RADIATOR & WATER OUTLET

0001 1 0002 1

16360AFAN ASSY, W/MOTOR

16361FAN

main16361-WC002

16363MOTOR, COOLING FAN

main16363-WC003

16400RADIATOR ASSY

main16417-WC001

main16400-WC003

main16400-WC004

16400BPLUG, RADIATOR DRAIN COCK

16401CAP SUB-ASSY, RADIATOR

main16401-WC001

16423HOSE, RADIATOR TANK

main16377-WC002

main90118-WCA13

16470TANK ASSY, RADIATOR RESERVE

main16470-WC002

16471CAP SUB-ASSY, RESERVE TANK

main16471-WC001

16492RING, O(FOR RADIATOR RESERVE TANK COCK)

main16492-WC001

16523ACUSHION, RADIATOR SUPPORT

16535SUPPORT, RADIATOR, LOWER

main90118-WC349

16582BRACKET, RADIATOR, NO.1

main90118-WCA55

16711SHROUD, FAN

main16711-WC002

90118WC015

main90118-WC015

90118WC129

main90118-WC129

90118WCC48

main90118-WCC48

90118WCC49

main90118-WCC49

18 parts on this diagram · 2 diagrams in section
