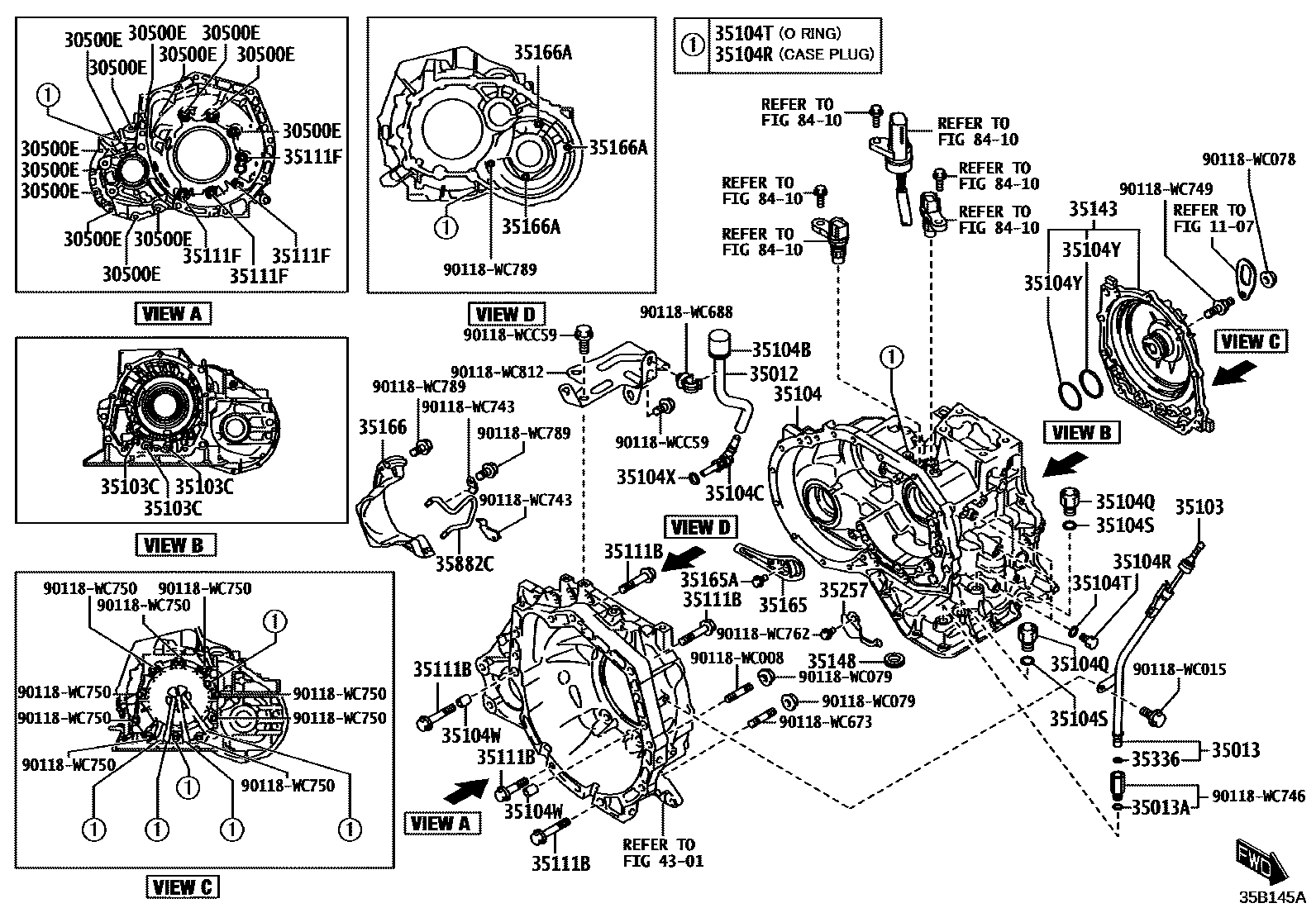

TRANSMISSION CASE & OIL PAN (ATM)

1107MOUNTING

→ Go to FIG 11-07

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90118-WC744×13i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35012HOSE SUB-ASSY, TRANSMISSION BREATHER

main90118-WC697i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-WC004i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35013ARING, O(FOR TRANSMISSION OIL FILLER TUBE)

main35178-WC003i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-WC004i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35103CRING, O

main90118-WC786×3i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-WC001i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35104BPLUG, BREATHER, NO.1 (ATM)

main90118-WC699i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35104CPLUG, BREATHER, NO.2 (ATM)

main90118-WC695i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90118-WC745×2i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90118-WC788×11i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90118-WC786×2i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90118-WC787×11i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90118-WC066×2i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35104XRING, O (FOR BREATHER PLUG)

main90118-WC784i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35104YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main35617-WC001×2i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35111BBOLT (FOR TRANSMISSION HOUSING & ENGINE SETTING)

main90118-WC658×5i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90118-WC694×4i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35143COVER, TRANSMISSION CASE, REAR

main33102-WC001i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35148GASKET, GOVERNOR APPLY, NO.1

main90118-WC747i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35165PLATE, TRANSMISSION CASE, NO.1

main35165-WC002i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)

main90118-WC762i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35166PLATE, TRANSMISSION CASE, NO.3

main35165-WC001i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35166ABOLT (FOR TRANSMISSION CASE PLATE NO.3)

main90118-WC789×3i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35257PLATE, OIL GUIDE

main33199-WC001i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90118-WCA10i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

35882CTUBE, DIFFERENTIAL GEAR LUBE APPLY

main33124-WC003i202203-202310

POS.49; POS.50; POS.51; POS.52; POS.53; POS.65; POS.66; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

90118WC008

main90118-WC008

90118WC015

main90118-WC015

90118WC078

main90118-WC078

90118WC079

main90118-WC079

90118WC673

main90118-WC673

90118WC688

main90118-WC688

90118WC743

main90118-WC743

90118WC746

main90118-WC746

90118WC749

main90118-WC749

90118WC750

main90118-WC750

90118WC762

main90118-WC762

90118WC789

main90118-WC789

90118WC812

main90118-WC812

90118WCC59

main90118-WCC59

44 parts on this diagram · 2 diagrams in section
