TRANSMISSION CASE & OIL PAN (ATM)

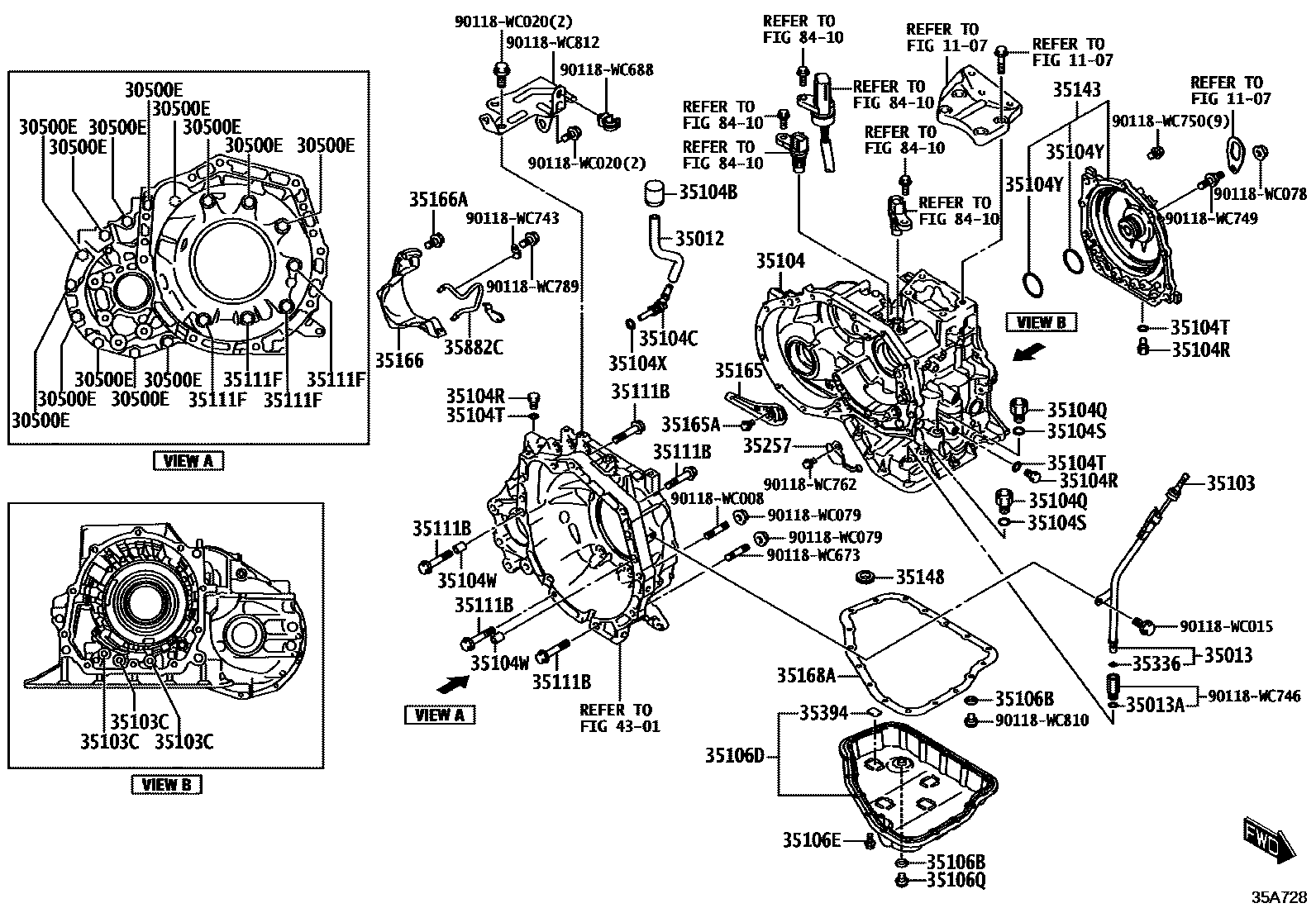

Parts diagram
1107MOUNTING
→ Go to FIG 11-07
30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)
main90118-WC744×13i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35012HOSE SUB-ASSY, TRANSMISSION BREATHER
main90118-WC697i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER
main35013-WC002i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35013ARING, O(FOR TRANSMISSION OIL FILLER TUBE)
main35178-WC003i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
main35103-WC004i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35103CRING, O
main90118-WC786×3i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION
main35104-WC001i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35104BPLUG, BREATHER, NO.1 (ATM)
main90118-WC699i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35104CPLUG, BREATHER, NO.2 (ATM)
main90118-WC695i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
main90118-WC745×2i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35104RPLUG, NO.2 (FOR TRANSAXLE CASE)
main90118-WC788×11i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
main90118-WC786×2i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)
main90118-WC787×11i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)
main90118-WC066×2i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35104XRING, O (FOR BREATHER PLUG)
main90118-WC784i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35104YRING, O (FOR AUTOMATIC TRANSMISSION CASE)
main35617-WC001×2i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35106BGASKET, DRAIN PLUG (ATM)
main35178-WC002i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
main35106-WC002i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35106EBOLT (FOR TRANSAXLE OIL PAN)
main90118-WC748×17i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)
main90118-WC696i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35111BBOLT (FOR TRANSMISSION HOUSING & ENGINE SETTING)
main90118-WC658×5i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
main90118-WC694×4i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35143COVER, TRANSMISSION CASE, REAR
main33102-WC001i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35148GASKET, GOVERNOR APPLY, NO.1
main90118-WC747i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35165PLATE, TRANSMISSION CASE, NO.1
main35165-WC002i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)
main90118-WC762i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35166PLATE, TRANSMISSION CASE, NO.3
main35165-WC001i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35166ABOLT (FOR TRANSMISSION CASE PLATE NO.3)
main90118-WC789×3i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN
main35168-WC002i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35257PLATE, OIL GUIDE
main33199-WC001i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)
main90118-WC216i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
main35394-WC003×4i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
35882CTUBE, DIFFERENTIAL GEAR LUBE APPLY
main33124-WC002i202007
POS.31; POS.32; POS.34; POS.39; POS.40; POS.41; POS.42; POS.44; POS.48; POS.49; POS.50; POS.52; POS.54; POS.56
4301FRONT AXLE HOUSING & DIFFERENTIAL
→ Go to FIG 43-01
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
→ Go to FIG 84-10
90118WC008
main90118-WC008
90118WC015
main90118-WC015
90118WC020
main90118-WC020
90118WC078
main90118-WC078
90118WC079
main90118-WC079
90118WC673
main90118-WC673
90118WC688
main90118-WC688
90118WC743
main90118-WC743
90118WC746
main90118-WC746
90118WC749
main90118-WC749
90118WC750
main90118-WC750
90118WC762
main90118-WC762
90118WC789
main90118-WC789
90118WC810
main90118-WC810
90118WC812
main90118-WC812
