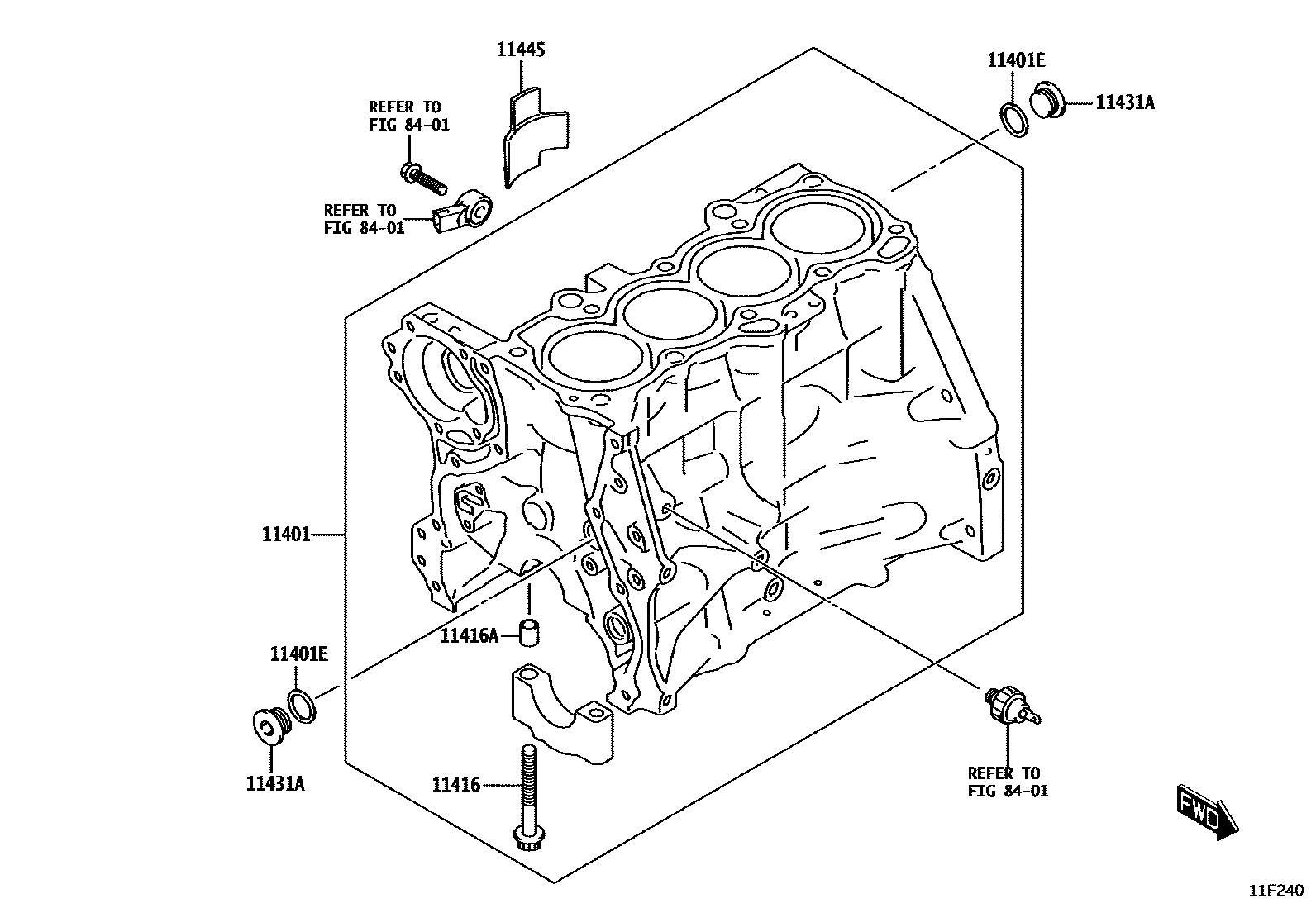

11401BLOCK SUB-ASSY, CYLINDER

main11410-WC002i202007

POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56

11401EGASKET(FOR CYLINDER BLOCK PLUG)

main90118-WC640×2i202007

POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90118-WC297×10i202007

POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90118-WC065×5i202007

POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90118-WC202×2i202007

POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-WC002i202007

POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54; POS.55; POS.56

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01
