ABS & VSC

0001 1 0002 1

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

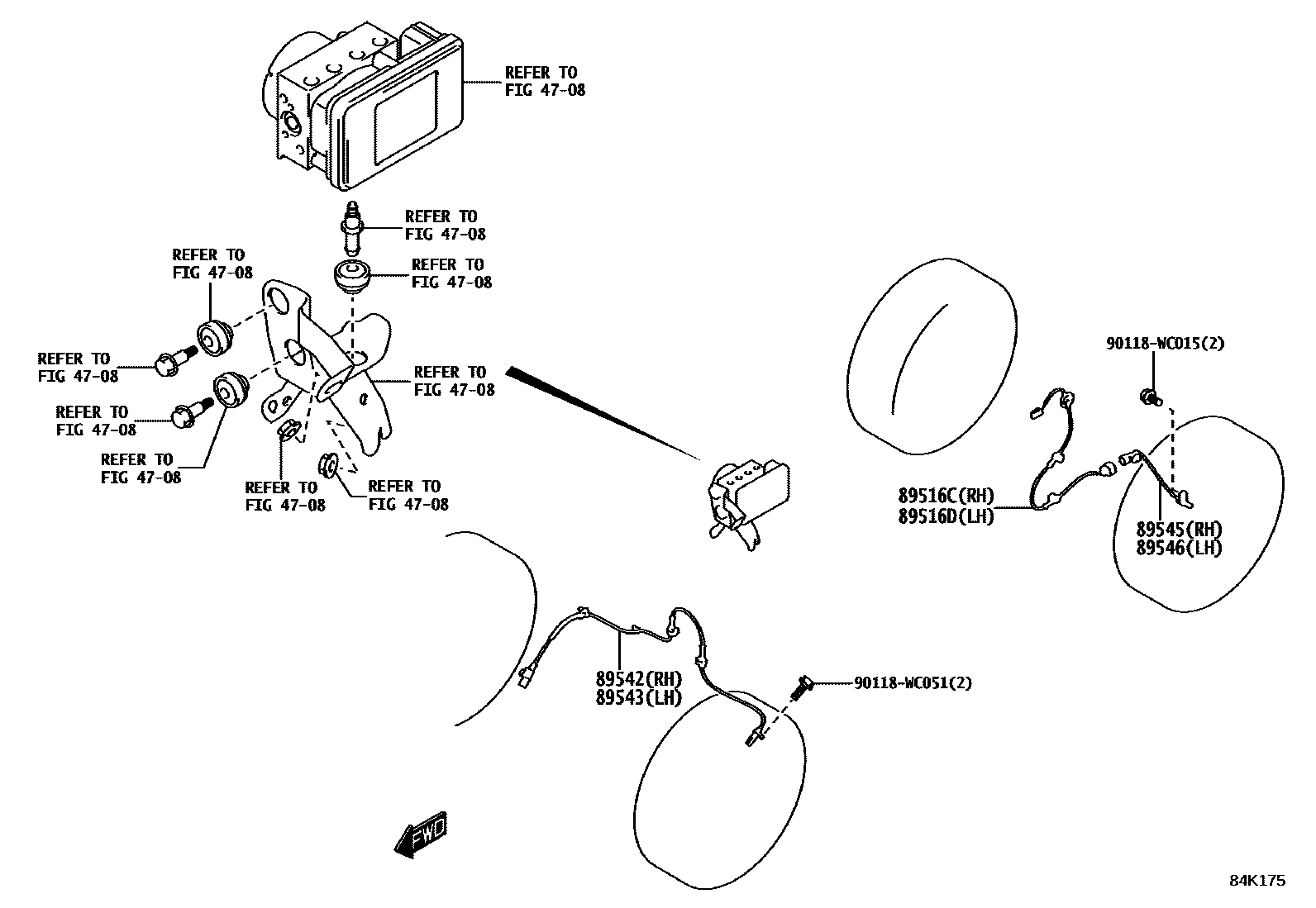

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

89542SENSOR, SPEED, FRONT RH

main89542-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

89543SENSOR, SPEED, FRONT LH

main89543-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

89545SENSOR, SPEED, REAR RH

main89545-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

89546SENSOR, SPEED, REAR LH

main89545-WC001iK12M..5F..V; K12M..CVT..G; K12M..CVT..V; K12N201904

POS.1; POS.3; POS.4; POS.5

90118WC015

main90118-WC015

90118WC051

main90118-WC051

9 parts on this diagram · 2 diagrams in section
